INTRODUCTION TO THE VRX-SMAF
The VRX-SMAF is an array frame designed to be used for suspension of the VRX928LA and VRX915S
loudspeaker systems. The optional array frame kit includes the following items:
• 1 x frame
• 2 x quick release pins
• 2 x drop levers
• 2 x 3/8" shackles
Working Load Limit
The working load limit depends upon the configuration of array frame and speakers being suspended. Please
refer to the "DEPLOYING THE SYSTEM" section of this user guide for maximum allowable load limits when
using the VRX-SMAF frame.
The VRX-SMAF array frame has been specifically designed to work only with the VRX928LA and VRX915S
speakers. Use of the array frames in any manner other than as described in this manual could result in
damage to the frame and pose a risk of injury or death.
424
(16.7)
51
(2.0)
10
(0.38)
25
(1.0)
19
(0.75)
457
(18.0)
127
(5.0)
51
(2.0)
203
(8.0)
51
(2.0)
51
(2.0)
51
(2.0)
51
(2.0)
25
(1.0)
0 13
(0.5)
Dimensions in mm (inches)

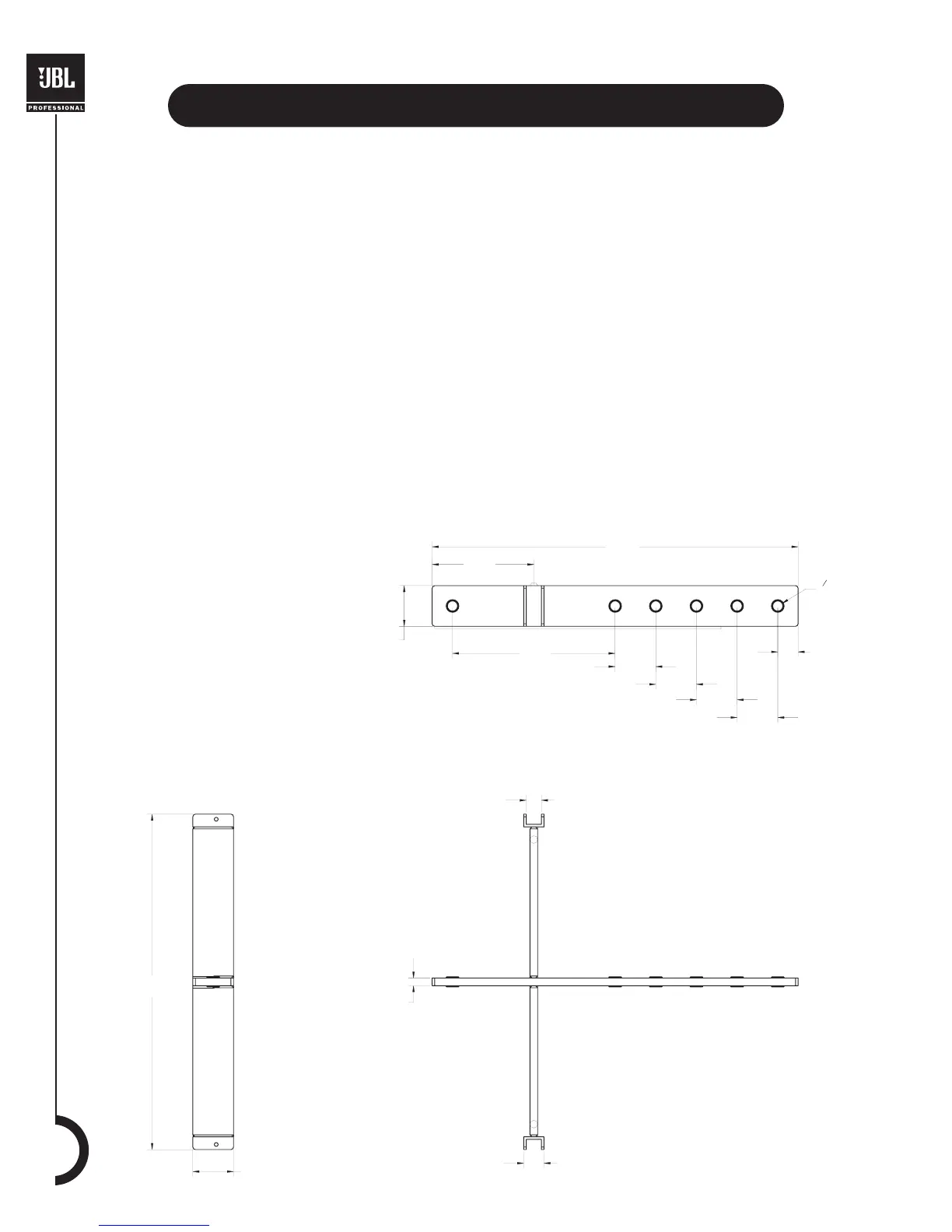

Dimensional Drawings for VRX-SMAF
14

JBL VRX900 Specifications

General

Crossover Modes	Bi-amp
LF Driver	12"
Nominal Impedance	8 ohms
Finish	Black
Input Connectors	Neutrik NL4
