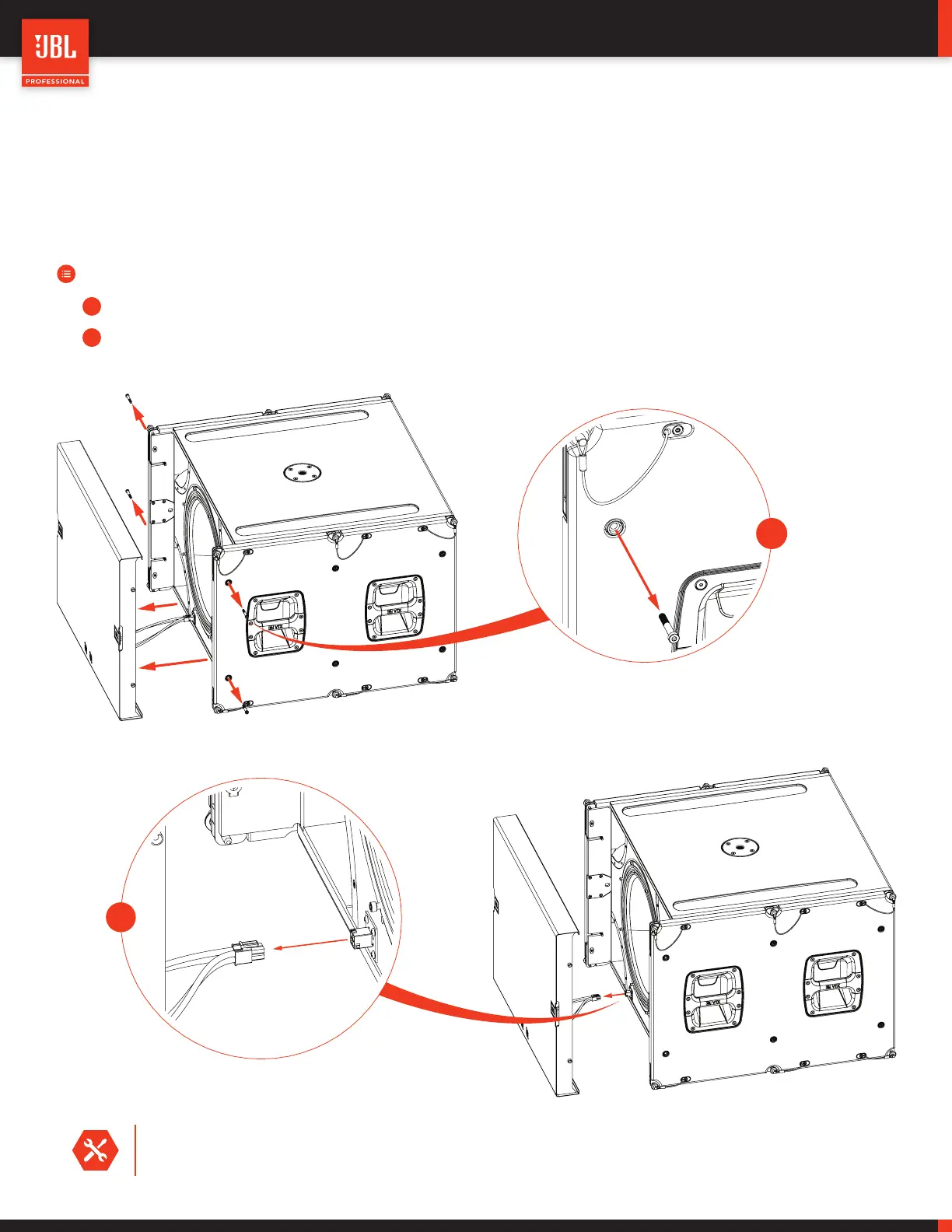

STEPS:
• Remove the 4 x M6 HEX screws holding the grill onto the B18
• Carefully disconnect the Molex
TM
connector which is used to connect the 2 front NL4 connectors to the B18
1
2
TOOLS REQUIRED: A 4mm HEX key is required to remove the four M6 screws holding the grill on the B18. A Phillips
#2 screwdriver is required for removing the four Phillips screws holding the bracket.
8.1 - ROTATING THE DOLLY TABS - FOR USE WITH THE ACC DOLLY
There are two dolly tabs available at the front of the B18 that are used to secure the front face ACC dolly board to the B18. The tabs are
retractable and ship from the factory oriented towards the inside of the B18. This orientation is ideal when the B18s are used with the
vertical transport cart in which case the tabs are not needed. When the B18 is used with front face dolly boards the tabs are rotated so
that the dolly board can be attached to the subwoofer.
1
2
