15 - Engine
12 - Crankshaft
00 - General
15 - 57 9813/9750-1 15 - 57
Remove and Install
Consumables
Description Part No. Size
Cleaner/Degreaser
- General purpose
solvent based parts
cleaner
4104/1557 0.4L
CAUTION This component is heavy. It must only
be removed or handled using a suitable lifting
method and device.
Before Removal
1. This procedure requires service parts. Make
sure you have obtained the correct service parts
before you start, refer to Parts Catalogue.
2. Make sure that the engine is safe to work on. If
the engine has been running, let it cool before
you start the service work.
3. Get access to the engine.
4. Remove the bedplate. Refer to (PIL 15-09).
5. If the pistons and connecting rods have not been
removed, then remove the main bearing caps.
Refer to (PIL 15-12).

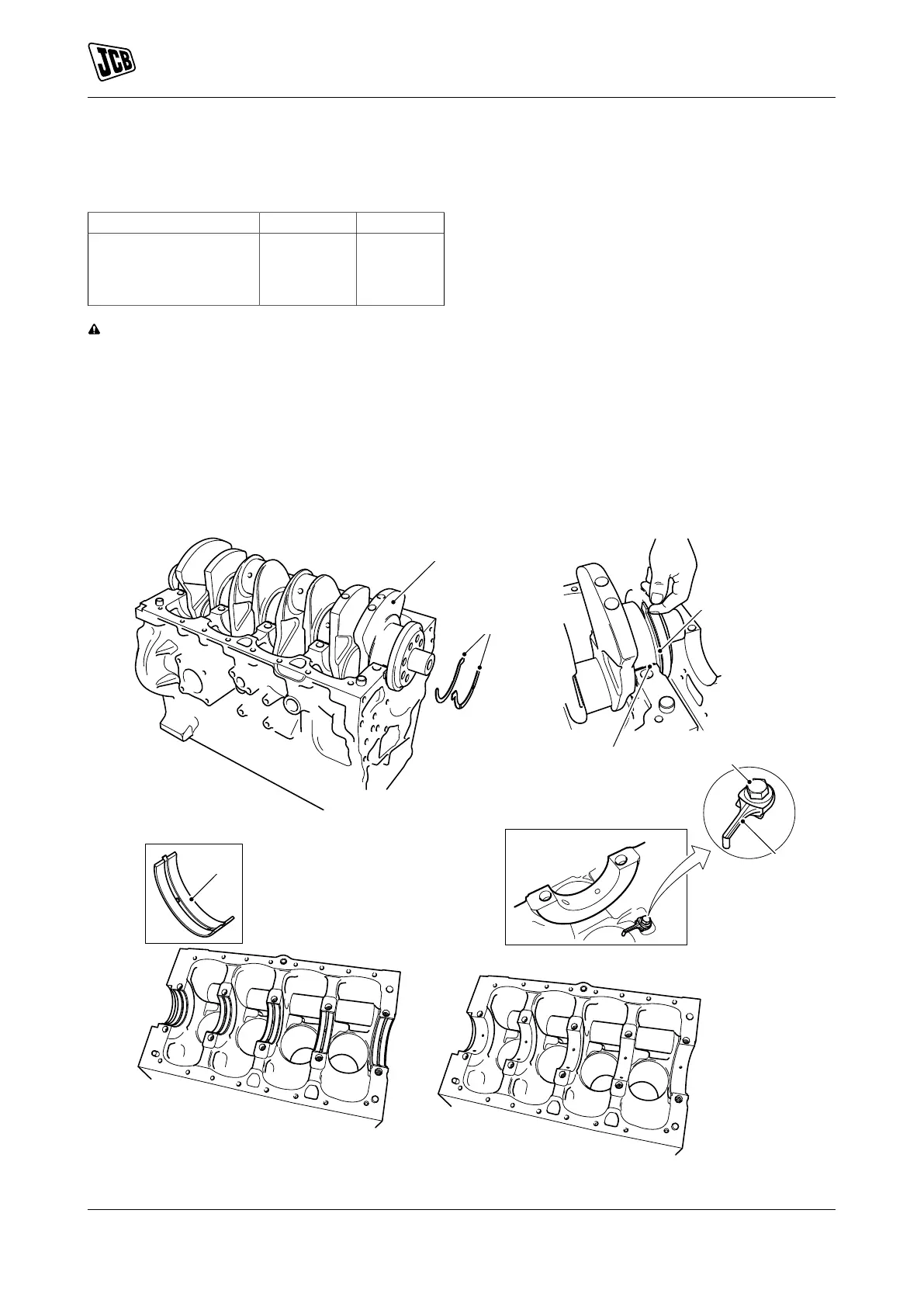

Figure 144.
A Crankshaft B Thrust Washers
To Next Page
