About the Product
Console Switches
19 9821/7050-4 19
Console Switches
General
The installed switches and their positions can change according to the specification of the machine.
Each switch has a graphic symbol to show the function of the switch. Before you operate a switch, make sure
that you understand its function.
The rocker switches have two or three positions (as shown).
If the switch has a backlight, then the graphic symbol illuminates when the ignition switch or side lights are
in the on position.
The light bar illuminates to show that the switch function is active.

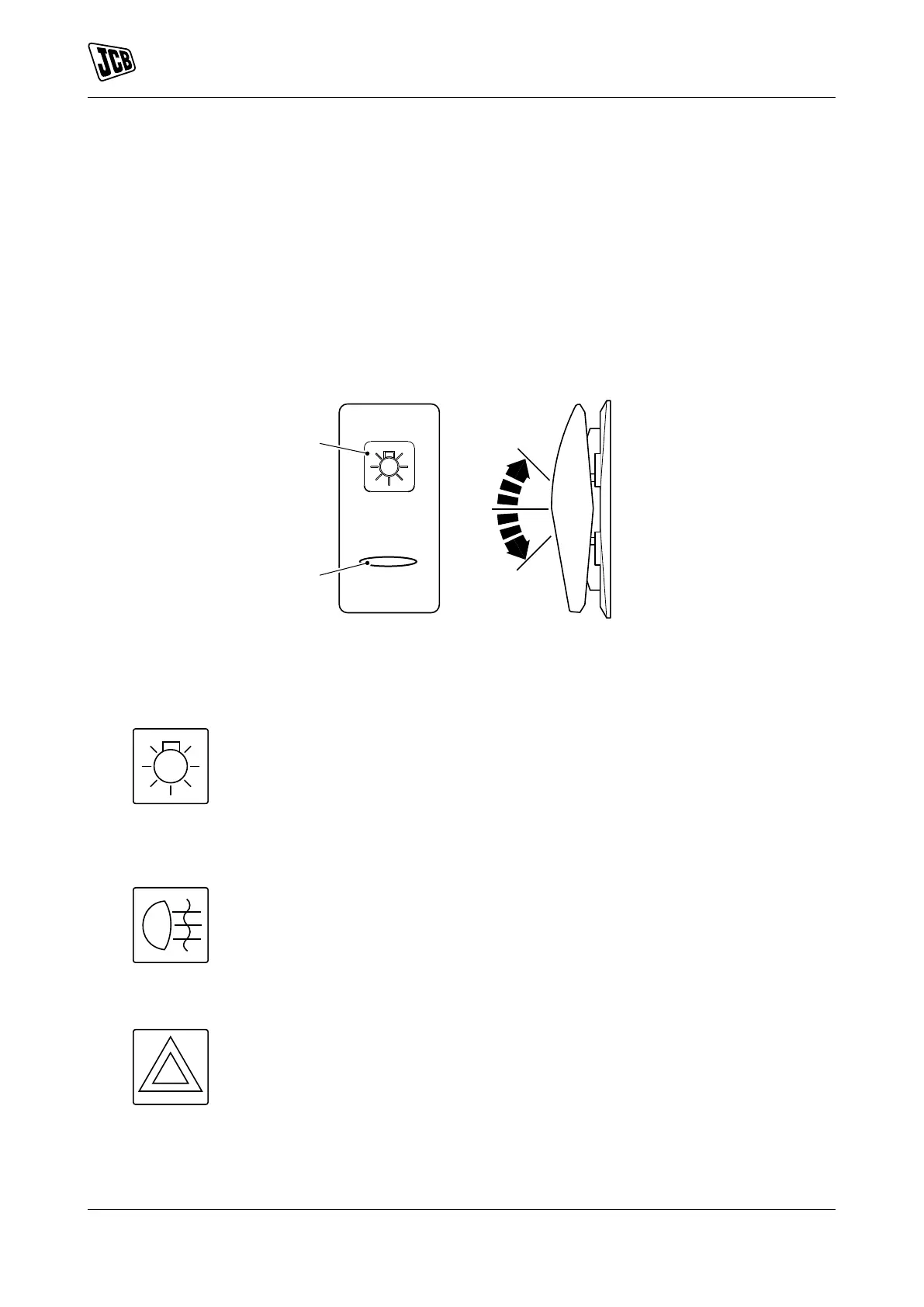

Figure 9.
A Graphic symbol
B Light bar
Road Lights
Three position rocker switch. The switch functions operate when the ignition switch is
in the on and off positions.
Position : 1 = Off
Position : 3 = Side lights on
Position : 2 = Ignition switch in the on position: Headlights on
Position : 2 = Ignition switch in the off position: Side lights on.
Rear Fog Lights
Three position self-centring rocker switch. The switch functions only operate when the
ignition switch and the side lights and headlights are in the on position.
Position : 1 = Off
Position : 3 = Default
Position : 2 = On.
Hazard Warning Lights
Two position rocker switch. The switch functions operate when the ignition switch is
in the on and off positions.
Position : 1 = Off
Position : 2 = On. A light on the instrument panel flashes with the outside lights.
