Section 1 - General Information
Service Tools
Tool Detail Reference Section
1 - 23 1 - 23
9803/4180-08
Section E- Hydraulics

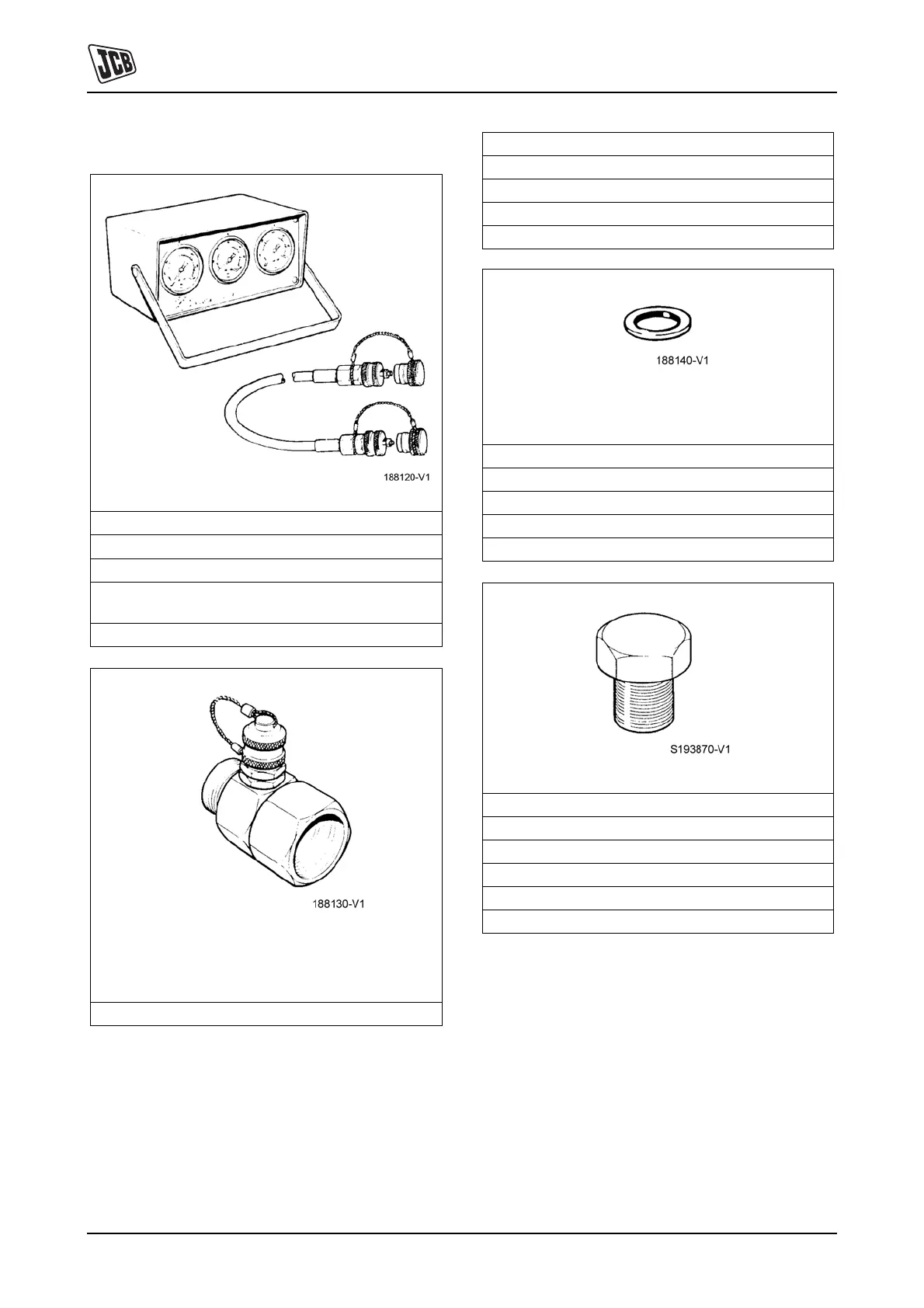

Fig 33. Hydraulic Circuit Pressure test Kit
892/00253 Pressure Test Kit
892/00201 Replacement gauge 0-20 bar (0-300 lbf/in
2
)
892/00202 Replacement gauge 0-40 bar (0-600 lbf/in
2
)
892/00203 Replacement gauge 0-400 bar (0-6000 lbf/
in
2
)
892/00254 Replacement Hose
Fig 34. Pressure Test `T' Adapters
892/00262 1/4 in BSP x 1/4 in F BSP x Test Point
816/55038 3/8 in M BSP x 3/8 in F BSP x Test Point
816/55040 1/2 in M BSP x 1/2 in F BSP x Test Point
892/00263 5/8 in BSP x 5/8 in F BSP x Test Point
892/00264 3/4 in BSP x 3/4 in F BSP x Test Point
892/00265 1 in M BSP x 1 in F BSP x Test Point
Fig 35. Bonded Washers
1406/0011 1/4 in BSP
1406/0018 1/2 in BSP
1406/0014 5/8 in BSP
1406/0021 3/4 in BSP
1406/0029 1.1/4 in BSP
Fig 36. Female Cone Blanking Cap
892/00055 1/4 in BSP
892/00056 3/8 in BSP
892/00057 1/2 in BSP
892/00058 5/8 in BSP
892/00059 3/4 in BSP
892/00060 1 in BSP
