jcb 48Z-1 Quick Start Guide

48Z-1, 51R-1, 55Z-1, 57C-1 548Z-1, 51R-1, 55Z-1, 57C-1 5
Dimensions

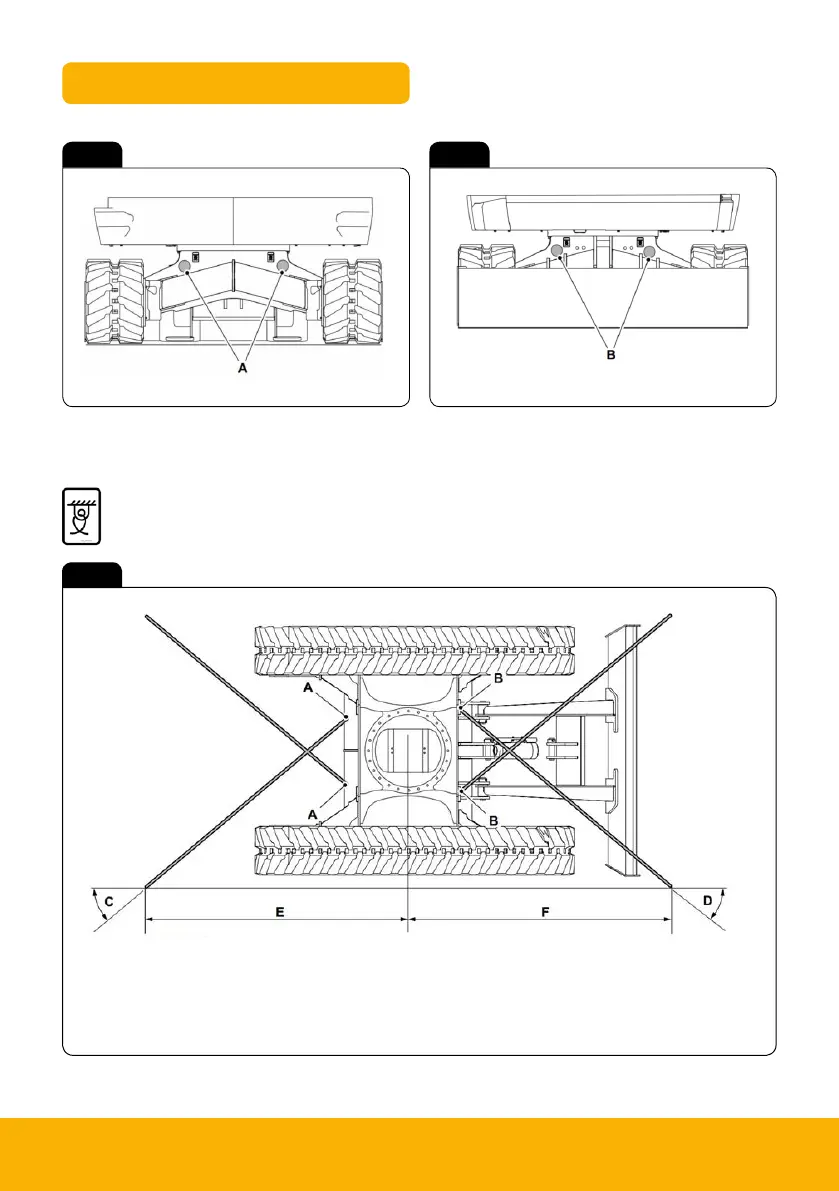

Fig 2
A Rear track tie-down points
Fig 3
B Front track tie-down points
Note: These measurements are based on a 2500mm wide trailer bed. The correct tie down positions
are identified on the machine by their labels.
Fig 4
A Rear track tie-down points
B Front track tie-down points
C Angle = 44.7 ± 5º
D Angle = 43 ± 1.5º
E Length = 2,100 ± 400mm
F Length = 2,200 ± 100mm
Tie Down Position Decal
