jcb 51R-1 Quick Start Guide

6 Please see operator manual for full details.

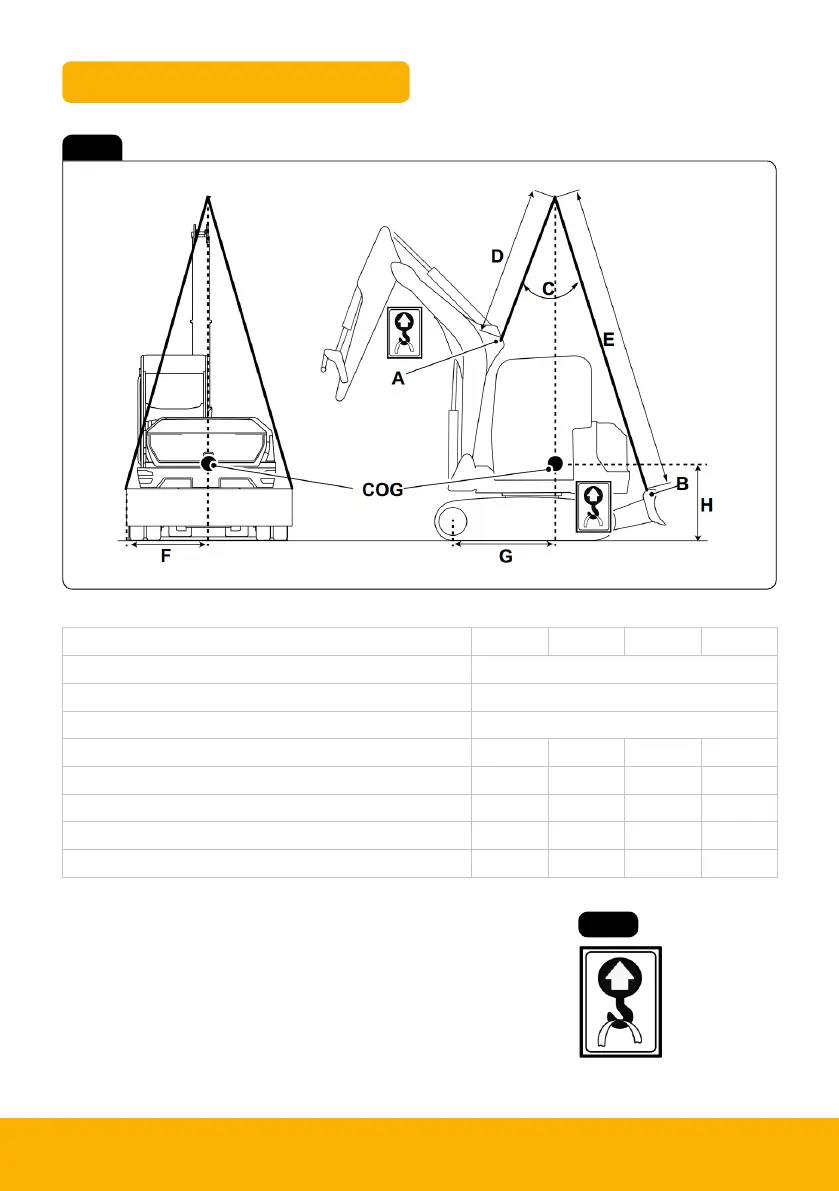

Fig 5
Lifting Points
Description 48Z-1 51R-1 55Z-1 57C-1
A Boom Lift Point
B Dozer Lift Point
C 35°
D mm 2400 2480 2320 2220
E mm 4800 4850 4820 4700
F mm 993 1003 993 955
G mm 769 843 875 972
H mm 947 934 961 859
*COG = Centre of Gravity
The correct lifting positions are identified on the machine by their labels: Lifting point
Position label.
Fig 6
