jcb 51R-1 Quick Start Guide

8 Please see operator manual for full details.
Fig 9
Fig 10

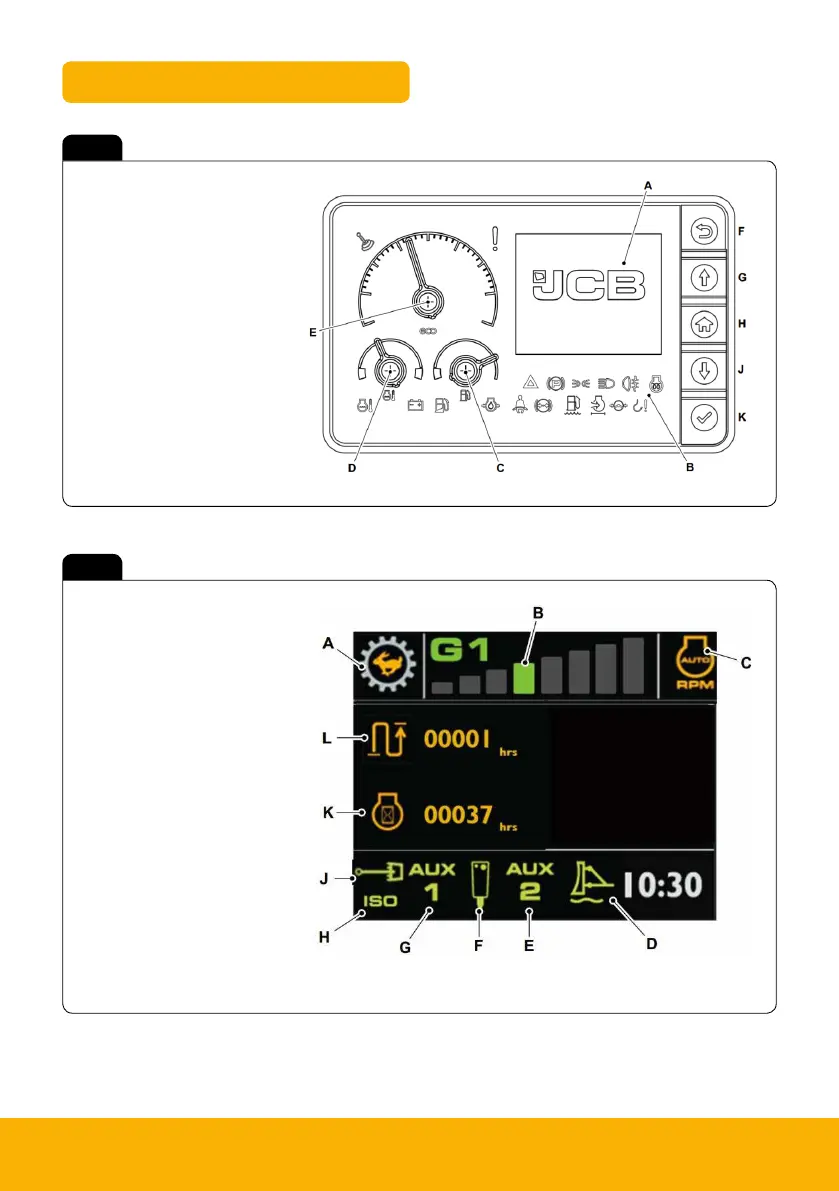

Instrument Panel
A LCD screen
B Warning and indicator lamps
C Fuel level gauge
D Coolant temperature gauge
E Engine speed
F Back button
G Up button
H Home button
J Down button
K Select button
A Travel speed status
B Power band status
C Auto idle status
D Dozer float status
E Low flow aux status
F High flow aux mode
G High flow aux status
H ISO/SAE status
J Swing / aux status
K Engine hours status
L Trip hours status
Green – Active / selected
Orange – Status
Grey – Inactive
