RS T4F Diesel Generator
|
G70RS – G125RS 21
Rotary Switch
3-position voltage selector switch for safe and
quick break and make operation. Lockable with
up to 4 separate padlocks.
B
C
D
A

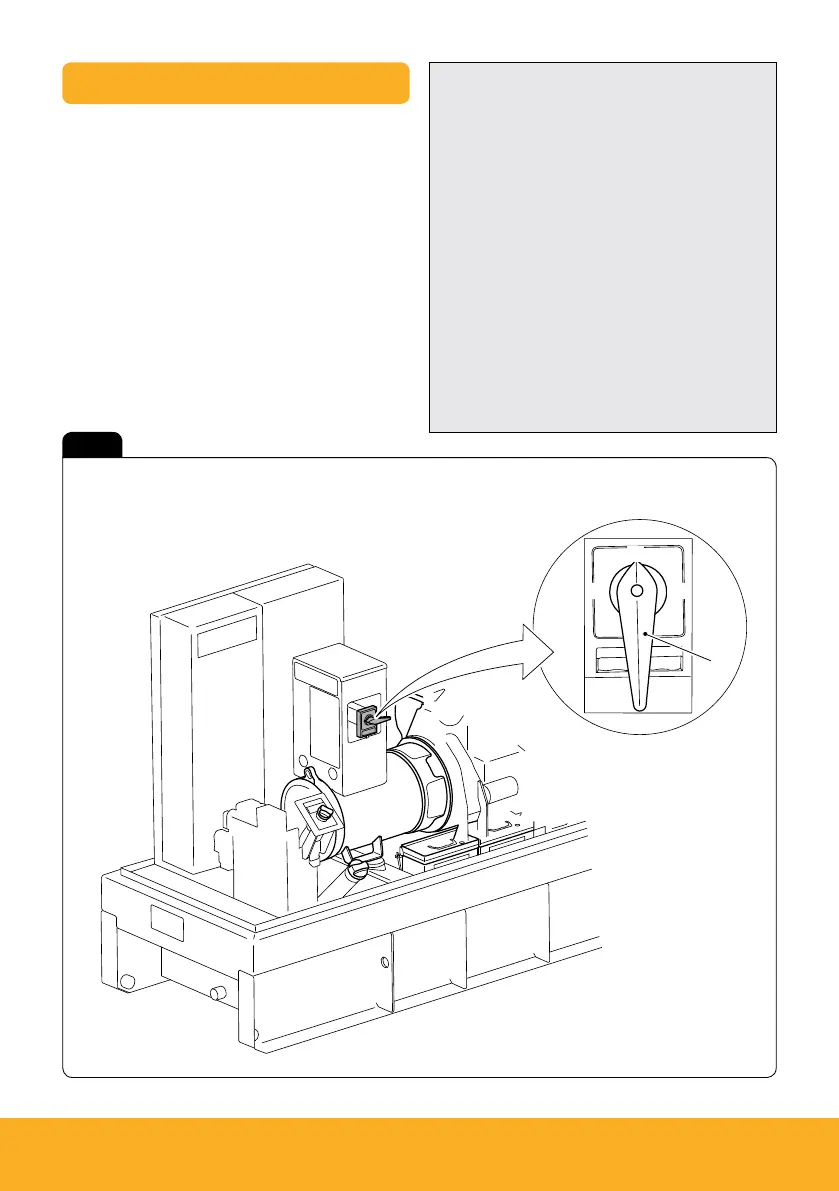

Multi voltage selection (where fitted)
A Voltage control rotary switch
B 480/277V 3Phase
C 208/120V 3phase
D 240/120V 1Phase
Fig 10
IMPORTANT NOTE: Operation of
the rotary switch must only be
carried out with the generator in
stop mode and electrically isolated
to prevent personal injury and
damage to the equipment. Changes
to the alternator voltage must be
completed by a suitably trained and
competent person. Please refer to
the operator manual for detailed
instructions including breaker
protection settings.
