Precision adjustment of the stop for
crosscut 90° (Fig. 1/5/6)
• No stop angle included.
• Lower the machine head (4) and secure
using the fastening bolt (23).
• Loosen the locking screw (22).
• Position the angle stop between the saw
blade (6) and the turntable (14).
• Adjust the adjusting screw (27) until the
angle between the saw blade (6) and rotary
table (14) is 90°.
• It is not necessary to fix this setting because
it is maintained by the spring pretension.
Subsequently check the position of the
angle indicator. If necessary loosen the
pointer (19) using a Philips screwdriver, set
to position 0° on the bevel scale (18) and
re-tighten the retaining screw
Cross cut 90° and turntable 0° (Fig.7)
In the case of cutting widths up to approx. 100
mm it is possible to fix the traction function
of the saw with the locking screw (20) in the
rear position. In this position the machine can
be operated in cross cutting mode. If the cutting
width is over 100 mm then it is necessary to
ensure that the locking screw (20) is loose and
the machine head (4) can move.
• Open the set screw (16b) on the moveable
extention block (16a) and push the extention
block (16a) inwards.
• The moveable extention block (16a) must
be locked in a position far enough from the
inner position that the distance between the
extention block (16a) and the saw blade (6)
is no more than 8 mm.
• Before making the cut, check that no
collision could occur between the extention
block (16a) and the saw blade (6).

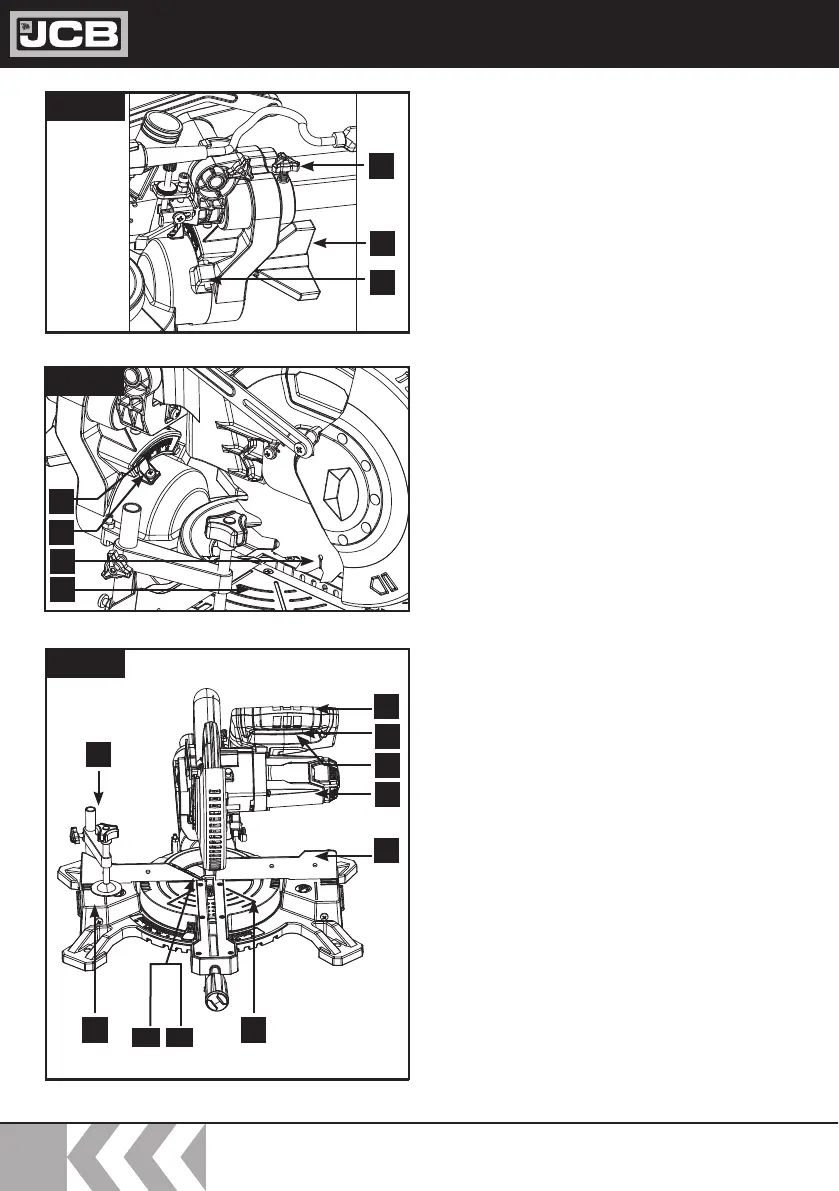

Fig.5
