jcb JS200 Service Manual

Automatic Adjustment
Always perform the automatic adjustment when the controller
and or the throttle motor or linkage is replaced. The controller
must be programmed to suit the machine model. There are
differences in the controller’s programming for various
models and territories.
Initial Set-up of the Controller for Machine
Identification
To set the machine, the controller’s original programming
must be cleared.

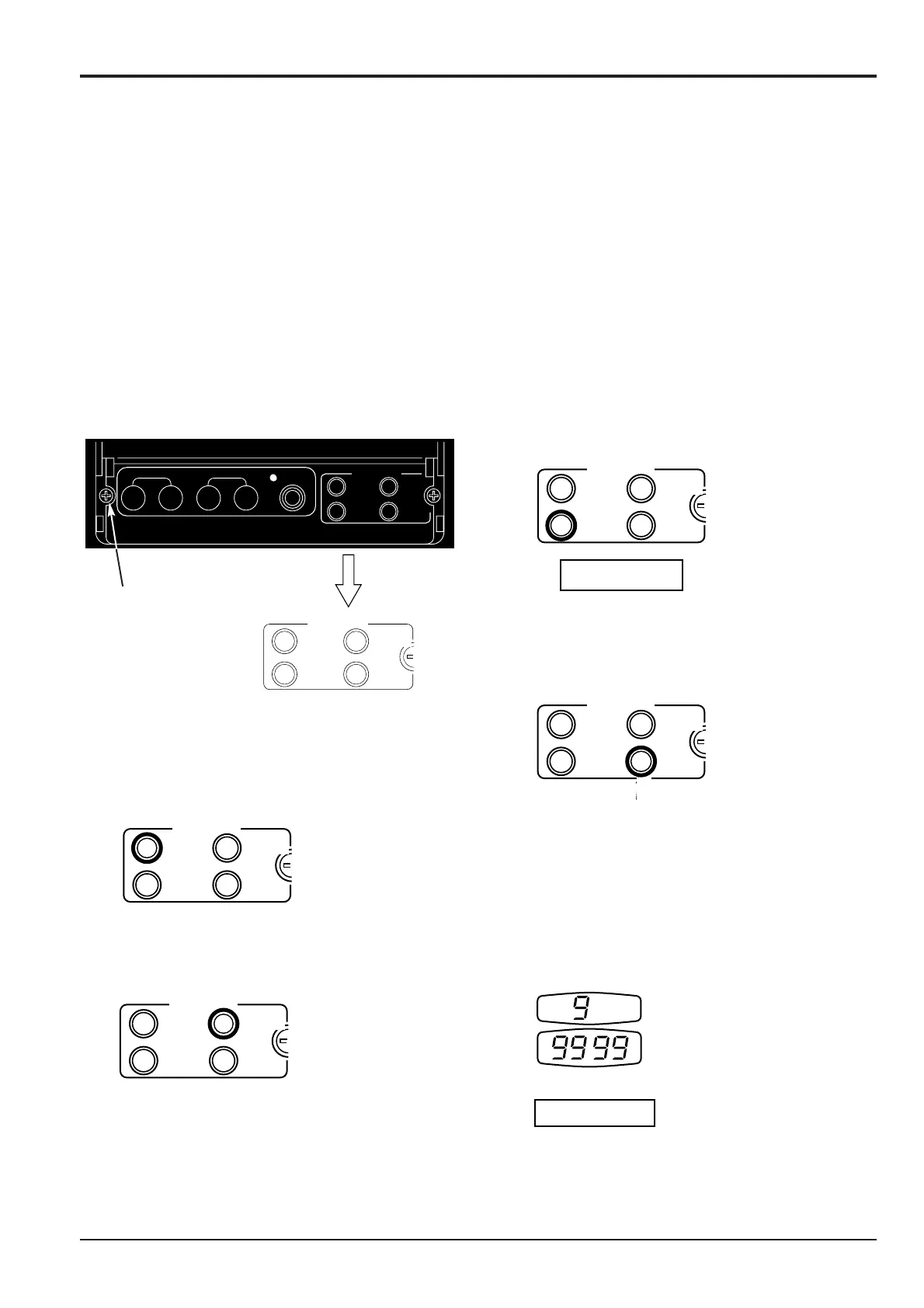

1 Remove plastic cover from around redundant mode
switches.
2 Switch ignition on.
3 Press CHANGE button once.
4 Press PATTERN button once.
5 Press SELECT button until RESET is displayed in the
message display.
6 Press RESET button for 20 sec until buzzer sounds.
7 Switch ignition off.
Controller’s original programme is now cleared.
8 Switch ignition on (9999 displayed).
6 - 3
Section C
Electrics
9803/6400
Section C
6 - 3
Issue 3*
Throttle Motor
*
Change
Select Reset
Pattern
Self-check
BACK UP
MANUAL THROTTLE
UP
HM
DOWN
ADJUST/CLOCK
Change
Select Reset
Pattern
Self-check
Change
Select Reset
Pattern
Self-check
Change
Select Reset
Pattern
Self-check
Change
Select Reset
Pattern
Self-check
Work Mode
Time
Message
MODE
Change
Message
RESET
Select Reset
Pattern
Self-check
Cover installation
screws x 2
