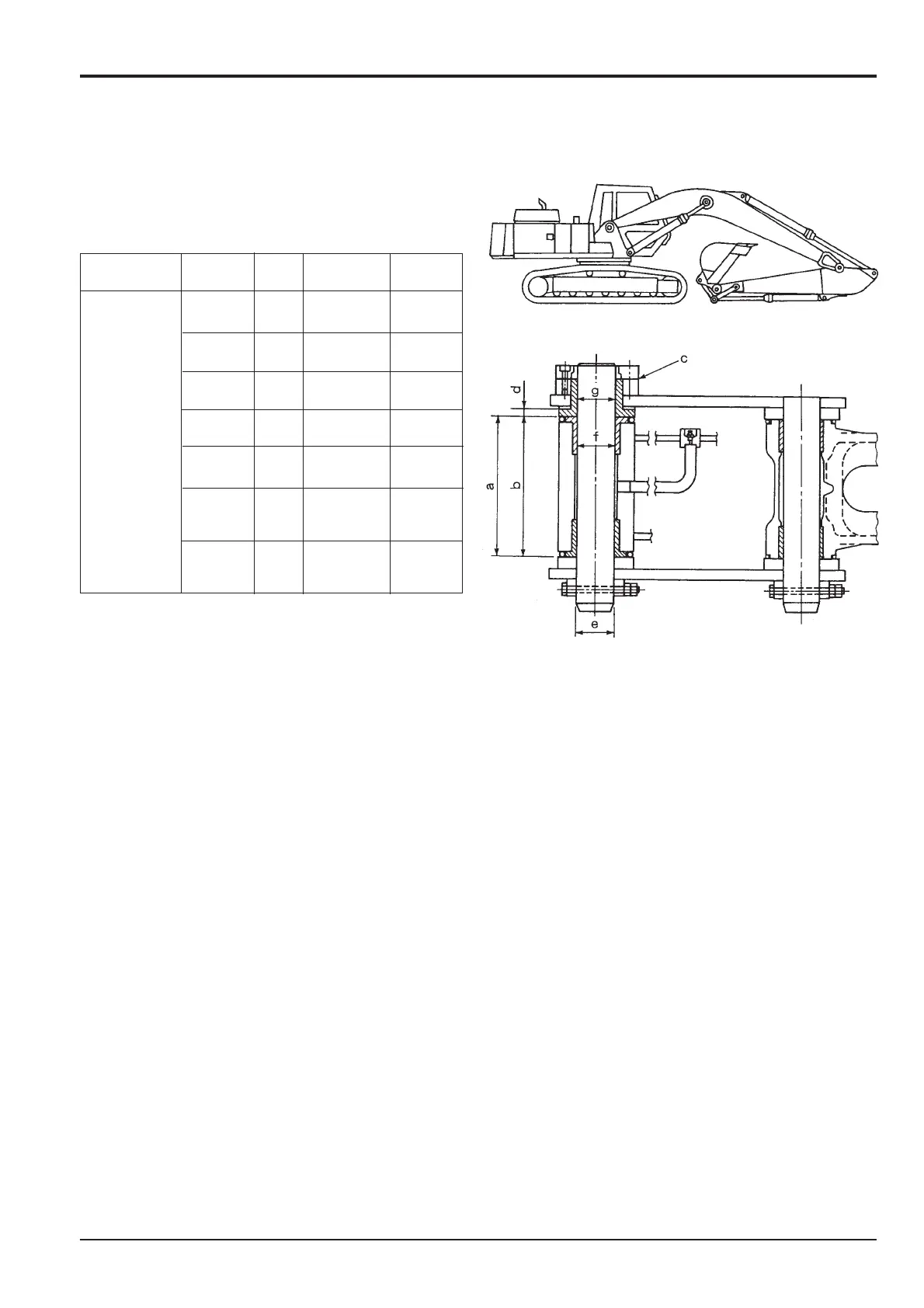

Bucket and Dipper Installation JS200,
JS200LC
Section B
Body & Framework
9803/6400
Section B
4 - 6
Issue 2*
Maintenance Specifications
*
Equipment Part
Code
Standard
Service
Name
Name
Value (mm)
Limit (mm)
11.
Bucket and
Bucket
a
307
313
dipper installation
Dipper b
306
304
Clearance
c
1.0-3.5
Bushing
d
16
8
(bucket)
Pin
e
ø80
ø79
Bushing
f
ø80
ø81.5
(bucket)
Bushing
g
ø80
ø81.5
(bucket)
Shim for
adjustment
KRV1159
78
80
