jcb JZ 70 User Manual

Section F - Transmission
Track Gearbox
Dismantling and Assembly
F - 2 F - 2
9803-6030

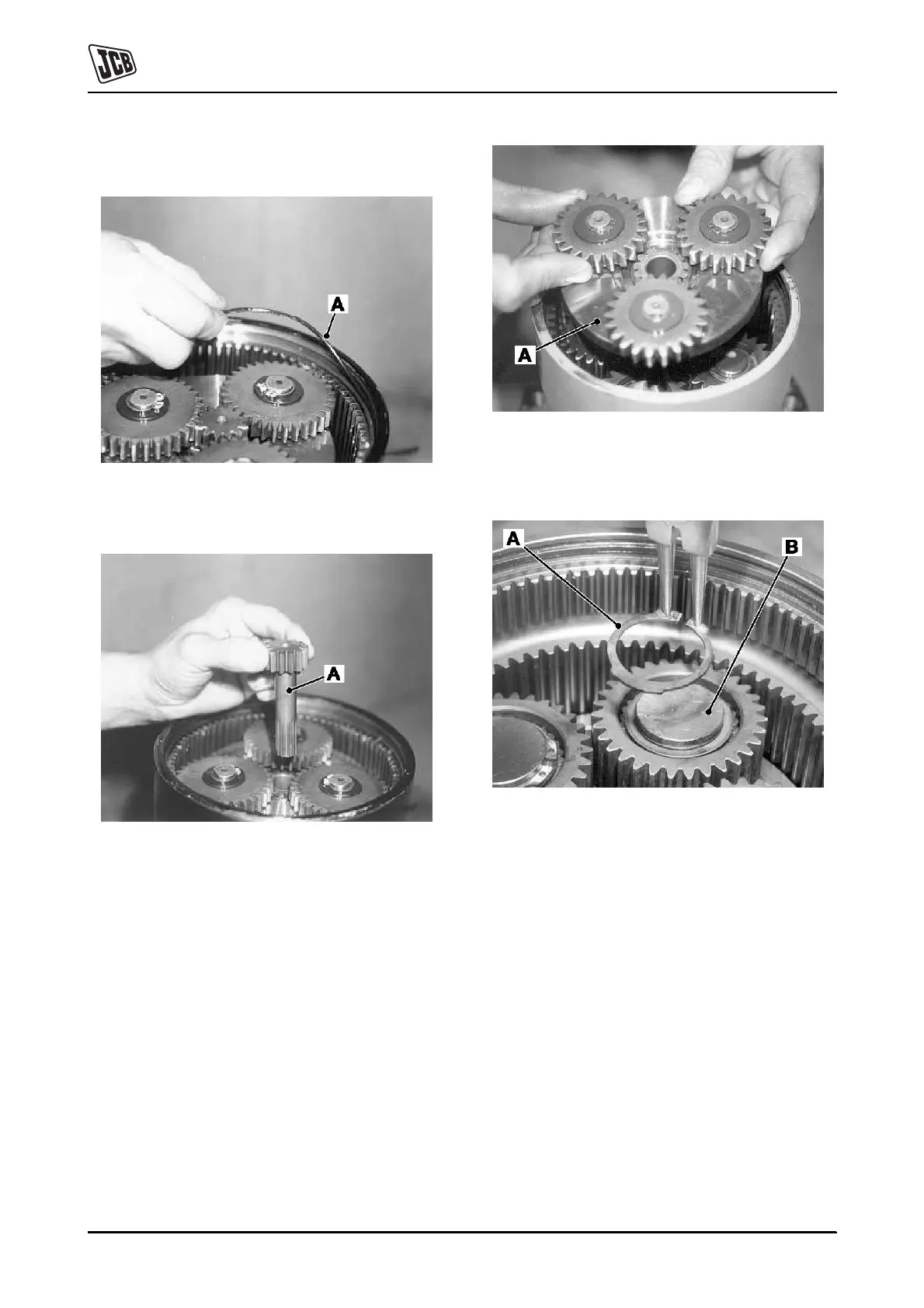

5 Remove the 0-ring seal 5-A from its seat in the
gearbox housing.
Fig 5.
6 Remove the first stage sun gear 6-A.
Fig 6.
7 Remove the first stage reduction assembly 7-A.
Fig 7.
8 Using pliers, remove the circlips 8-A from their seats
in the hydraulic motor pins 8-B.
Fig 8.
9 Using a puller, see Service Tools. remove the
second reduction planet assembly 9-A.
