jcb JZ 70 User Manual






         
        
          

        
         


 



 
          
        
         

 

Electrics





EMS
EMS

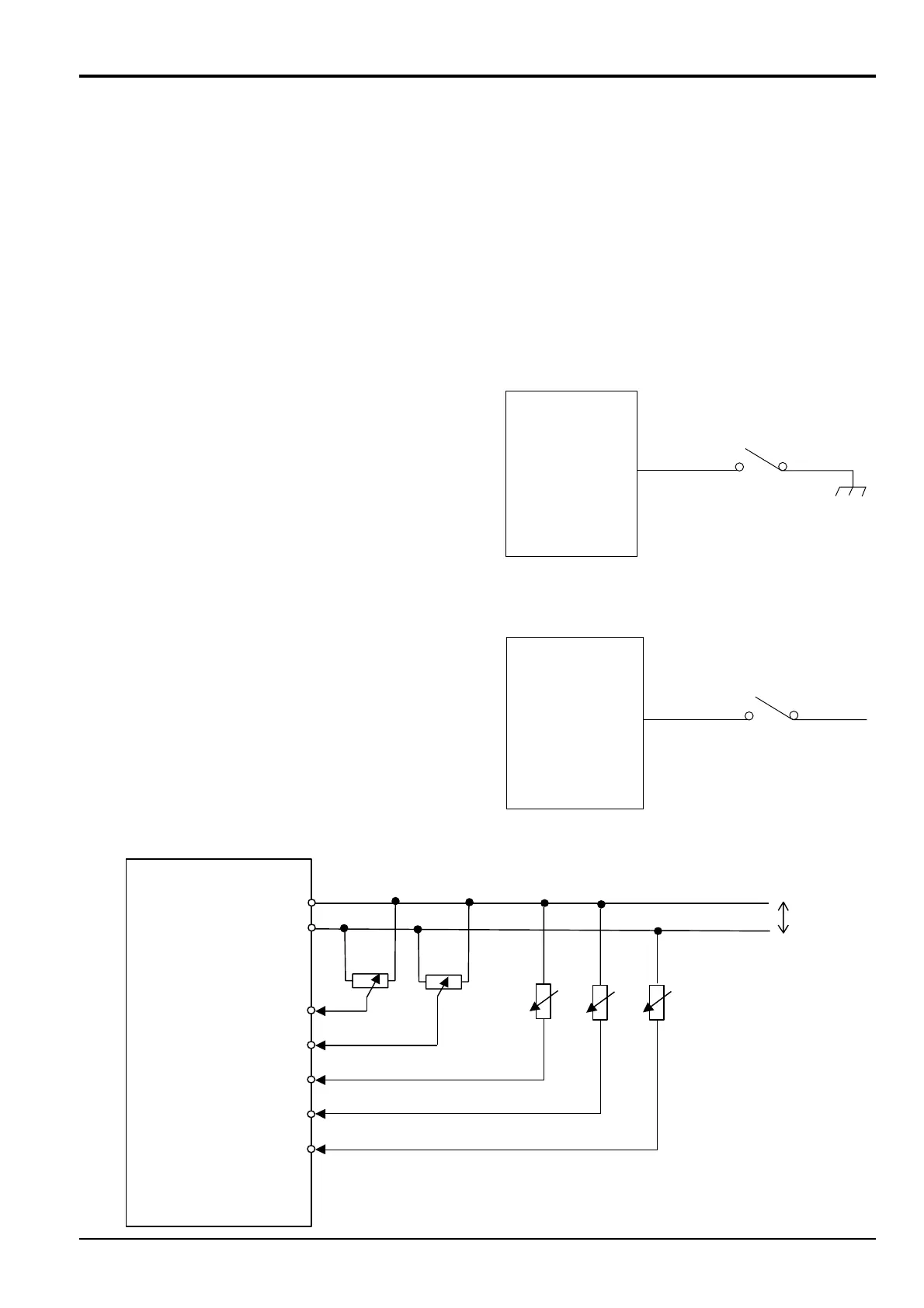

Input
5v
24v
Input
Switch (rocker,
momentary, pressure,
level, etc.)
Switch (lights, engine
preheat, etc.)
EMS
Sensor ref voltage
Sensor ref 0 voltage
Throttle dial input
(Potentiometer type input)
Throttle dial input
(Potentiometer type input)
Throttle
dial
Throttle
position
sensor
Water
temp
sensor
Hyd oil
temp
sensor
Fuel
level
sensor
Engine temp. input
(Temp. variable resistance type input)
Hydraulic oil input
(Temp. variable resistance type input)
Fuel level input
(Float variable resistance type input)
ºt
ºt
5v
