Section F - Transmission
Track Motor
Dismantling and Assembly
F - 18 F - 18
9803-6030

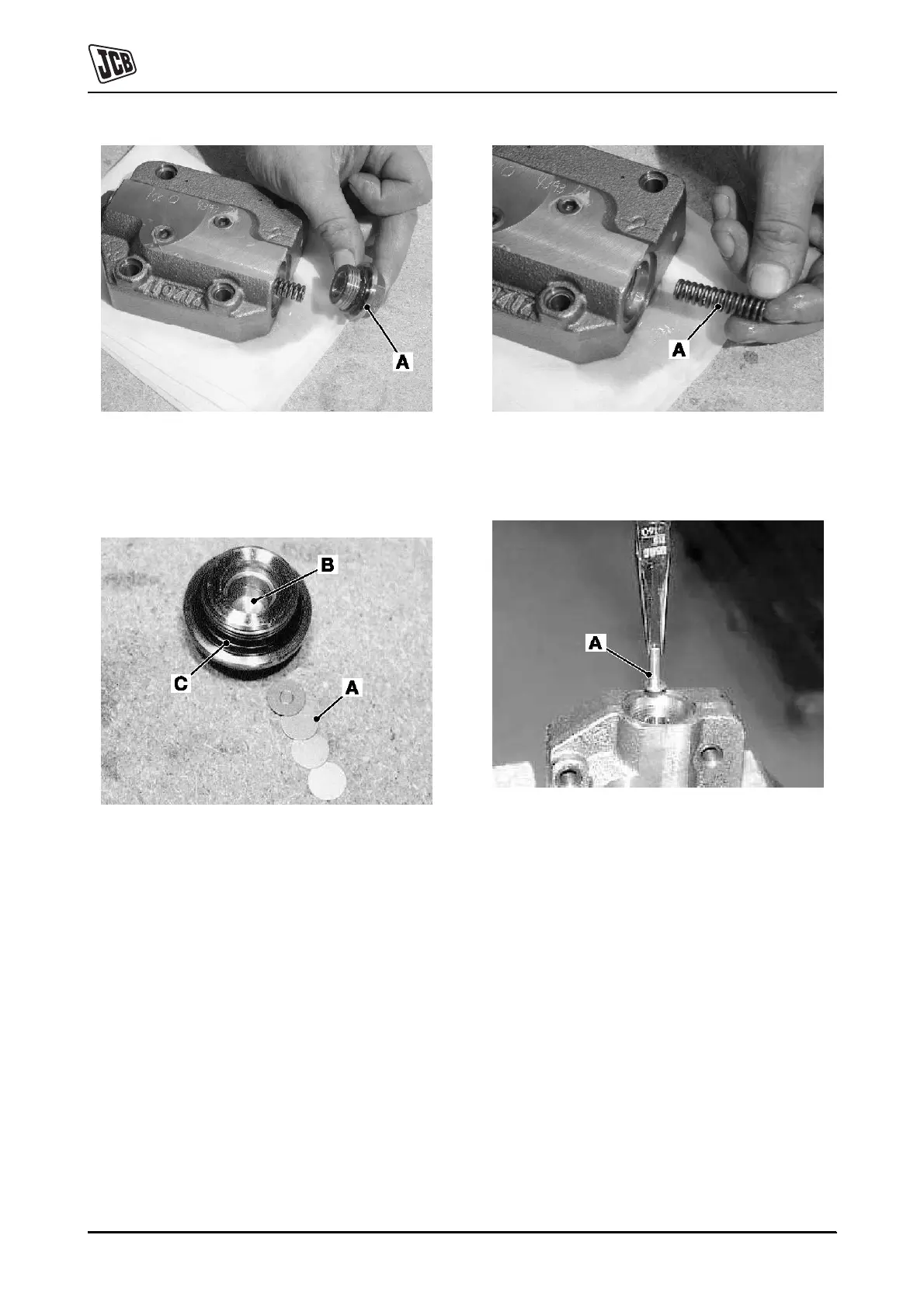

Fig 4.
e Take out the shims 5-A from the plug 5-B being
careful not to change their order. Remove the o-
ring 5-C from the plug.
Fig 5.
f Remove the spring 6-A from each relief valve.
Fig 6.
g Take out the spring seat 7-A from each relief
valve.
Fig 7.
h By using a puller, remove the relief valves 8-A
from the valve housing.
