Technical Data
Electrical System
97 9831/3200-3 97
Electrical System
General
For: Lead Acid Battery ............................................................................................................. Page 97
For: Lithium Iron Phosphate Battery ........................................................................................ Page 97
(For: Lead Acid Battery)
Table 42.
S1530E S1930E S2032E S2046E S2632E
Lead acid batter-
ies
T105, 225AH T105, 225AH T105, 225AH T105, 225AH T105, 225AH
Specification 24V DC - 4x 6V 24V DC - 4x 6V 24V DC - 4x 6V 24V DC - 4x 6V 24V DC - 4x 6V
Table 43.
S2646E S3246E S4046E S4550E
Lead acid batteries T105,225AH T125,240AH T1275 T1275
Specification 24V DC - 4x 6V 24V DC - 4x 6V 24V DC - 4x12V 24V DC - 4x12V
(For: Lithium Iron Phosphate Battery)
Table 44.
S1530E S1930E S2032E S2046E S2632E S2646E
Lithium Iron
batteries
LFP Smart
12,8/90
LFP Smart
12,8/90
LFP Smart
12,8/90
LFP Smart
12,8/90
LFP Smart
12,8/90
LFP Smart
12,8/90
Specification 24V DC - 2x
12V 90Ah
24V DC - 2x
12V 90Ah
24V DC - 2x
12V 90Ah
24V DC - 2x
12V 90Ah
24V DC - 2x
12V 90Ah
24V DC - 4x
6V
Fuses
Primary Fuses
Table 45.
Fuse Rating
Primary fuse (high rating) 275A
Primary fuse- single inline (low rating) 20A
Secondary Fuses

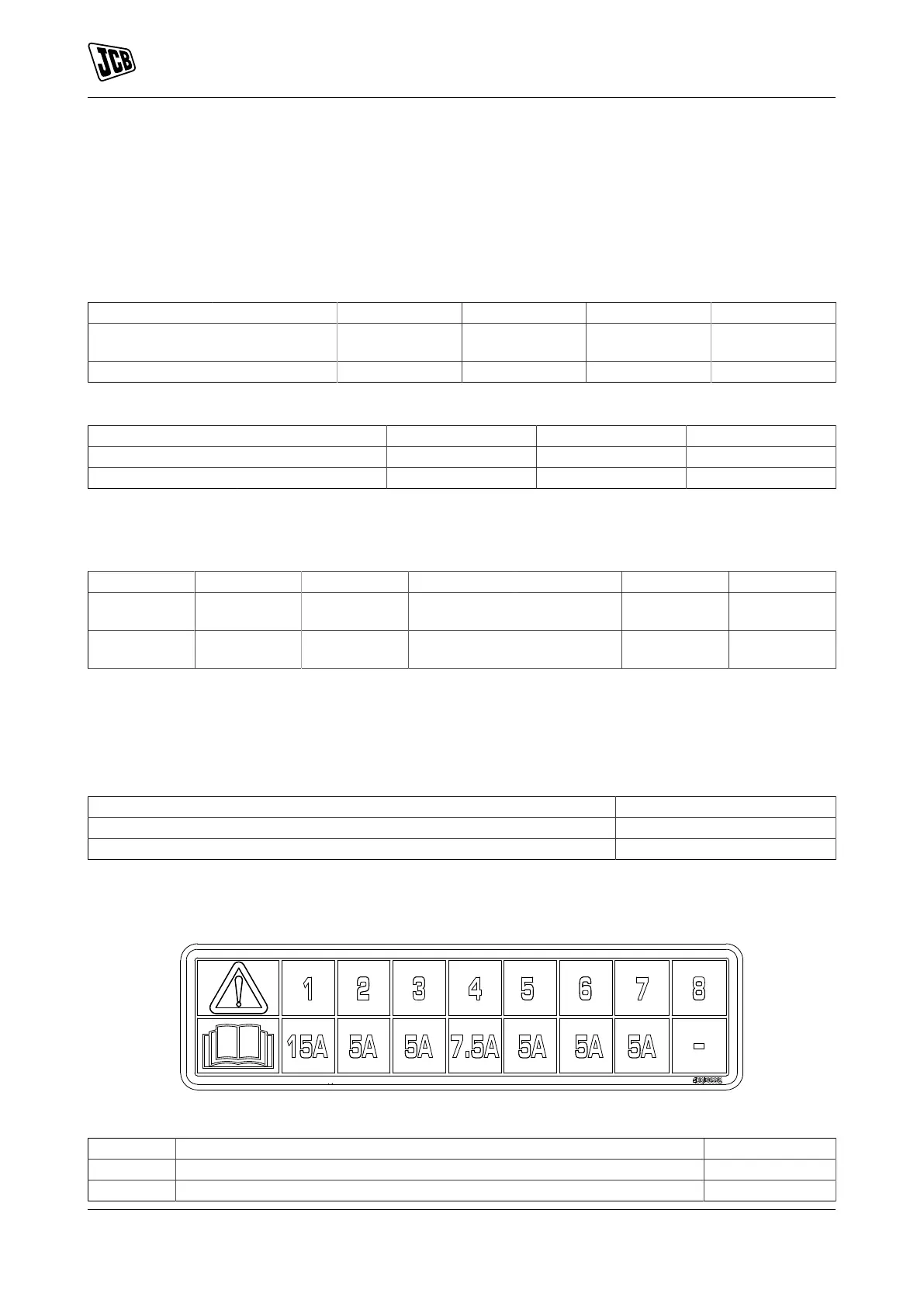

Figure 51.
Table 46.
Fuse Circuit Rating
1 Permanent feed - ignition relay contact 15A
2 Permanent Feed - livelink permanent (Option) 5A
