jcb S1930E User Manual

About the Product
Description
7 9831/3200-3 7

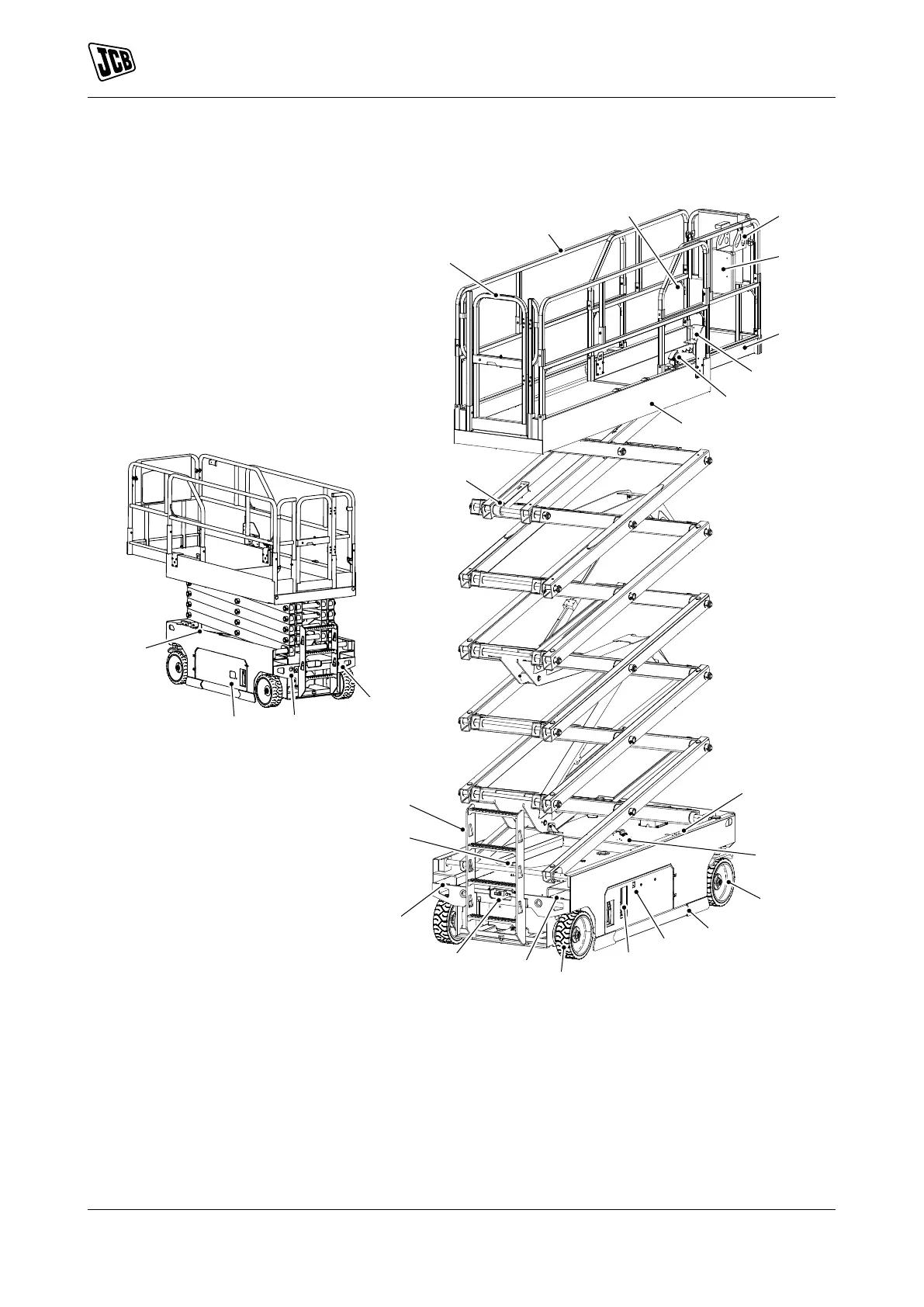

Main Component Locations
Figure 3.
K
W
U
T
S
R
K
L
M
N
Q
P
S
V
F
J
G
H
A
B
C
D
E
X
Y
Z
A Gate B Guardrail
C Harness fastening point D Platform control panel
E Operator's Manual F Platform extension
G AC (Alternating Current) Power socket (option) H Extension platform pedal
J Main platform K Warning lights
L Tilt sensor M Front wheel (steering)
N Pot hole protection plate P MECU (Machine Electronic Control Unit) display
Q Ground controller R Rear wheel
S Lift point/forklift position T Manual release valve and emergency lowering
handle
U Pot hole activation plungers V Ladder
W Safety strut X Battery charger

jcb S1930E Specifications

General

Brand	jcb
Model	S1930E
Category	Scissor Lifts
Language	English
