Maintenance
Maintenance Positions
59
9831/3200-3
59

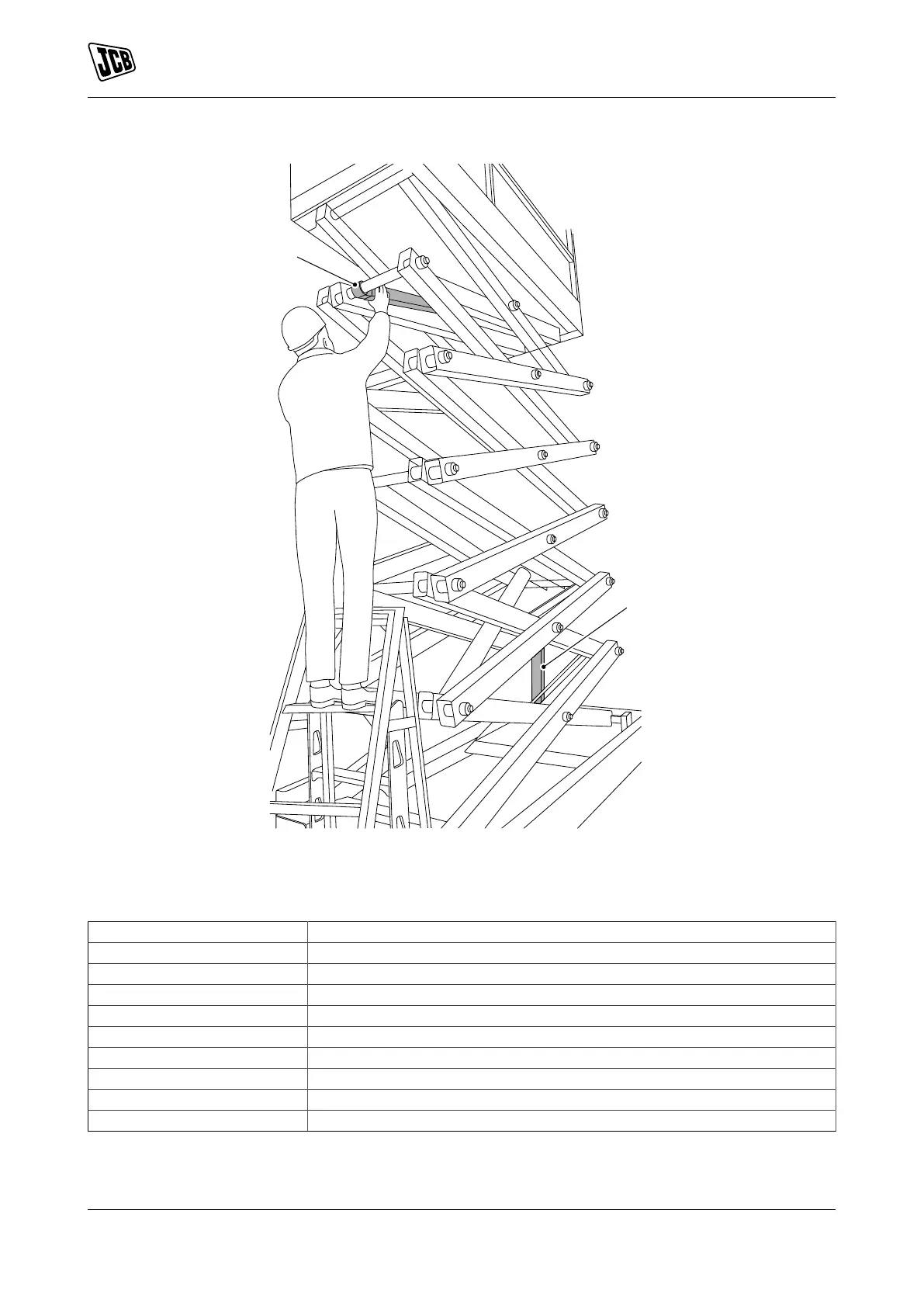

Figure 33.
A
B
A
Upper safety strut
B
Lower safety strut
The minimum clearance height required to install the safety struts is shown. Refer to T
able 10.
T
able 10.
Machine
Length
S1530E
3.25m
S1930E
3.61m
S2032E
3.3m
S2046E
3.3m
S2632E
3.75m
S2646E
3.75m
S3246E
4.2m
S4046E
4.6m
S4550E
4.6m
66
68
Table of Contents
Default Chapter
5
Table of Contents
5
Contents
8
Acronyms Glossary
8
Introduction
9
About this Manual
9
Model and Serial Number
9
Using the Manual
9
Left-Hand Side, Right-Hand Side
9
Cross References
10
Location of Manual
10
Safety
11
Safety - Yours and Others
11
Safety Warnings
11
General Safety
12
Clothing and Personal Protective Equipment (PPE)
12
About the Product
13
Introduction
13
General
13
Name and Address of the Manufacturer
13
Product Compliance
13
Introduction General
13
Description
14
General
14
Intended Use
14
Log Moving/Object Handling
14
Danger Zone
14
Description General
14
Main Component Locations
15
Product and Component Identification
17
Machine
17
Safety Labels
18
General
18
Safety Label Identification
18
Operation Introduction General
23
Operating Safety
24
General
24
Worksite Safety
25
Risk Assessment
25
Walk-Around Inspection
27
General
27
Entering and Leaving the Operator Station
28
General
28
Battery Isolator
30
General
30
Battery Isolator General
30
Stopping and Parking
32
General
32
Getting the Machine Moving
33
General
33
Slopes
34
General
34
Driving on Slopes
34
Driving the Machine
36
General
36
Operating Levers/Pedals
37
Control Layouts
37
Working with the Platform
40
General
40
Extending and Retracting the Platform
43
Folding and Unfolding the Guardrails
43
Moving a Disabled Machine
45
General
45
Lifting the Machine
47
General
47
Transporting the Machine
49
General
49
Loading the Machine Onto the Transporting Vehicle/Trailer
49
Operating Environment
51
General
51
Preservation and Storage
53
Storage
53
General
53
Take out of Storage
53
Maintenance Introduction General
55
Owner/Operator Support
55
Service/Maintenance Agreements
56
Obtaining Spare Parts
56
Maintenance Safety
57
General
57
Fluids and Lubricants
57
Batteries
59
Maintenance Schedules
63
General
63
How to Use the Maintenance Schedules
63
Maintenance Intervals
63
Pre-Start Cold Checks, Service Points and Fluid Levels
64
Functional Tests and Final Inspection
65
Maintenance Positions
66
General
66
Service Points
69
General
69
Access Apertures
71
General
71
Battery Cover
71
Hydraulic Compartment Cover
71
Body and Framework
73
General
73
Safety Equipment
74
Check (Operation)
74
Park Brake
76
Steering System
77
General
77
Tyres
78
General
78
Hydraulic System
79
General
79
Oil
82
Electrical System
83
General
83
Battery
83
Battery Isolator
88
Fuses
88
Relays
89
Technical Data
91
Introduction
91
General
91
Introduction General
91
Static Dimensions
92
Dimensions
92
Weights
95
Performance Dimensions
98
Driving Performance
98
Noise Emissions
102
Noise Data
102
Vibration Emissions
103
Vibration Data
103
Fluids, Lubricants and Capacities
104
General
104
Electrical System
105
General
105
Fuses
105
Hydraulic System
107
General
107
Wheels and Tyres
108
General
108
Fault-Finding
109
General
109
Declaration of Conformity
111
General
111
Data
111
Warranty Information
113
Service Record Sheet
113
