AWM968
4

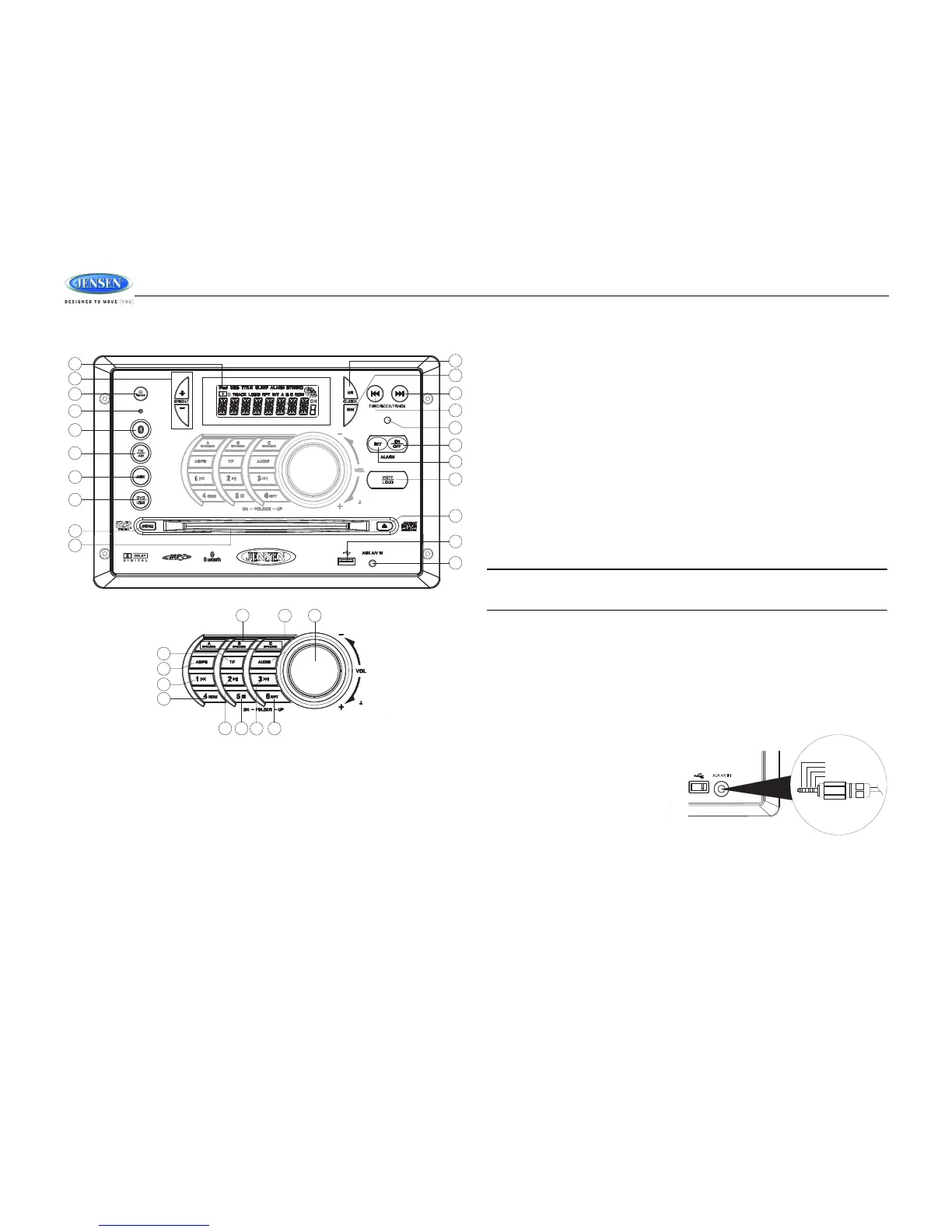

BASIC OPERATION
Power
Press the POWER button (3) to turn the unit on or to enter standby mode.
Volume Control/Audio Adjustment / Menu
• Rotate the VOL/PUSH/ENTER control (24) clockwise to increase or counter-clockwise to
decrease the volume output.
• Press the AUDIO button (23) to step through the following audio adjustment options.
Rotate the VOL/PUSH/ENTER control (24) to adjust the selected audio feature.
• BAS: Adjust the Bass level from “-7” to “+7”.
• TRE: Adjust the treble from “-7” to “+7”.
• BAL: Adjust the speaker output balance between “L7” (left) and “R7” (right). “BAL 0”
indicates an equal balance between the left and right speakers.
• FAD: Adjust the speaker fade between “R7” (rear) and “F7” (front). “FAD 0” indicates
and equal balance between the rear and front speakers.
This function will time out after three seconds of inactivity and the unit will resume normal
operation.
Mute/Loudness
Press the MUTE/LOUD button (18) to silence the audio output in tuner, CD, DVD, USB or
auxiliary input mode. Press again to restore the previous volume level.
Press and hold the MUTE/LOUD button to toggle the Loudness function on/off.
Audible Beep Confirmation
Press and hold the AUDIO button (23) to access the system menu. Rotate the VOL/PUSH/
ENTER control (24) to turn the audible beep confirmation “ON” or “OFF”.
This function will time out after three seconds of inactivity and the unit will resume normal
operation.
Liquid Crystal Display (LCD)
The liquid crystal display (LCD) panel (1) displays the frequency, time and activated functions.
To adjust the brightness of the LCD, press the BRIGHT +/- buttons (2) to adjust the LCD
brightness from “LEVEL OFF” to “LEVEL 9” (brightest).
NOTE: When subjected to cold temperatures for an extended period of time, LCD panels
will take longer to illuminate and the display visibility may slightly decrease. Optimal
LCD operation will return to normal when the temperature increases to a normal range.
Auxiliary Input Function
Press the AUX button (7) to directly access auxiliary input modes (AUX 1 IN and AUX 2 IN)
from any other mode when a portable audio device is connected to the unit. To connect a
portable audio device, insert a standard 3.5mm (audio line output or headphone output from
your portable CD / MP3 / iPod or other media player) into the AUX A/V IN (AUX 2 IN)
connector (21) on the front of the unit or the AUDIO IN (AUX 1 IN) on the back of the unit (see
“Wiring” on page 3).
Auxiliary Input Connector
For front panel A/V input, an external
audio/video (A/V) source such as a video
game player, camera, etc. can be
connected to the front panel A/V input with
the provided 3.5mm A/V cable adapter.
Connect the device to the AUX A/V IN
connector (21) on the front panel, and then
press AUX to engage the input circuit to
“AUX 2 IN”. Please note that there are
several different A/V cable "standards".
The AWM968 is designed to support the
Apple Video iPod cable type, as shown in
the inset drawing.
