Jensen JHD1635BT User Manual

JHD1635BT
4

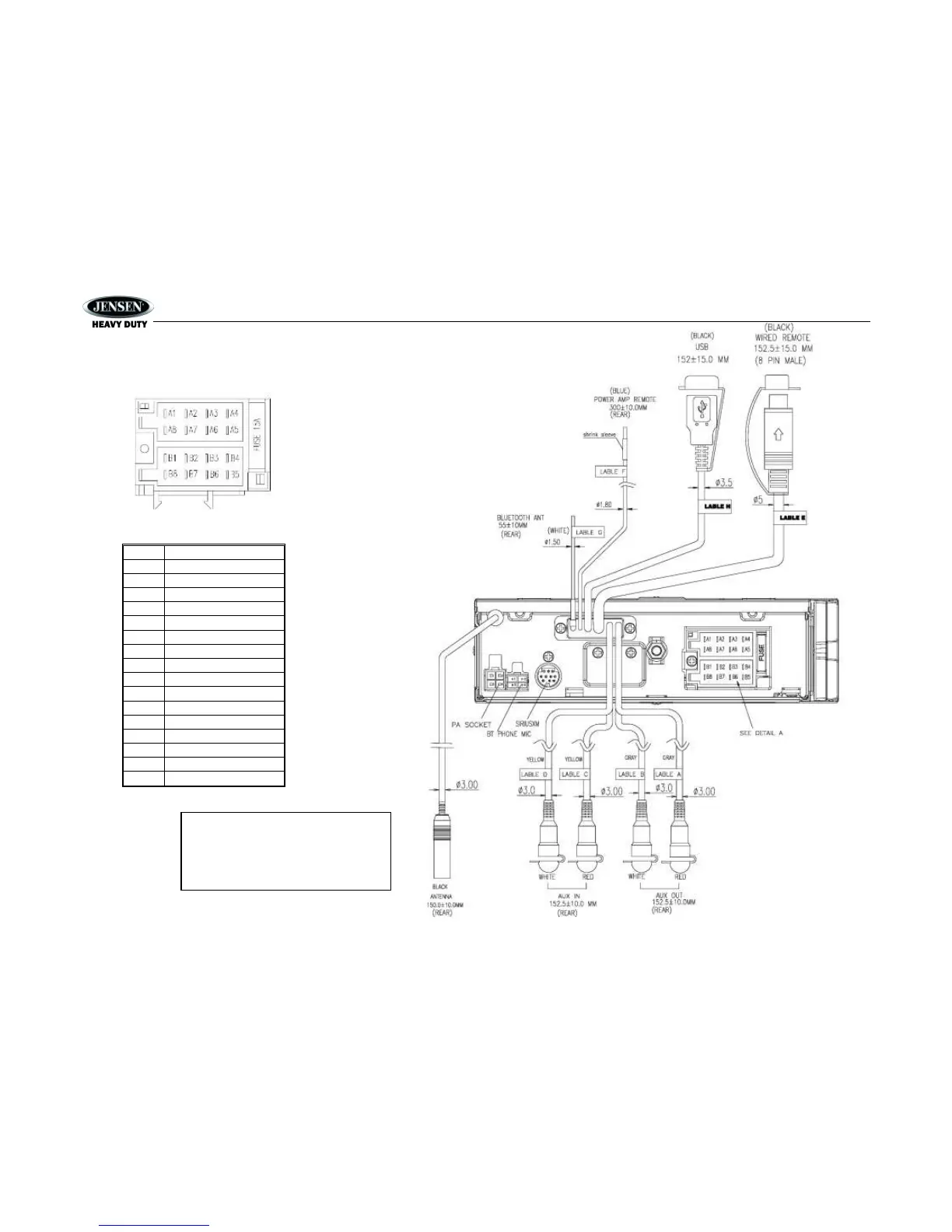

WIRING
DETAIL A
SHOWN FROM PIN VIEW
PIN NO.
DESCRIPTION
A1
RIGHT REAR SPEAKER (+)
A2
RIGHT FRONT SPEAKER (+)
A3
LEFT FRONT SPEAKER (+)
A4
LEFT REAR SPEAKER (+)
A5
LEFT REAR SPEAKER ()
A6
LEFT FRONT SPEAKER ()
A7
RIGHT FRONT SPEAKER ()
A8
RIGHT REAR SPEAKER ()
B1
NO CONNECTION
B2
NO CONNECTION
B3
NO CONNECTION
B4
NO CONNECTION
B5
GROUND
B6
NO CONNECTION
B7
+12V ACC SWITCHED
B8
NO CONNECTION
WARNING!
Do not connect the +12VDC ACC switched
wire to the battery. This wire MUST be
connected to the Accessory/Ignition wire or
a +12 volts switched power source.
