CAMERA OPERATION
Enter Camera Mode
Enter Camera Mode

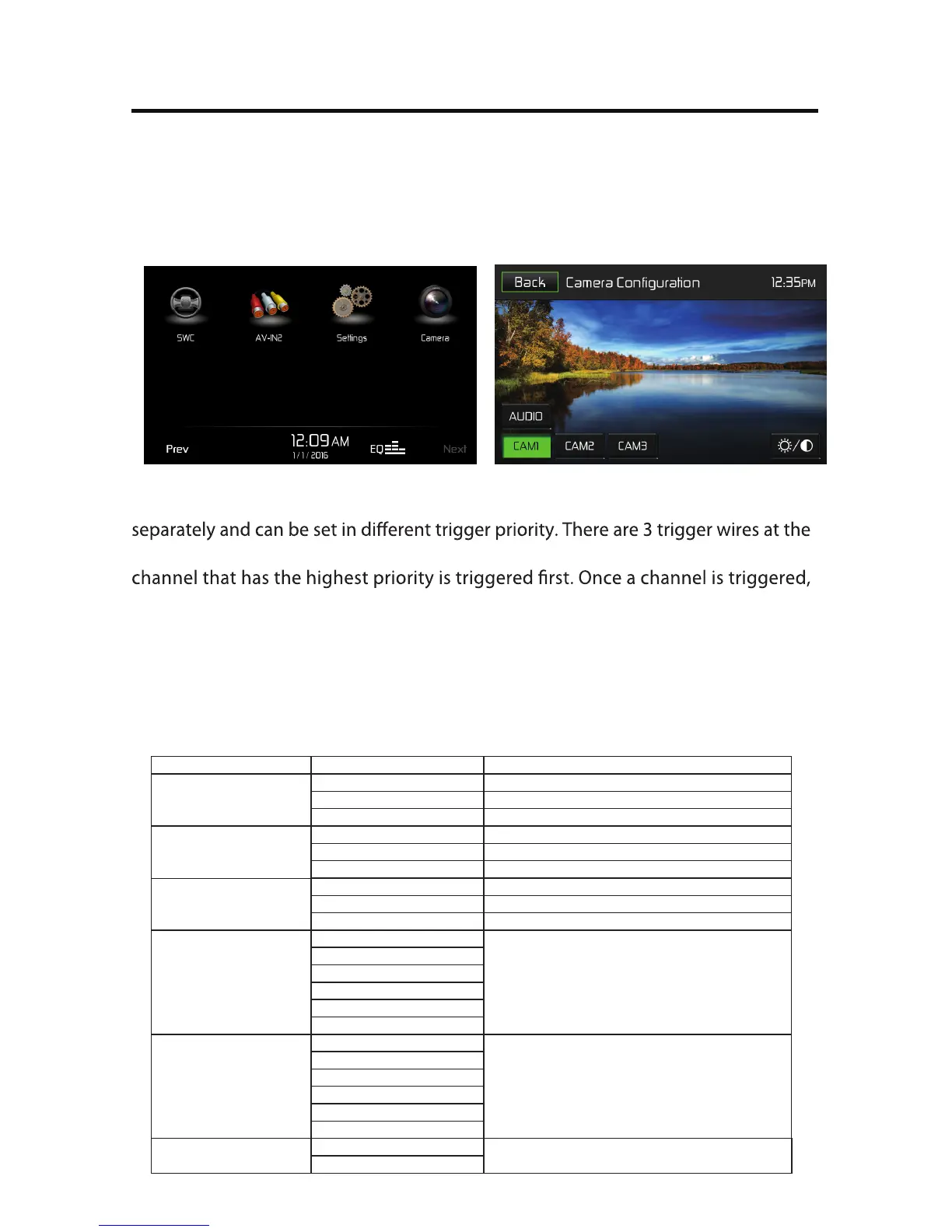

Connect the cameras to the unit using the CAMERA 1-3 Connection cables at the
back of the unit. Enter 2nd page of main menu, press CAMERA to access camera
mode.
This unit can connect 3 cameras:CAM1, CAM2 and CAM3. Each camera can be triggered
back of the unit. If trigger signals are detected on more than one trigger wire, the
the triggered channel video will be displayed on the full screen, Only CAM 1 has
audio input.
Auto Mic Enable
When the Auto Mic Enable feature is set to “Yes”, the current playback audio will be
muted and the microphone for camera 1 will be automatically turned on when the
vehicle is placed in reverse gear. See "Camera Conguration":
Setting Options Function
Camera 1 mode
Camera 2 mode
Camera 3 mode
Priority Order
Trigger Delay
Auto Mic Enable
Skip
Normal (default)
Mirror
Skip
Normal (default)
Mirror
Skip
Normal (default)
Mirror
1-2-3
1-3-2
2-1-3
2-3-1
3-1-2
3-2-1
One Second
Two Second
s
Three Seconds
Four Seconds
Five Seconds
Six Seconds
Yes
No
The output of camera 1 image is skipped.
The output of camera 1 image is in normal mode.
The output of camera 1 image is in mirror mode.
The output of camera 2 image is skipped.
The output of camera 2 image is in normal mode.
The output of camera 2 image is in mirror mode.
The output of camera 3 image is skipped.
The output of camera 3 image is in normal mode.
The output of camera 3 image is in mirror mode.
Continue pressing to select the desired camera
trigger priority from 1(highest) to 3 (lowest).
Set delay time for displaying camera image after
trigger signal is removed.
Select “Yes” to automatically turn on the microphone
and mute other audio when the vehicle is in reverse gear.
