4.3.3 Filament loading

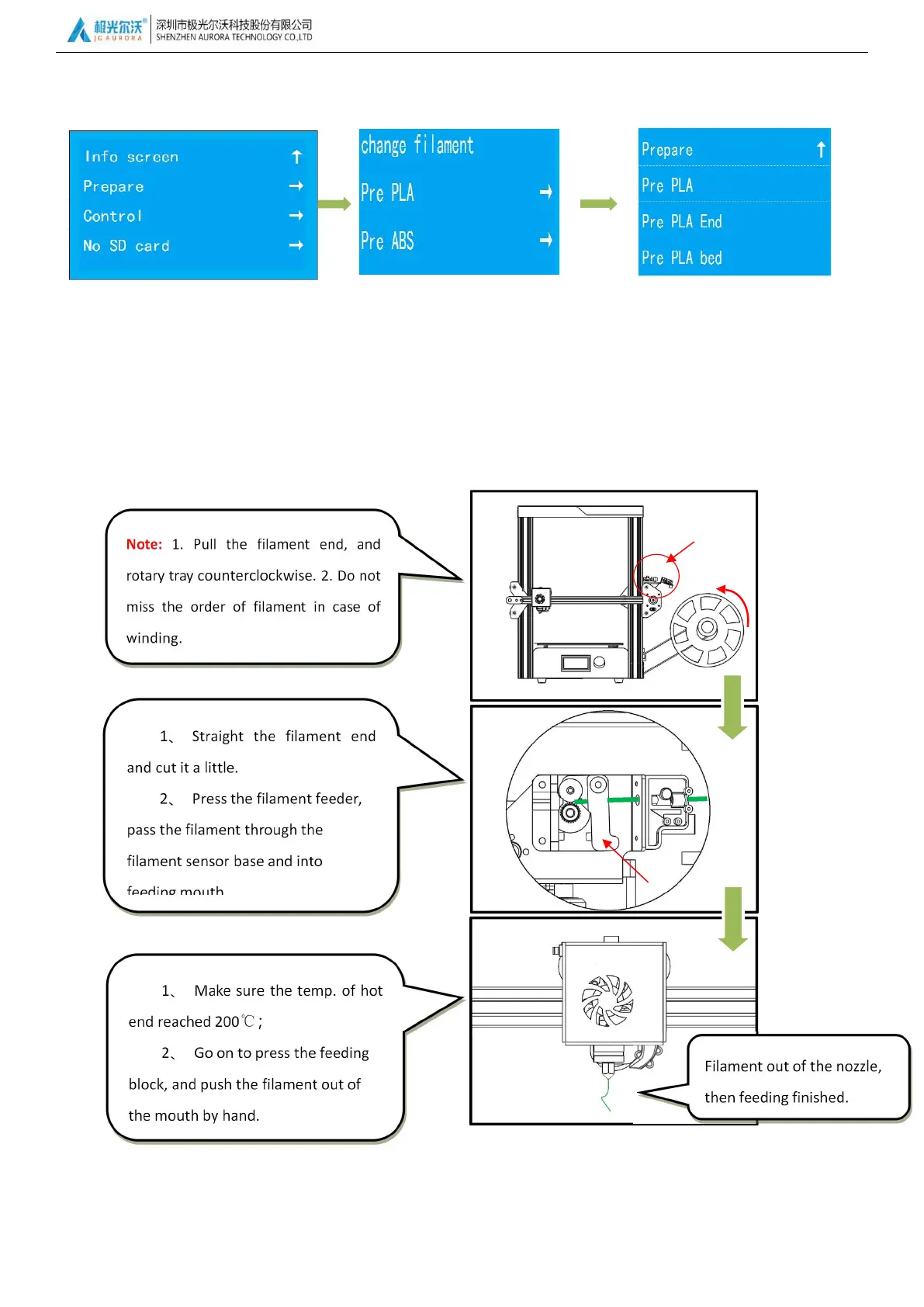

The first step：Press the button into the main menu, select “ Prepare” → “Preheat PLA”→ “Preheat PLA”, press the button
then extruder and hot bed begin heating.（Temp. in reference：PLA≈200 ℃，ABS≈240 ℃）. Attention: We take the PLA as
an example in this manual.
he second step: When preheating, you could place the filament to the filament holder, press the feeding block in the left
side, load the filament into the filament feeder and lock the filament there.
The third step: After preheating finished, go on to load the filament to the nozzle part until filament out of the nozzle.
Feeding suite enlarged view
