JUKI CP-180 User Manual

- 10 -

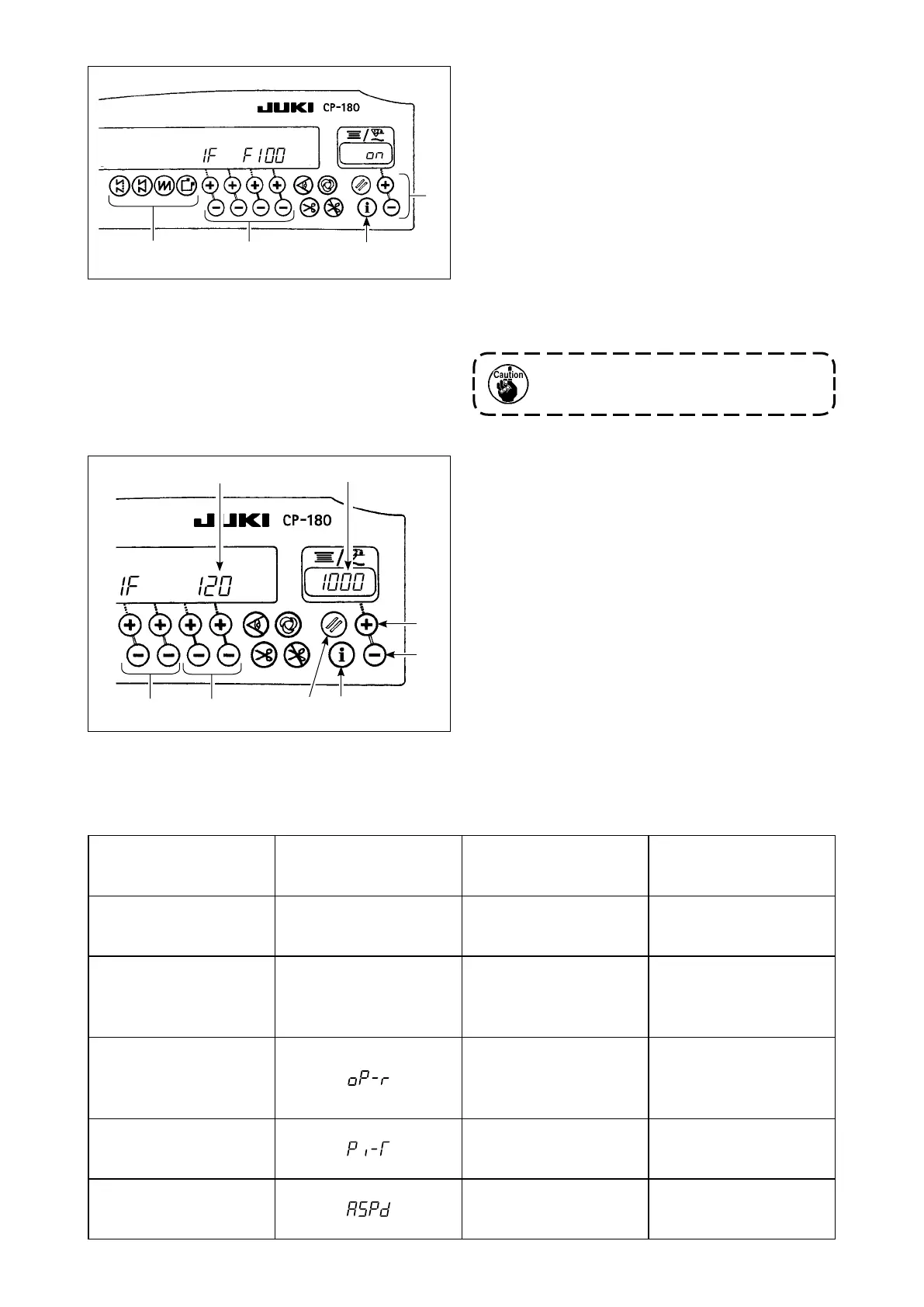

< To display the production support modes >
1) Keep switch
1
held pressed (for one second) in
the normal sewing state to call up the one-touch
setting screen.
2)
Then, press switch
2
on the one-touch setting
screen to display/hide the production support modes.
3) Select the mode to be displayed/hidden by
pressing switch
3
.
4) ON/OFF of the display can be changed over by
pressing switch
4
.
5) To return to the normal sewing state, press
switch
1
.
F100 to F500 modes have been factory-set
to HIDE at the time of delivery.
< Basic operation of the production support modes >
Sewing can be performed with the production
support data displayed on the control panel.
1) When switch
1
is pressed in the normal sewing
state to enter the production support mode.
2) Production support function (F100 to F500) can
be changed over by pressing switch
2
.
3) The data with an asterisk mark (*1) in Table 1
" Display of modes " can be changed by pressing
switch
3
. The data with an asterisk mark (*2)
can be changed by switch
4
or switch
5
.
4) Refer to the Table 2 "Mode resetting operation"
for the resetting procedure of data.
5) To return to the normal sewing state, press
switch
1
.
Mode name Indicator
A
Indicator
B
Indicator
B
(when switch
4
or switch
6
is pressed)
Target No. of pcs. display mode
(F100)
Actual No. of pcs.
(Unit : Piece)
(*1)
Target No. of pcs.
(Unit : Piece)
(*2)
-
Target/actual No. of pcs.
difference display mode
(F200)
Difference between target No.
of pcs and actual No. of pcs
(Unit : Piece)
(*1)
Target pitch time
(Unit : 100 msec)
(*2)
-
Sewing machine availability
rate display mode
(F300)
S e w i n g m a c h i n e
av a ila b ilit y ra t e in the
previous sewing
(Unit : %)
D i s p l a y o f a v e r a g e
availability rate of sewing
machine
(Unit : %)
Pitch time display mode
(F400)
Pitch time in the previous
sewing
(Unit : 1 sec)
Display of average pitch
time
(Unit : 100 msec)
A v e r a g e n u m b e r o f
revolutions display mode
(F500)
Average number of revolutions
in the previous sewing
(Unit : sti/min)
Display of average number
of revolutions
(Unit : sti/min)
Table 1: Display of modes
5
1
4
6
3
2
BA
1
4
2
3
