− 1 −
Supply voltage Single phase 100 to 120V 3-phase 200 to 240V Single phase 200 to 240V
Frequency 50 Hz / 60 Hz 50 Hz / 60 Hz 50 Hz / 60 Hz
Operating environment
Temperature : 0 to 40˚C Temperature : 0 to 40˚C Temperature : 0 to 40˚C
Humidity : 90% or less Humidity : 90% or less Humidity : 90% or less
Input 390VA (LZ-228* : 460VA) 390VA (LZ-228* : 460VA) 390VA (LZ-228* : 460VA)

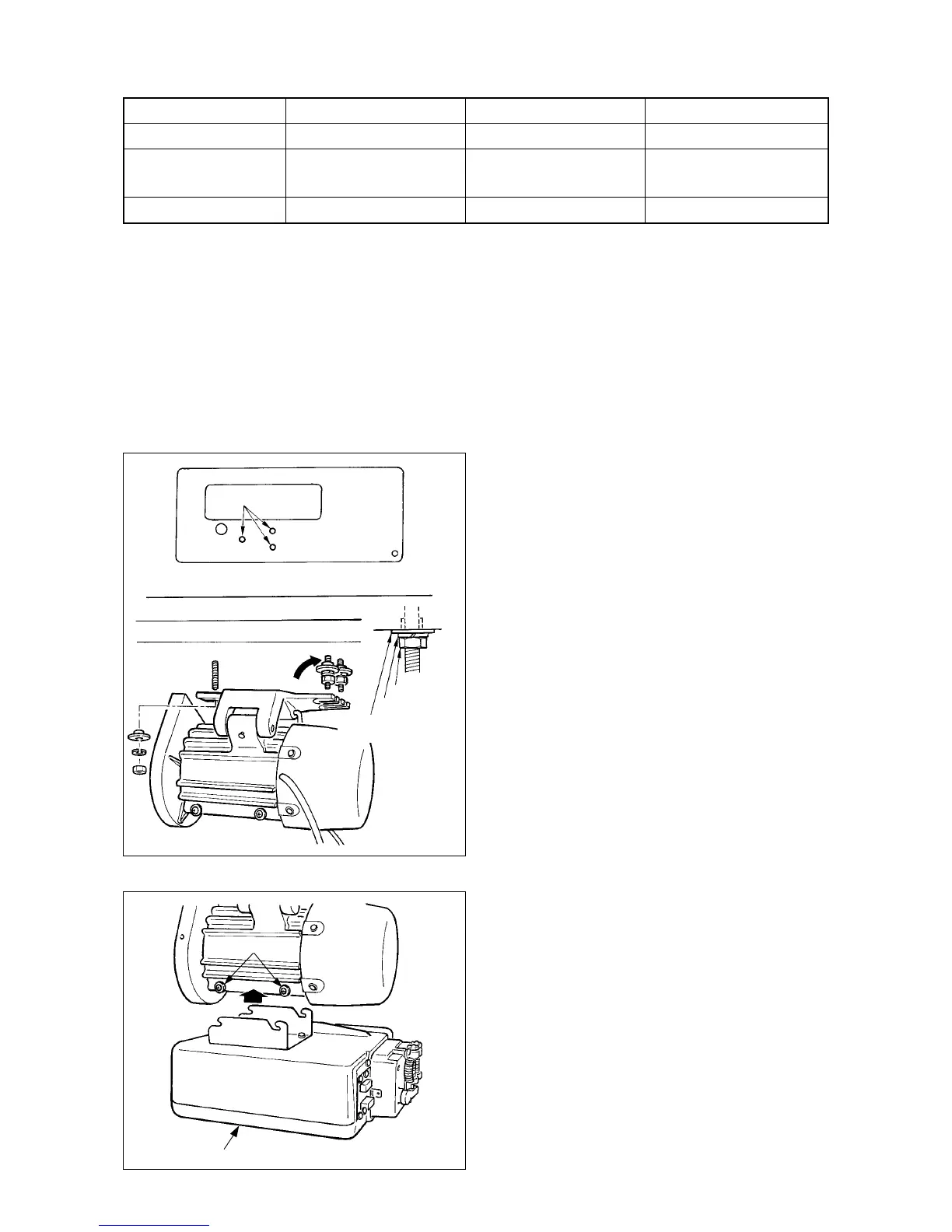

1. Installing the motor unit
Install the motor unit on the table with the fitting bolt
asm. supplied with the unit as accessories.
At this time, insert the nuts and washers supplied with
the unit as accessories as shown in the figure so that
the motor unit can be securely fixed on the table.
1) Press three bolts 1 supplied with the unit as
accessories into the motor hanging bolt hole in the
table and fix them.
2) Temporarily tighten convex washer, spring washer
and nut on the side where two bolts are attached.
3) Hang the motor unit to the washer which has been
temporarily tightened, and attach convex washer,
spring washer and nut to the other bolt on the
opposite side.
4) After adjusting the installing position of the motor,
securely tighten the respective nuts.
2. Installing the control box
1) Loosen four screws 2 supplied with the motor unit
as accessories, tighten screws 2 after hanging
control box unit 3 to the screws, and fix control
box unit 3.
1. SPECIFICATIONS
2. SET-UP
Install the motor unit to the control box following the instructions below.
1
2
3
Spring
washer
Nat
Convex
washer
(Caution) 1. Indication of the power consumption is the mean power consumption when DDL-8700
is mounted in accordance with the operating conditions JUKI specifies.
2. The power consumption changes in accordance with the operating conditions and the
mounted machine head. So, be careful.
3. Instantaneous maximum power consumption may become 1.5 times or more than the
mean power consumption.
To Next Page
