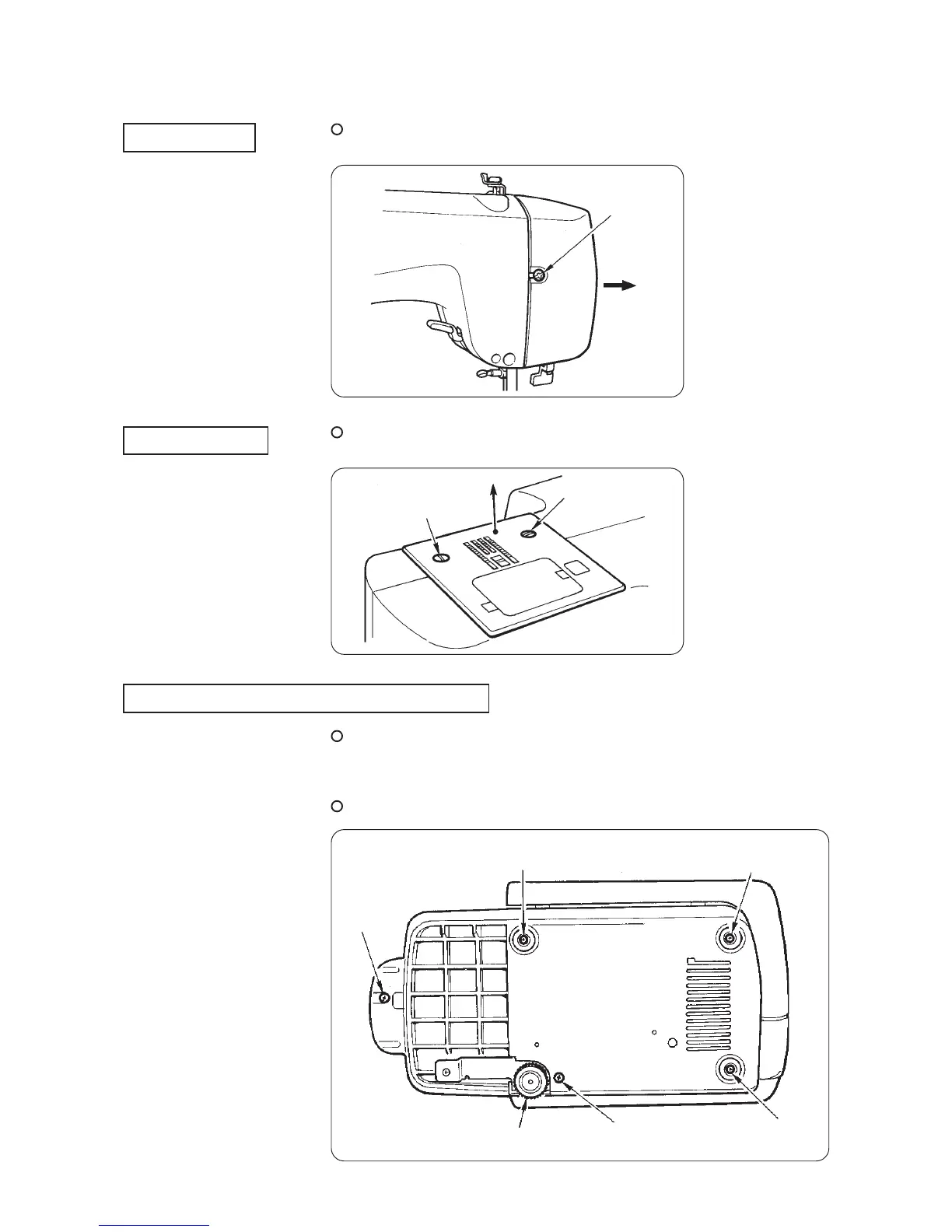

[3] HOW TO REMOVE THE OUTER COMPONENTS
1. Face cover
2. Throat plate
3. Base plate and free arm bottom cover
Remove setscrew [1] in the face cover and
remove the face cover.
Remove setscrews [2] and [3] in the throat plate and
remove the throat plate.
Remove setscrews [4] , [5] and [6] in the rubber cushion of
the base plate, setscrew [7] of the base plate, and height
adjusting screw [8] . (Base plate is removed.)
Remove setscrew [9] in the free arm bottom cover.
[1]
[2]
[3]
[6]
[5]
[4]
[7]
[8]
[9]
