Operation manualⅠ
1-1
Chapter 1 Overview of the Machine
1.1. Overview of this machine
This machine is a mounter that places electronic parts on an electronic circuit board on
which solder is pasted or to which adhesive is applied.
After the head picks up a component from a component supplying device (such as a tape
feeder) and finds the center of the component, it places the component on the
programmed placement coordinates of a board.

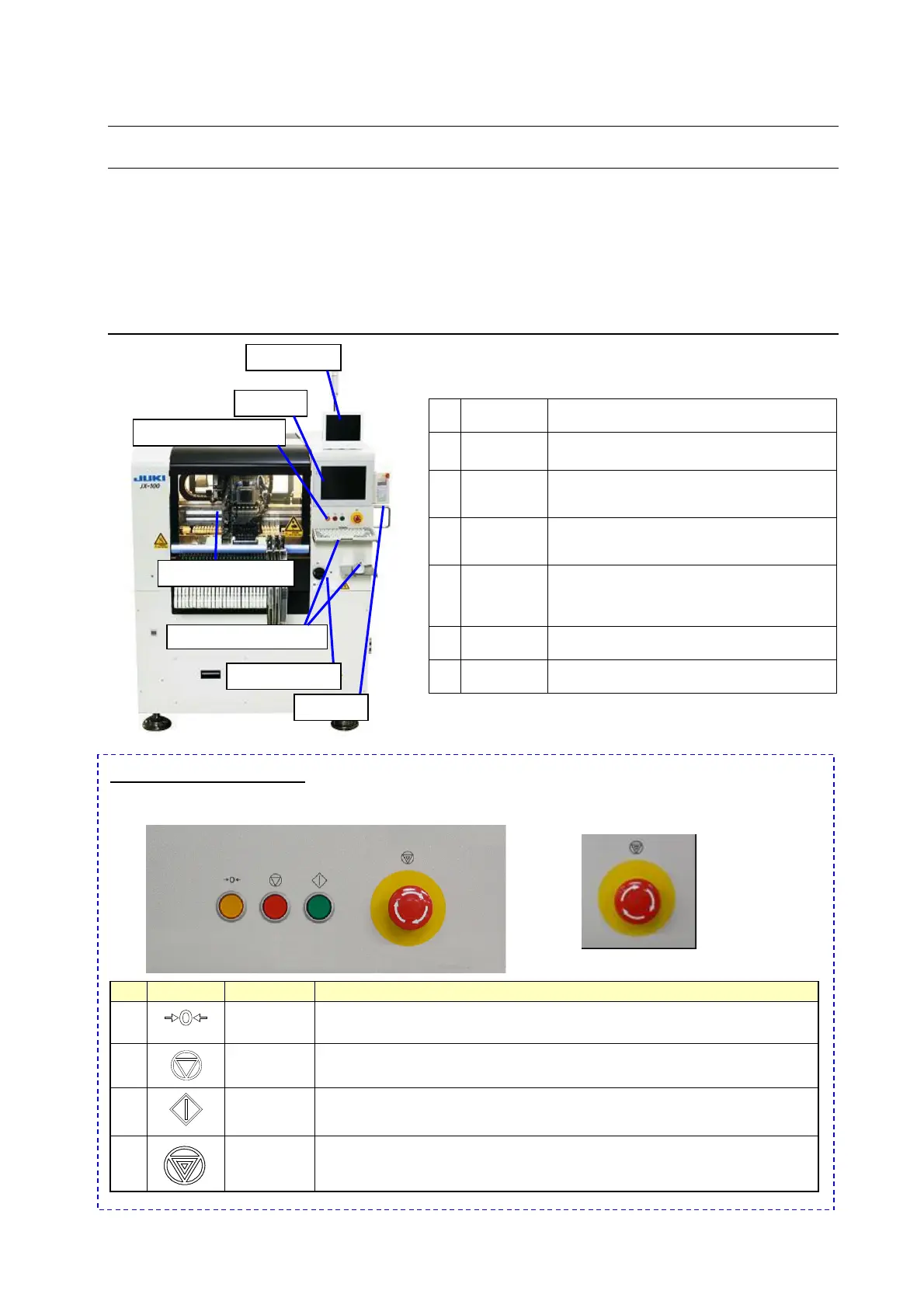

1.2 Configuration of the machine
① Monitor This is a monitor for teaching operation. It
displays an image shot by a camera.
② LCD This is a liquid crystal monitor. The LCD
Is a touch panel type.
③ Operation
panel
This is a collection of switches that operate
the machine. (See “Operation panel”
below.)
④ Safety
cover
If this cover is opened during production, a
servo free status is provided and the
machine is stopped at once.
⑤ Keyboard
Mouse
These devices operate each screen
displayed on the LCD.
Operations of these devices are similar with
those of a personal computer.
⑥ Main
switch
This switch turns on or off the power of the
machine.
⑦ HOD This device positions an image shot by a
camera (that is teaching operation).
✡
Operation panel ✡
<FRONT panel > < REAR panel >
No
Switch
Name Function
1 Origin
This switch is used to make a return to the origin.
2
Pause/Stop
Use this switch to terminate PWB production or another operation.
Press the switch once to put the production run in a pause status. Press the
switch the second time to stop the production run.
3
Start
This is the switch for start。Use to start an actual production run.
4
Emergency
This is the switch for emergency stop.
Use this switch to immediately stop the machine when it malfunctions or when
it may pose risks to your safety. When you turn it in the direction indicated
with the arrow mark, the machine is recovered from this emergency stop state.
① Monitor
② LCD
③ Operation panel
⑤ Keyboard/ Mouse
④ Safety cover
⑥ Main switch
⑦HOD
