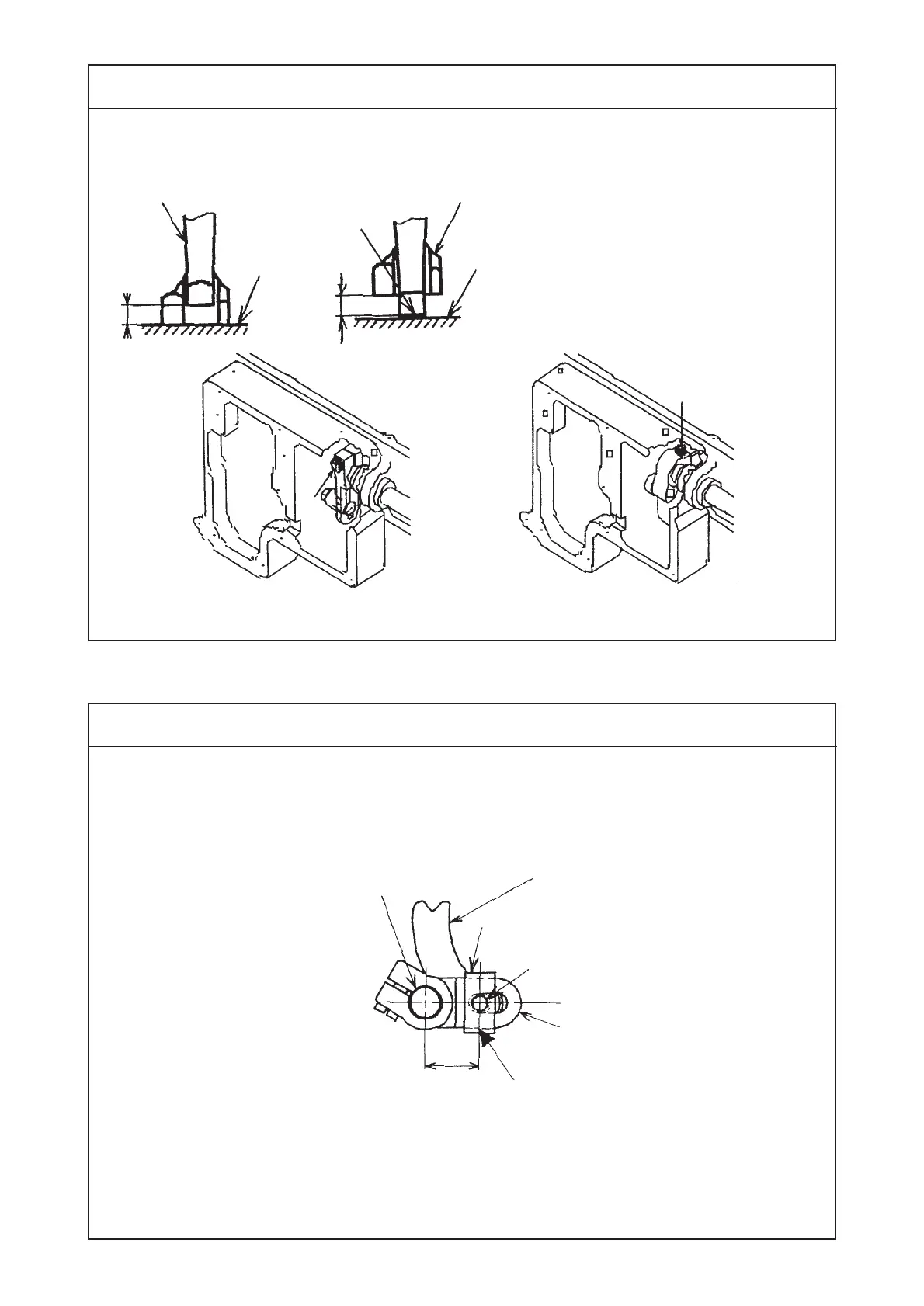

Standard Adjustment
Standard Adjustment
(11) Horizontal feed arm
2) Alternate momentum
12
3
3
A
B
Top surface of
feed dog
Top surface of
throat plate
Top surface of
throiat plate
Conditions
: Feed amount : 0 mm
: Amount of alternate vertical movement : standard
™
In case of LS-1340 and LS-1341
™
In case of LS-1342 and LS-1342-7
1
2
3
18
±
0.5 mm
Horizontal feed shaft
Engraved marker line
Horizontal feed arm stopper
17
19
Table of Contents
Specifications
1
Standard Adjustment
2
Needle Entry Position
2
Longitudinal Position of the Feed Dog
2
Lateral Position of the Feed Dog
4
Height of the Feed Dog
4
Needle-To-Hook Timing
6
Height of the Hook
8
Adjusting the Inner Hook Guide
8
Lift of the Presser Foot
10
Hand Lifter
10
Knee Lifter
10
Feed Cam Timing
12
Horizontal Feed Cam Timing
12
Top Feed Cam Timing
14
Feed Motion
16
Amount of Alternate Vertical Movement
16
Alternate Momentum
18
Horizontal Feed Arm
18
Stitch Length of Normal/Reverse Feed
20
Balancer (LS-1340 and LS-1341 Only)
20
Position of the Reverse Feed Control Lever
22
Safety Clutch
22
Standard Adjustment of Thread Trimmer Components (Ls-1342-7)
24
Thread Trimmer Device
24
Vertical Position of the Moving Knife
24
Position of the Fixed Knife
24
Position of the Solenoid
26
Thread Trimmer Cam
26
Thread Trimmer Cam Timing
28
Alternate Vertical Dial
28
Installing Position of the Detection Switch of the Amount of Alternate Vertical Movement
28
Adapting SC-380 to LS-1342/1342-7
30
Installation of the Optional Parts
32
Automatic Reverse Feed Device (LS-1340, LS-1341, LS1342)
32
Removing the Window Plate (Removing Parts List)
32
Removing the Reverse Feed Control Lever (Removing Parts List)
32
Installing the Reverse Feed Link Hinge Screw (List 1)
32
Installing the Reverse Feed Control Lever (List 2)
33
Installing the Automatic Reverse Feed Device (List 3)
34
Installing the Touch-Back Switch (List 4)
35
Installing the Pneumatic Components (in Case of Installing the Touch-Back Switch Only) (List 5)
35
Automatic Presser Foot Lifter
36
Installing the Automatic Presser Foot Lifter
36
Installing the Pneumatic Device Components
37
DL Device (LS-1342)
39
Installing the DL Device
39
Installin Procedure of the DL Device after Set-Up of the Machine
39
Installing the 5-Step Switch
40
Knee Lifter Shaft (Pedal Type)
40
Installing Procedure of the Knee Lifter Shaft (Pedal Type) after Set-Up of the Machine
41
Binder Kit
42
Installing Procedure of the Binder Kit after Set-Up of the Machine
42
Portion to Which Locktite Is Applied
44
Selective Parts and Consumable Parts
45
Engraved Marker Dots on the Handwheel
46
Lubrication Route Diagram
46
Table of Troubles and Corrective Measures
47
With Reagard to Sewing
47
With Regard to Thread Trimming
50
Drawing of the Table
55
