JUKI LS-1342 - Position of the Reverse Feed Control Lever; Safety Clutch

−22 −
Standard Adjustment

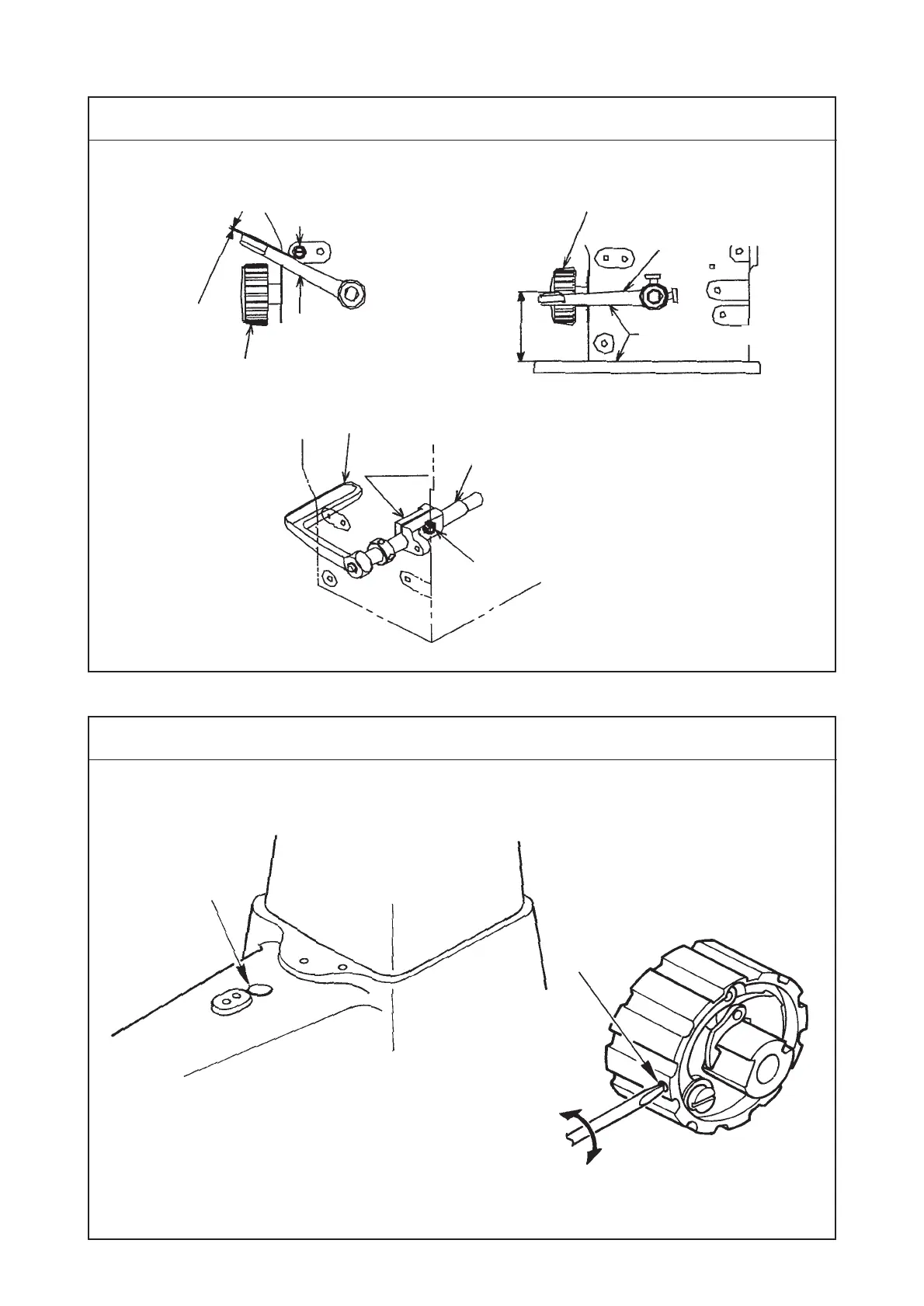

(14) Position of the reverse feed control lever
1
2
3
1±0.5 mm
1
52.5 ± 1 mm
™ In case of LS-1342-7 ™ In case of LS-1340, LS-1341 and LS-1342
Stitch dial
Stitch dial
Reverse feed control lever
Feed
regulator
Reverse feed lever shaft
Standard Adjustment
(15) Safety clutch
1
2
A
B
To be almost flush
