[For the V-belt type]

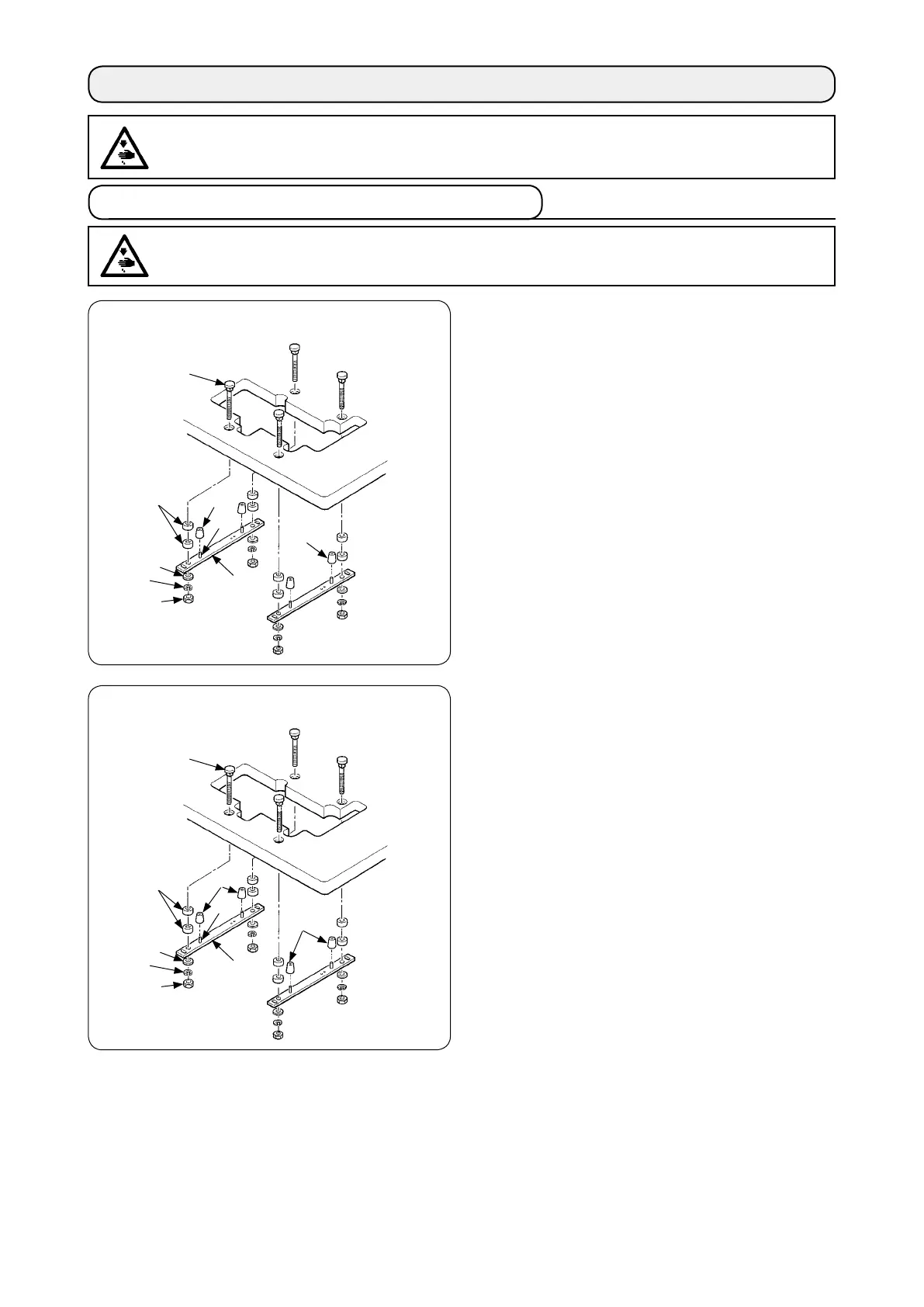

Attach the supporting board and the rubber seats as shown
in the illustration and properly install the sewing machine.
Bolt
Spacer
Washer
Spring washer
Nut
Supporting board
Spring pin
Rubber cushion (Black) × 3
Rubber cushion (Gray) × 1
1. Installing the machine head onto the table
Semi-submerged type
WARNING :
Do not insert the power plug of the motor into the receptacle until all works have been completed. There
is a danger of injury by being caught in the machine.
WARNING :
The weight of the sewing machine is more than 46 kg. Be sure to perform the work with two persons or
more in case of unpacking, transportation or installation.
.
INSTALLATION
[For the direct-drive type]
Attach the supporting board and the rubber seats as shown
in the illustration and properly install the sewing machine.
Bolt
Spacer
Washer
Spring washer
Nut
Supporting board
Spring pin
Rubber cushion (Black) × 2
Rubber cushion (Gray) × 2
Semi-submerged type
