– 6 –– 6 –‒ 6 ‒

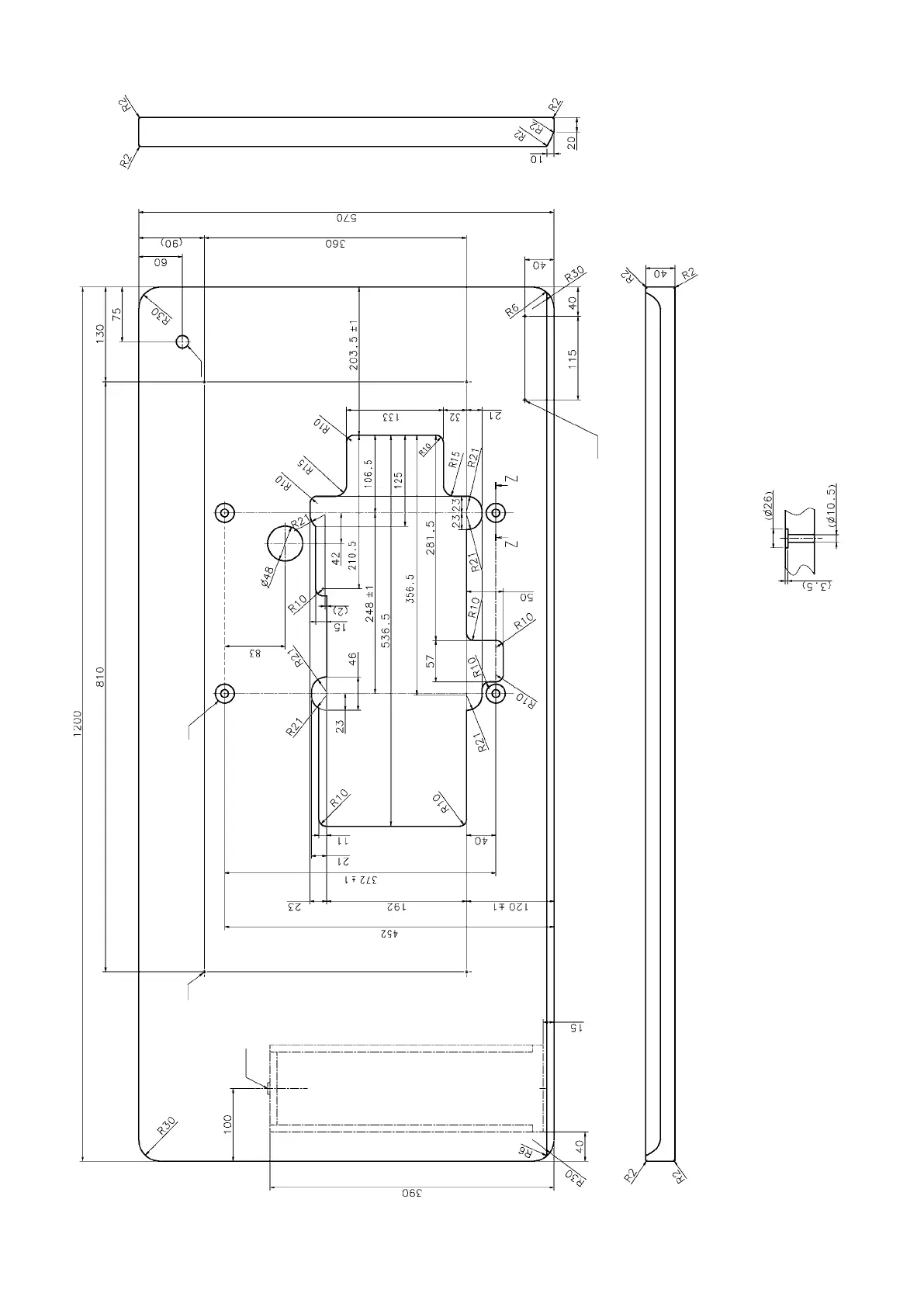

DRAWING OF TABLE (SEMI-SUBMERGED TYPE) For the direct-drive type
󱤨
4 x ø 3.4 on the bottom surface, depth 20
(Drill a hole at the time of set-up.) 󱤩
4 x10.5 hole, depth 26, spot facing depth 3.5
󱤪
2 x ø 3.4 on the bottom surface, depth 10
(Drill a hole at the time of set-up.) 󱤫
Drilled hole 17
󱤬
Installing position of drawer stopper (on the reverse side)
Z-Z(4 locations)
󱤩
󱤪
󱤫
󱤨
󱤬

JUKI MF-7523 Specifications

General

Brand	JUKI
Model	MF-7523
Category	Sewing Machine
Language	English
