JUKI TSC-441 User Manual

– 2 –

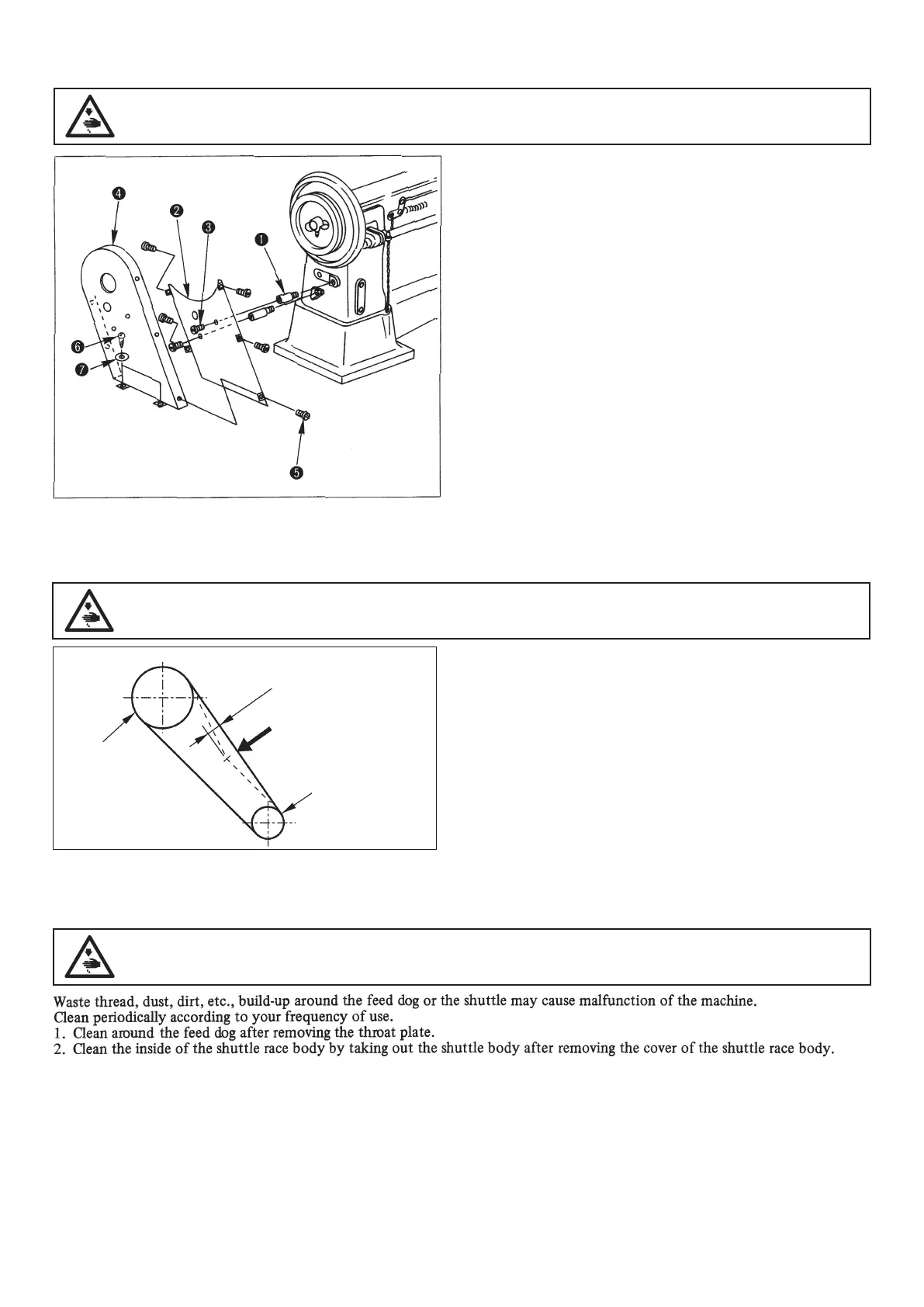

4. INSTALLING THE BELT COVER
WARNING :
To avoid possible personal injury due to abrupt start of the machine, turn off the power to the machine and check to be sure
that the motor has totally stopped rotating in prior.
6. CLEANING
WARNING :
To avoid possible personal injury due to abrupt start of the machine, turn off the power to the machine and check to be sure
that the motor has totally stopped rotating in prior.
5. ADJUSTING THE BELT TENSION
WARNING :
To avoid possible personal injury due to abrupt start of the machine, turn off the power to the machine and check to be sure
that the motor has totally stopped rotating in prior.
Adjust the belt tension with the height of the motor so that the belt sags
10 mm when the center of V belt is applied with a 9.8 N load.
10 mm
9.8 N
Handwheel
Motor pulley
1. Install two belt cover supports
❶
to the machine arm.
2. Install belt cover B
❷
to belt cover supports
❶
using screws
❸
.
3. Hook the V belt on the handwheel.
4. Attach belt cover A
❹
to belt cover B
❷
using screws
❺
.
5. Fix belt cover A
❹
on the table using wooden screw
❻
and washer
❼
.
