4 Operation
Operation with button
Operating mode 1, 1-area
In operating mode 1, 1-area switching and dimming (picture 3) is possible with up to four
buttons on the inputs E1 to E4.

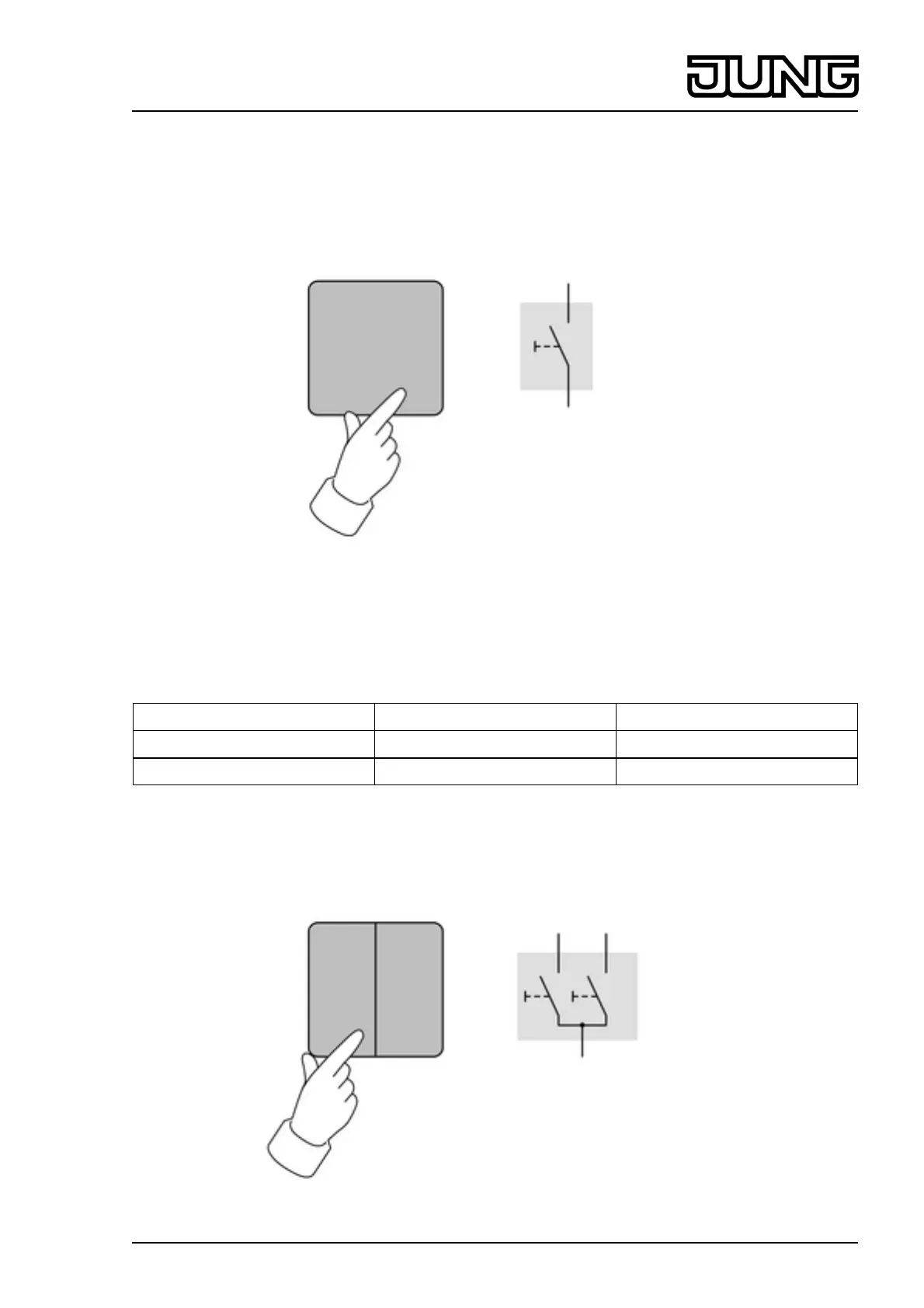

picture 3: Operation, 1-area
Each time the button is pressed, the transmitter is switched, e.g. on/off, brighter/darker.
o Press the button briefly or for a longer period.
Receiver reacts according to the length of time for which the button is pressed (see
following table).
Receiver Short Long
Switching actuator Switch-on/off Switch-on/off
Dimmer actuator Switch-on/off Brighter / darker
Operation with button
Operating mode 2, 2-area
In operating mode 2, 2-area switching, dimming and blind movements (picture 4) are possible
with buttons. The inputs E1/E2 and E3/E4 each forms a channel.
picture 4: Operation, 2-area
3/11
32535013
J:0082535013
13.08.2010
Radio Management
Radio multifunction transmitter
