Step 3: Connect the Grounding Cable

You ground the router by connecting a grounding cable to earth ground and then attaching

it to the chassis grounding points using two SAE 10-32 screws. You must provide the

grounding cables (the cable lugs are supplied with the router). To ground the MX5, MX10,

MX40, or MX80 router:

1. Verify that a licensed electrician has attached the cable lug provided with the router

to the grounding cable.

2. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect

the strap to an approved site ESD grounding point. See the instructions for your site.

3. Ensure that all grounding surfaces are clean and brought to a bright finish before

grounding connections are made.

4. Connect the grounding cable to a proper earth ground.

5. Detach the ESD grounding strap from the site ESD grounding point.

6. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the

ESD points on the chassis.

7. Place the grounding cable lug over the grounding points on the upper rear of the

chassis (see Figure 7 on page 10).

8. Secure the grounding cable lug with the screws. The holes are sized for SAE 10-32

screws.

9. Dress the grounding cable and verify that it does not touch or block access to router

components, and that it does not drape where people could trip on it.

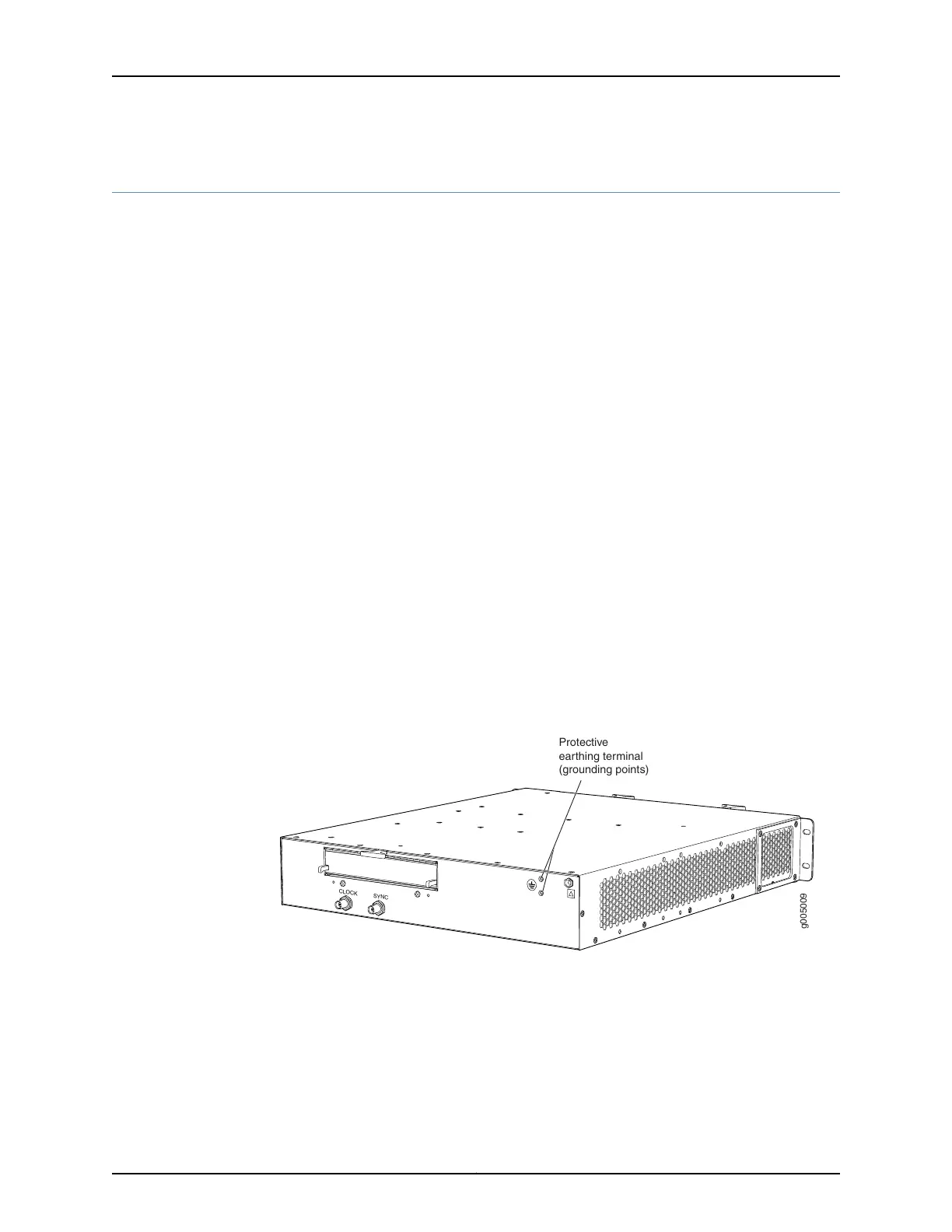

Figure 7: Grounding Points on the MX5, MX10, MX40, or MX80 Router

g005009

CLOCK

SYNC

Protective

earthing ter minal

(grounding points)

MX5, MX10, MX40, and MX80 3D Universal Edge Router Quick Start
