Setting up your TV
Caution
• Turn off all the equipment including the TV before connecting anything.

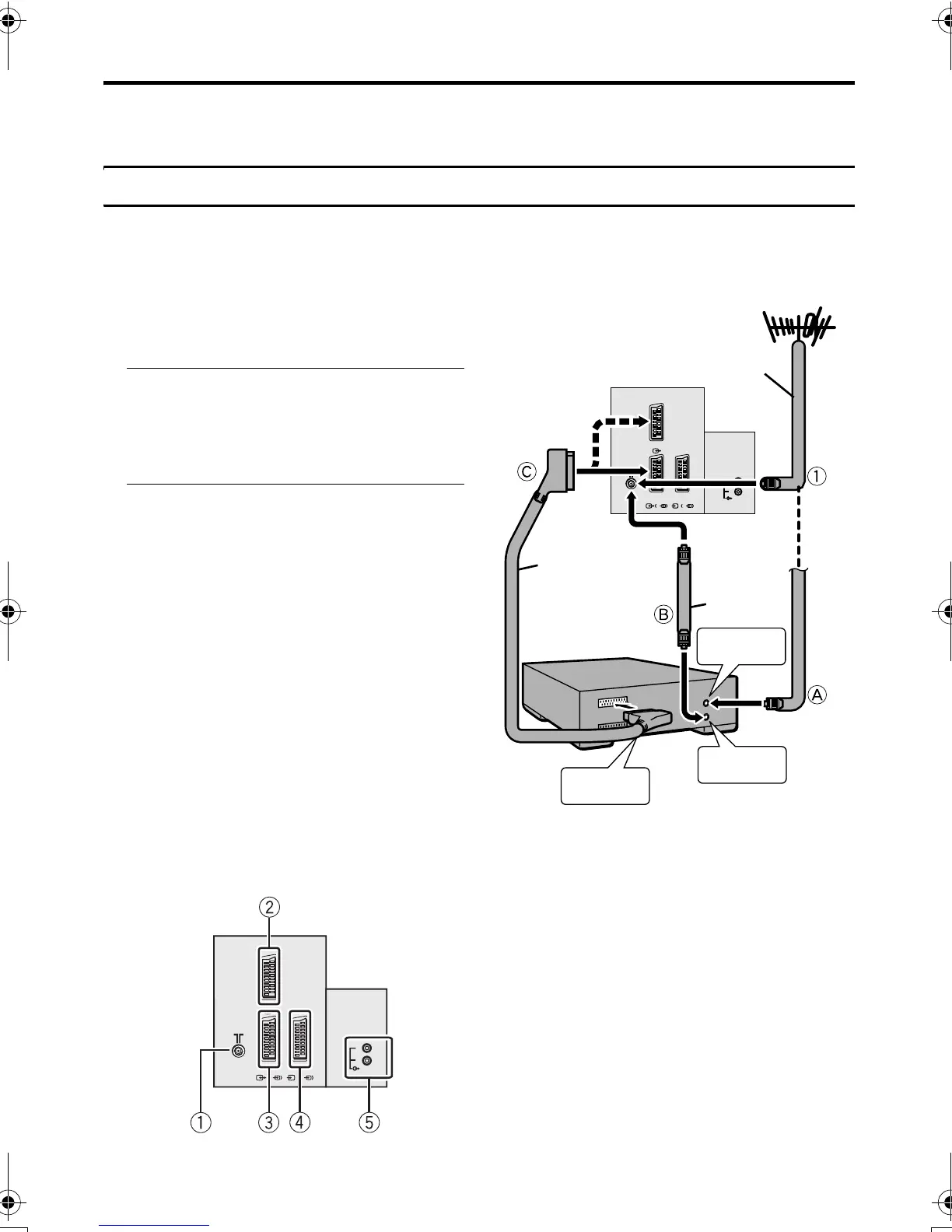

Connecting the aerial and VCR
• The connecting cables are not provided.
• For further details, refer to the manuals provided with the devices to be connected.
If connecting a VCR, follow A
→
B
→
C.
If not connecting a VCR, follow 1.
To operate T-V LINK functions, a T-V
LINK compatible VCR must be connected to
the EXT-2 terminal on the TV. For details
about T-V LINK functions, see “T-V LINK
FUNCTIONS” on page 10.
• A video can be viewed from the VCR
without performing C. For details, refer
to your VCR instruction manual.
• To connect additional external devices,
please see “Additional preparation” on
page 37.
• To connect speakers and amplifier, please
see “Connecting Speakers/Amplifier” on
page 38.
• When a decoder is connected to a T-V
LINK compatible VCR, set the
DECODER (EXT-2) function to ON. For
details, see “DECODER (EXT-2)” on
page 33. Otherwise, you will not be able
to view scrambled channels.
Rear Panel
1 Aerial socket (6)
2 EXT-1 terminal (6, 34, 37)
3 EXT-2 terminal (6, 10, 34, 37)
4 EXT-3 terminal (34, 37)
5 AUDIO OUT terminal (38)
EXT-2
S
EXT-3
S
R
AUDIO OUT
L
EXT-1
75-ohm
Coaxial
Cable
21-pin
SCART
Cable
Back of the TV
75-ohm
Coaxial
Cable
AV IN/OUT
Terminal
To Aerial
Output
To Aerial
Input
VCR
Aerial
E
XT
-
2
S
E
XT-
3
S
R
A
U
D
IO
O
U
T
L
EXT-1
