18
Quick Setup
By connecting a Digital TV Receiver, high definition pictures can be displayed on your TV in
their digital form.
RS-232C
SERVICE
ONLY
DIGITAL AUDIO
OPTICAL OUT
INPUT 5 INPUT 2 INPUT 1
UDIO OUT
FOR HDMI 1
R
A
UD
IO INP
UT
L
R
-
AU
D
I
O
-L
UDIO OUT
AUDIO OUT
R
-
A
U
D
I
O
-
L
DTV Decoder
HDMI to DVI Cable
fter the connections have been made,
tighten the screw to secure the cables.
TV Rear Panel
LR
AUDIO OUT
DIGITAL OUT
TV Rear Panel

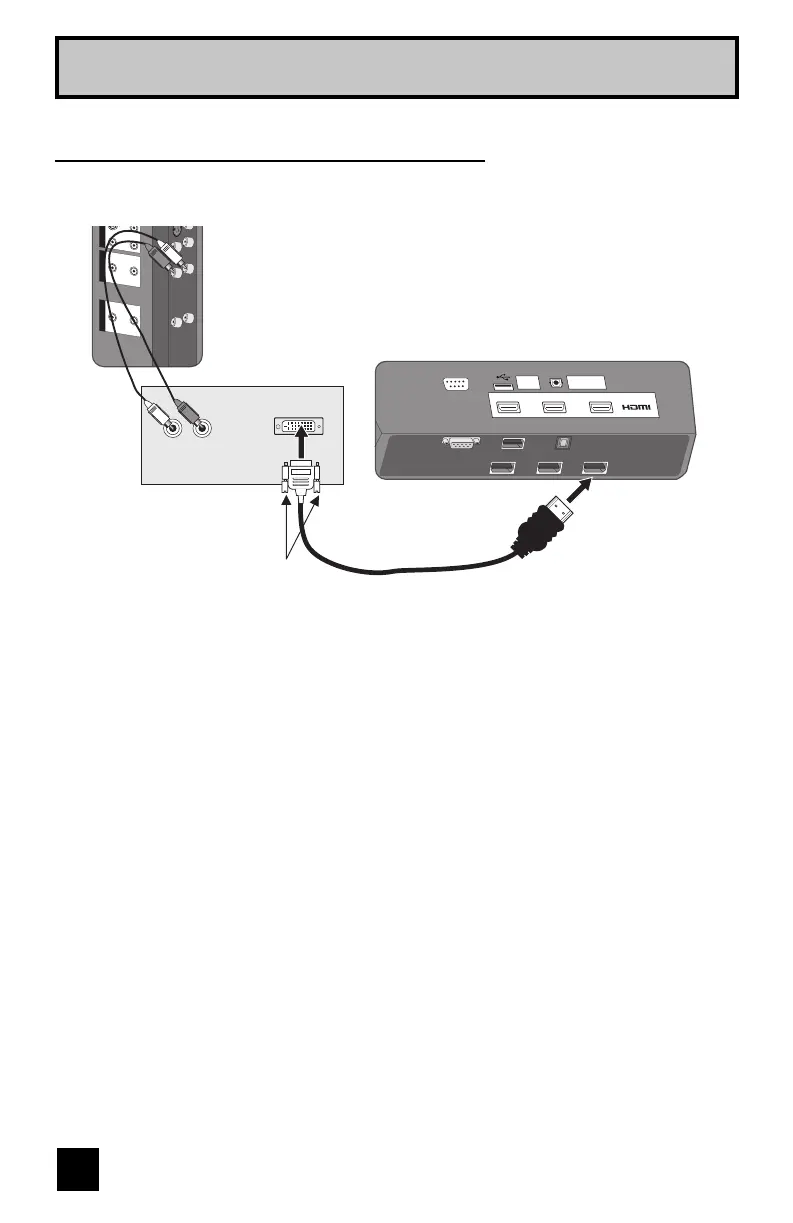

Connecting to a Digital TV Receiver
1) Connect the HDMI to DVI Cable from the DIGITAL OUT on the back of your DTV decoder to
the HDMI INPUT-1 on the back of the TV.
2) Connect a red cable from the DTV decoder RIGHT AUDIO OUT to the RIGHT AUDIO INPUT
HDMI AUDIO IN "R" on the back of the TV.
3) Connect a white cable from the DTV decoder LEFT AUDIO OUT to the LEFT AUDIO INPUT
HDMI AUDIO IN "L" on the back of the TV.
• Personal computer compatibility cannot be guaranteed.
• Use an HDMI to DVI cable (commercially available) in order to digitally connect the television
with a DTV decoder.
Notes:
• If 480p signals (640x480 or 720x480) are displayed on the screen, the horizontal balance
may be slightly shifted. Access the “HDMI SIZE” in the INITIAL SETUP menu to adjust it.
(Refer to page 30.)
• When you do the above connection, set "VIDEO-1 AUDIO" in the INITIAL SETUP menu to
"ANALOG". See "VIDEO-1 AUDIO", page 30.
• The Analog Audio input can only be used with the HDMI INPUT-1.
• When setting the “VIDEO-1 AUDIO - ANALOG/DIGITAL” menu setting on the TV, please note
that this setting only effects the HDMI INPUT-1 jack and that if you use a DVI to HDMI adapter
this connection must be made to the HDMI INPUT-1 along with analog audio cables.
To Next Page
