No. 52016 41

AV-21W83

AV-21W93

AV-21W93B

USING P.W. BOARD & REMOTE CONTROL UNIT

MAIN PWB (include CRT SOCKET PWB) SCH-1088A-BK SCH-1111A-BK SCH-1078A-BK

REMOTE CONTROL UNIT RM-C1016-1H RM-C1011-1H RM-C1012-1H

AV-21W83/BK AV-21W93/BK AV-21W93B/BK

P.W.B ASS’Y

Model

EXPLODED VIEW PARTS LIST-1

!

Ref.No. Part No. Part Name Description Local

17 GG10198-005A-H FRONT CABI ASS’Y Inc. No. 19, 20, 23 [AV-21W83/BK]

17 GG10198-003A-H FRONT CABI ASS’Y Inc. No. 19, 20, 23 [AV-21W93/BK, AV-21W93B/BK]

18 GG30042-001B-H LED LENS

19 GG30043-001B-H POWER KNOB

20 GG20022-001A-H CONTROL KNOB

21 GG30044-001B-H E.E. WINDOW

22 GG40023-001A-H JVC MARK

23 CM35235-003-H SPRING

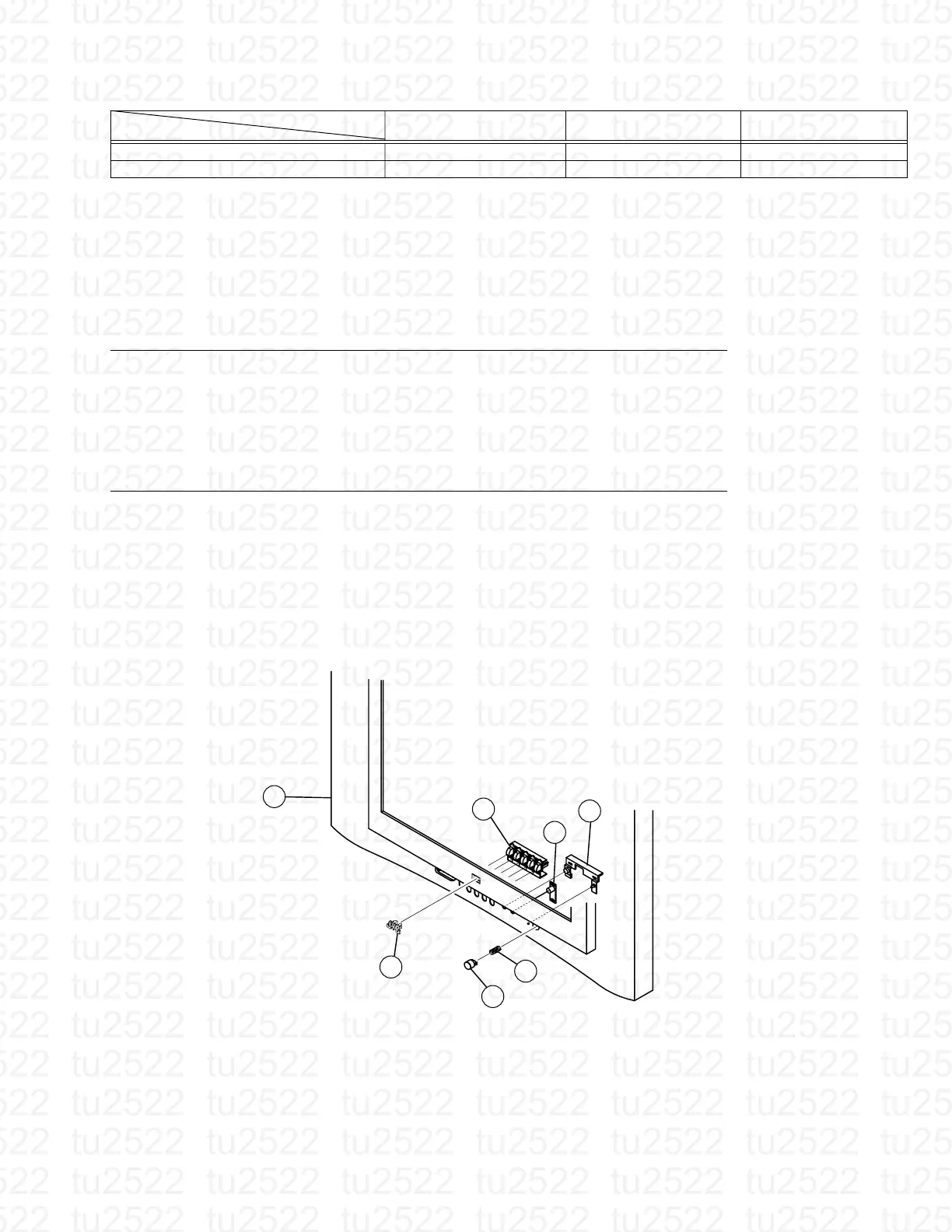

EXPLODED VIEW-1

17

20

22

19

23

18

21
