36
AV-32/28T5SK/BK/SR/BR / LCT1794-001A-U / ENGLISH
Additional preparation

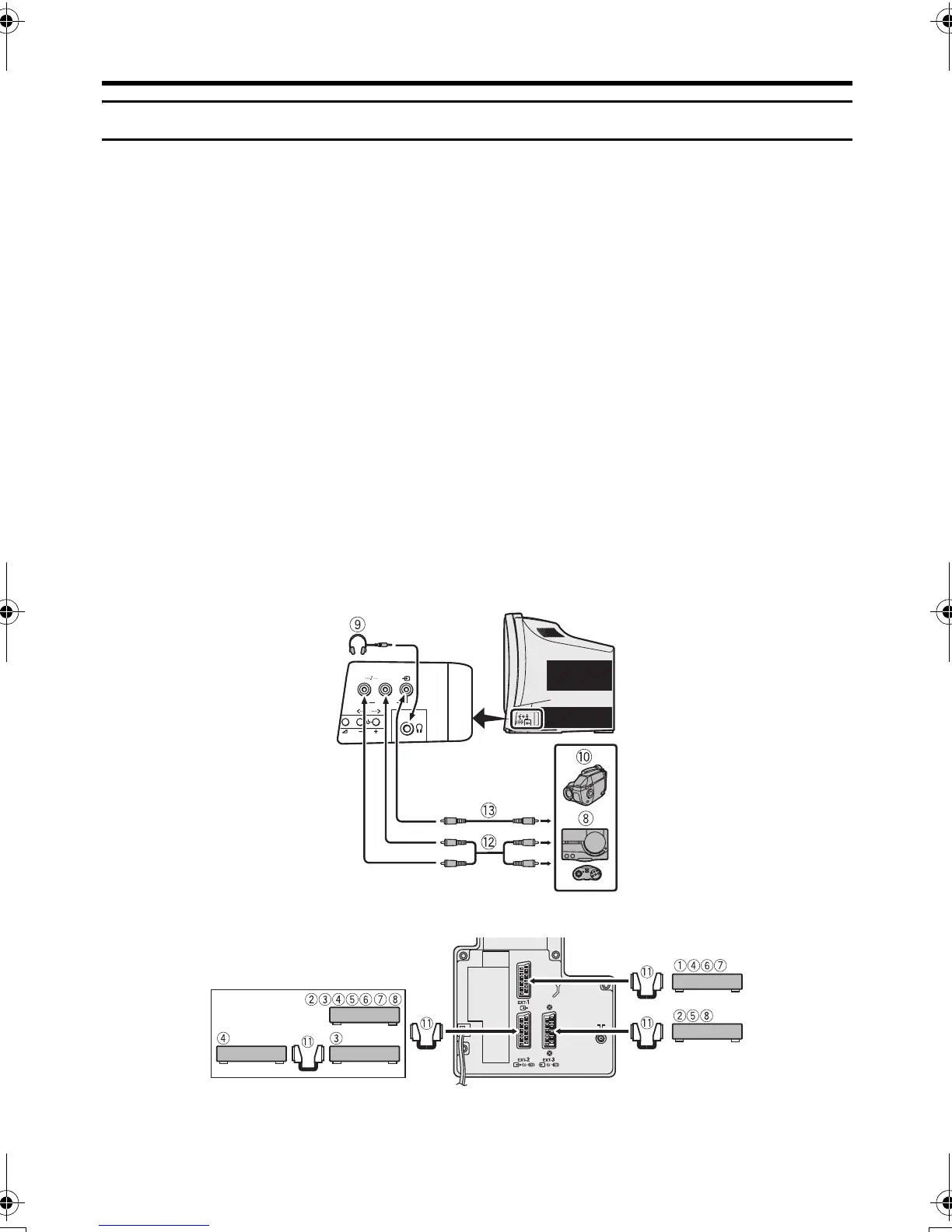

Connecting external equipment
Connect the equipment to the TV, making
the correct rear panel and front panel
connections.
Before connecting anything:
• Read the manuals that came with the
equipment.
Depending on the equipment, the
connection method may be different from
the diagram. Also, the equipment settings
may need to change depending on the
connection method.
• Turn off all the equipment including the
TV.
• The “Specifications” on the back cover
give the details of the EXT terminals. If
you are connecting equipment not listed
in the following connection diagram, see
the table to choose the best EXT terminal.
• Connecting cables are not supplied.
1 VCR (composite signal)
2 VCR (composite signal/S-VIDEO signal)
3 T-V LINK compatible VCR (composite
signal/S-VIDEO signal)
4 Decoder
5 DVD player (composite signal/S-VIDEO
signal)
6 DVD player (composite signal/RGB
signal)
7 TV game (composite signal/RGB signal)
8 TV game (composite signal)
9 Headphones
0 Camcorder (composite signal/S-VIDEO
signal)
- SCART cable
= Audio cable
~ Video cable
R
L
/
MONO
P
EXT-4
R
L
/
MONO
P
EXT-4
Back of the TV
Side of the TV
AV-32&28T5SKSR_Eng.book Page 36 Tuesday, January 18, 2005 2:51 PM
