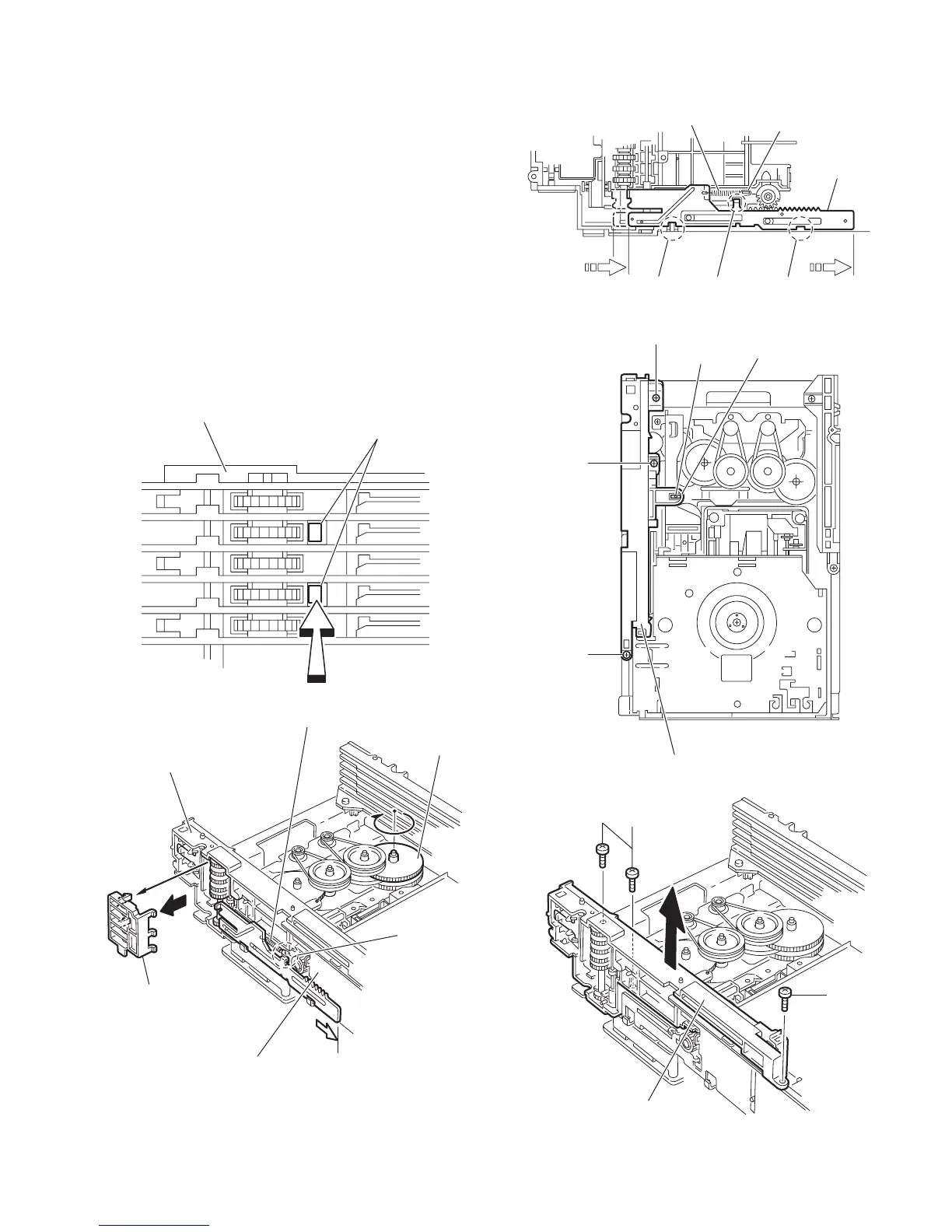

3.2.12 Removing the side (R) assembly

(See Fig.23 to 27)

• Remove the tray assemblies and DVD servo board.

(1) From the inside of the side (R) assembly, release the two

tabs aa of the gear cover and remove the gear cover out-

ward. (See Figs.23 and 24.)

(2) From the right side of the DVD changer mechanism as-

sembly, remove the elevator spring attached to the hook

ab of the loader assembly. (See Figs.24 and 25.)

(3) From the top side of the DVD changer mechanism assem-

bly, turn the gear 1 clockwise to move the elevator cam

rearward. (See Fig.25.)

(4) Move the two slots ac and joint ad of the elevator cam and

remove the elevator cam outward. (See Fig.25.)

(5) Remove the three screws P and detaches the side (R) as-

sembly upward. (See Figs.26 and 27.)

Note:

When reattaching the side (R) assembly, make sure to fit the

shaft (part ae) into the slot of the select lever. (See Fig.26.)

Fig.23

Fig.24

Fig.25

Fig.26

Fig.27

Side(R) assembly

Elevator spring

Gear cover

Gear 1

Loader assembly

Elevator cam

Elevator spring

acad

Side(R) assembly

Select lever

Side(R) assembly
