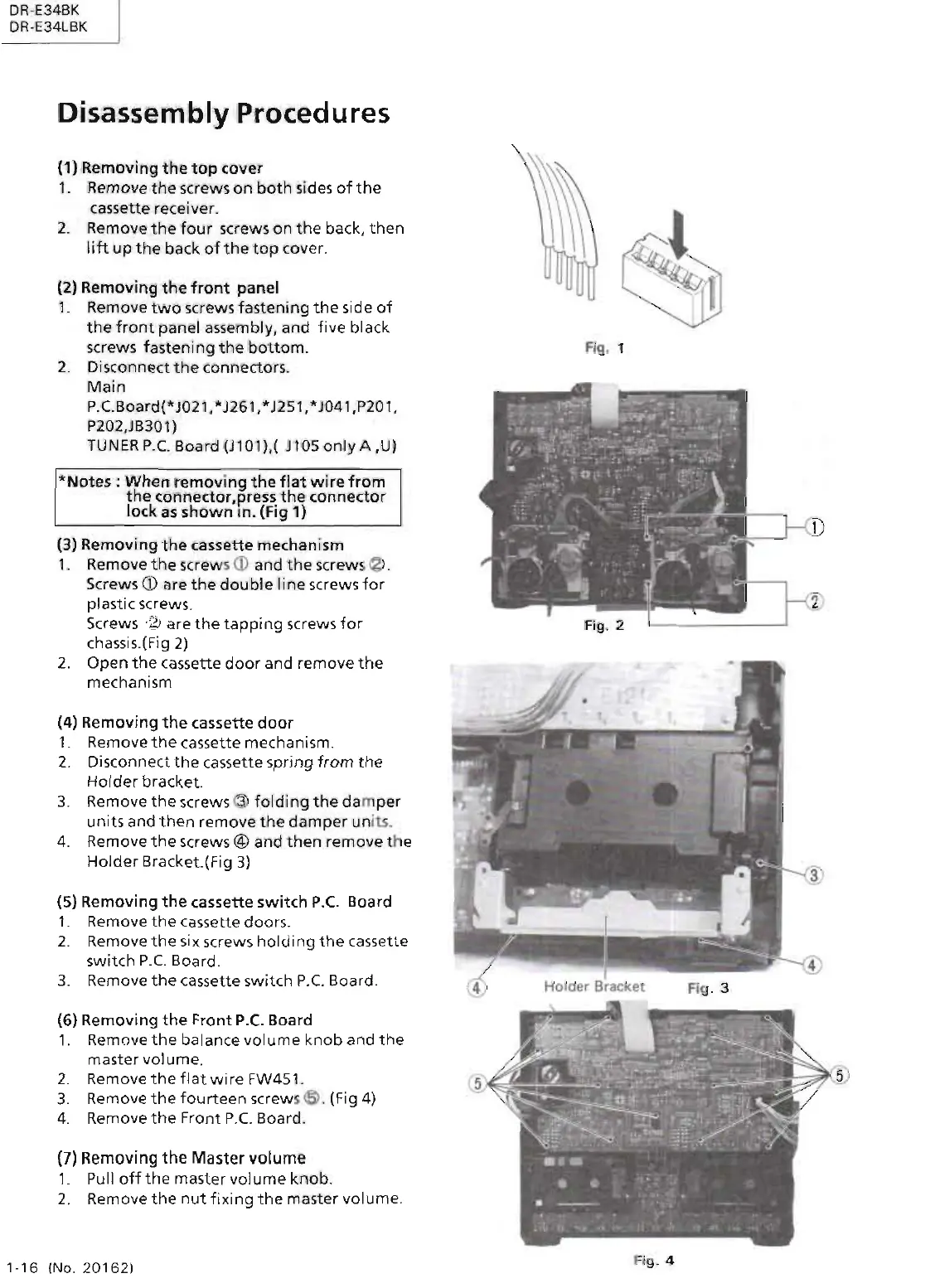

Disassembly Procedures
(1) Removing the top cover
1. Remove the screws on both sides of the
cassette receiver .
2. Remove
the four screws on the back, then
lift up the back of the top cover.
(2)
Removing the front panel
1. Remove two screws fastening the side of
the front panel assembly, and five black
screws fastening the bottom.
2. Dis connect the connectors.
Main
P.C.Board(* J021 , * J261,* J251,* J041,P201 ,
P202,JB301)
TUNER P.C. Board (J 101 ),( J 1 OS only A ,U)
*Notes: When removing the flat wire from
the connector.press the connector
lock as shown an. (Fig 1)
(3) Removing the cassette mechanism
1. Remove the screws CD and the screws 0 .
Screws CD are the double line screws for
plastic screws.
Screws
· ?J are the tapping screws for
chassis.(Fig 2)
2. Open the cassette door and remove the
mechanism
(4) Removing the cassette door
1. Remove the cassette mechanism.
2.
Disconnect the cass ette spring from the
Holder bracket.
3. Remove the screws (3) fo ldi ng the da m per
units and then remove the damper un its.
4. Remove the screws@ and then remove t he
Holder Bracket.(Fig 3)
(5) Removing the cassette switch P.C. Board
1. Remove the cassette doors.
2. Remove the six screws holding the cassette
switch P. C. Board.
3. Rem ove the cassette switch P.C. Board.
(6) Removing the Front P. C. Board
1. Remove the balance volume knob and the
master volume.
2. Remove the flat wire FW451 .
3. Remove
the fourteen screw s® . (Fig 4)
4. Remove
the Front P.C. Board .
(7) Removing the Master volume
1. Pu ll off the master volume knob .
2. Remove the nut fixing th e m aster volume.
1-16 {No. 20162)
Fi g, 1
Holder Bracket
Fig. 3
Fi g. 4
