4-way remote control system
The remote control system can be selected from MAKE
contact system / TRIGGER PULSE system / RS-485 /
RS-232C. The RS-232C system can be converted to RS-485
on the monitor for cascade signal output.
Compact, all-in-one design
This slim, space-
saving, all-in-one
design enables easy
installation on a shelf
or in a rack. For
added convenience, a
VESA standard
mounting (100 mm x
100 mm) is provided.
A rugged metal base
with 4-hole pattern for
additional screws
assures secure installation and prevents monitor from being
displaced or falling.
Adjustable stand
The provided metal tabletop stand can be tilted up (6°) or
down (6°) for easy viewing and more flexible positioning. You
can also install the monitor directly on a platform — useful
when you need to install in a location with a height limit (for
example, on a shelf or in a rack).
LCD protection filter (option)
To keep the LCD panel clean and protect it from scratches or
external shock, an optional protection filter is available. This
filter also suppresses any reflection from the panel.
Metal chassis design
A metal cabinet provides rugged durability for use in a variety
of professional applications.
Connector guard construction
With a speaker grill and enforced edge design, protruding
volume controls and switches are sheltered to prevent mis-
operation and damage. On the back of the monitor, the
concave design helps protect the connectors. This attractive,
efficient design is both practical and safe.
Others
Built-in stereo speakers
Easy installation
Rugged, durable design
System flexibility

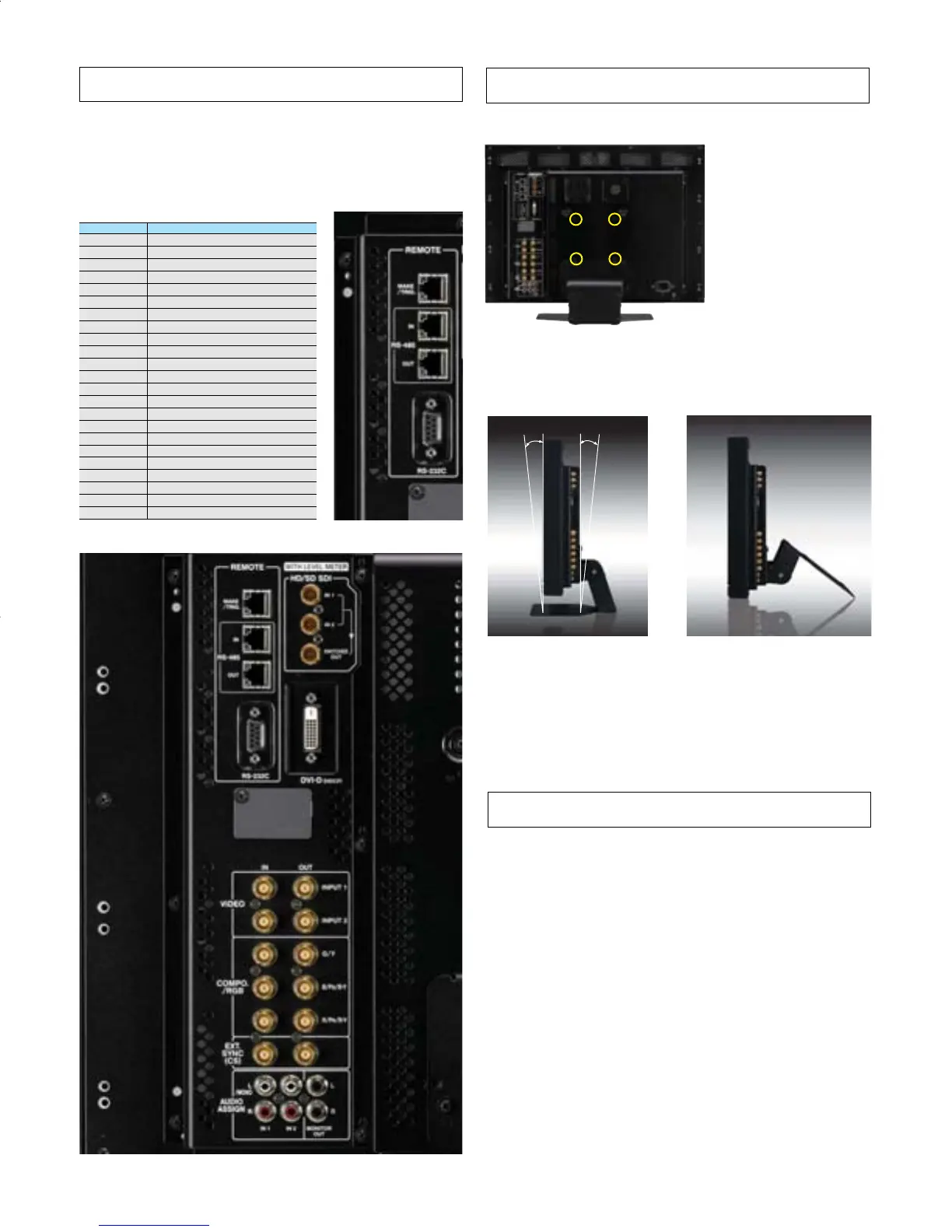

Rear Panel
Photo: DT-V24L1D
For customization, select 8 functions and assign them to 8 pin terminals.
*TRIGGER pulse control only
Showing the gold-plated connectors on the DT-V24L1D model
* On the 20" monitor, only SDI connectors are gold-plated.
Functions controlled by MAKE/TRIGGER system
Display Functions to be controlled
COLOR OFF Color off
ASPECT Changes the aspect ratio.
A.MARKER AREA MARKER display
S.MARKER SAFETY MARKER display
TIME CODE Time code display
1:1 Displays in 1:1 mode.
SCR CHECK* Screen check
I/P MODE* IP MODE
SDI 1 Changes the input to SDI 1.
SDI 2 Changes the input to SDI 2.
DVI Changes the input to DVI.
COMP. /RGB Changes the input to COMPO. /RGB.
VIDEO 1 Changes the input to VIDEO 1.
VIDEO 2 Changes the input to VIDEO 2.
EXT.SYNC Changes the sync signal.
TALLY Controls the tally lamp.
TALLY SEL Selects the color of the tally lamp.
MONI. NAME MONITOR NAME
MUTING Muting on/off
MARK.SEL Selects the items of AREA MARKER.
L.METER Audio level meter display
STATUS Status display
- - - No function
6° 6°
VESA standard mounting hole
As a conventional desktop stand,
showing 6˚ of tilt in both directions
As a rear support when monitor is resting
directly on a flat surface
DT-V20/24L06.12.192:08PMページ8
