JVC DT-V24L1U Brochure & Specs

JV
N
Printed in Japan
ICN-0356
“JVC” is the trademark or registered trademark of Victor Company of Japan, Limited.
DISTRIBUTED BY
E & O E. Design and specifications subject to change without notice.

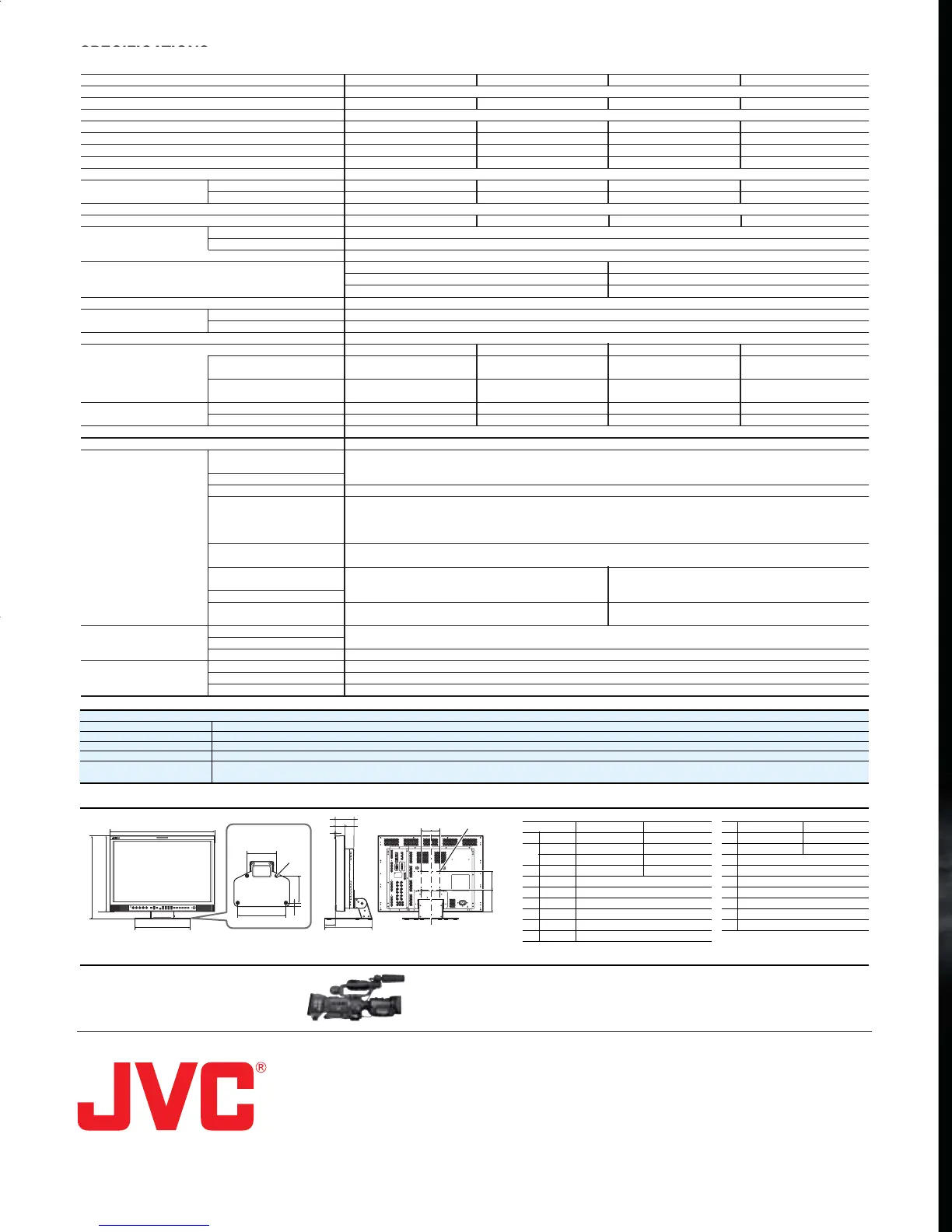

DIMENSIONS
SPECIFICATIONS
 Protection Filter
TS-W24F1 (for 24" monitor)
TS-W20F1 (for 20" monitor)
 GY-HD250
ProHD Compact Shoulder Camcorder for Studio and ENG Applications
 HDV and DV compatible
 True 24p recording
 Uncompressed 720/60p live signal output
The DT-V20L
Input format
Video PAL, SECAM, NTSC, BW 50/60Hz
Component/RGB 576/50i, 480/60i, 576/50p, 480/60p, 720/24p, 25p, 30p, 50p, 60p, 1035/60i, 1080/50i, 60i, 1080/24psf, 30psf, 1080/24p, 25p, 30p
SDI/HD-SDI
*
6)
576/50i, 480/60i, 720/24p, 25p, 30p, 50p, 60p, 1035/60i, 1080/50i, 60i, 1080/24psf, 30psf, 1080/24p, 25p, 30p
DVI-D with HDCP (Video) 480/60i, 576/50i, 480/60p, 576/50p, 720/50p, 60p, 1035/60i, 1080/50i, 60i, 1080/24p, 25p, 30p, 50p, 60p, 640 x 480@60
DVI-D (PC) VGA60, WVGA60, SVGA60, XGA60, WXGA60 (1280 x 768), SXGA60 (1280 x 1024), 1920 x 1080@60, 1280 x 720@60, WSXGA+60 (1680 x 1050), UXGA60 (1600 x 1200),
WUXGA60 (1920 x 1200)
OPTIONS
*6): DT-V24L1D, DT-V20L1D only
1
2
3
4
5
6
!
@
#
$
%
^
&
*
0
7
8
9
 Interchangeable HD lenses
 3-CCD camera system with 720p HD CCDs
JVC PROFESSIONAL PRODUCTS COMPANY
DIVISION OF JVC AMERICAS CORP.
1700 Valley Road, Wayne, N.J. 07470
TEL: (973) 317-5000, (800) 582-5825 FAX: (973) 317-5030
Internet Web Site http://www.jvc.com/pro
E-mail: proinfo@jvc.com
JVC CANADA INC.
21 Finchdene Square, Scarborough, Ontario M1X 1A7
TEL: (416) 293-1311 FAX: (416) 293-8208
Internet Web Site http://www.jvc.ca/en/pro/
General
Model DT-V24L1D DT-V20L1D DT-V24L1 DT-V20L1
Type Multi-format HDTV/SDTV Studio Monitor
Screen Size 24" 20" 24" 20"
Aspect Ratio 16:9
Resolution (Video) 1920 x 1080 1680 x 945 1920 x 1080 1680 x 945
LCD Panel 24" wide, active matrix TFT 20" wide, active matrix TFT 24" wide, active matrix TFT 20" wide, active matrix TFT
Effective Screen Size (W x H) 51.84 x 32.4 cm 43.34 x 27.09 cm 51.84 x 32.4 cm 43.34 x 27.09 cm
Resolution (Video+Data) 1920 x 1200 (WUXGA) 1680 x 1050 (WSXGA+) 1920 x 1200 (WUXGA) 1680 x 1050 (WSXGA+)
Display Colors 16.7 millon
Viewing Angle Horizontal 176˚ 170˚ 176˚ 170˚
Vertical 176˚ 170˚ 176˚ 170˚
Brightness 400 cd/m
2
Contrast Ratio 1000:1 800:1 1000:1 800:1
Horizontal/Vertical Horizontal 31.469 kHz to 75.000 kHz
Frequency (PC signals) Vertical 60 Hz ± 5 Hz
Signals out of the range of accepted frequences may not be displayed. In this case, "Out of range" is shown.
Applicable Standard HD SDI: BTA S-004B, SMPTE292M ––
SD SDI: ITU-R BT.656: 525/625, SMPTE259M: 525 ––
EMBEDDED AUDIO: SMPTE299M, SMPTE272M ––
Audio Output Internal: 1.0 W + 1.0 W (L/R)
Environmental Conditions Operating temperature 41˚F to 95˚F (5˚C to 35˚C)
Operating humidity 20% to 80% (non condensing)
Power Requirements AC 120/220 to 240 V, 50 Hz/60 Hz, power cord holder
Rated Current 1.15 A 1.00 A 1.15 A 1.00 A
Dimensions (WxHxD)
Without stand
22-1/4" x 16-1/8" x 4" 18-7/8" x 14" x 4" 22-1/4" x 16-1/8" x 4" 18-7/8" x 14" x 4"
(excluding protrusions) (564 x 408 x 99 mm) (477 x 354 x 99 mm) (564 x 408 x 99 mm) (477 x 354 x 99 mm)
With stand (low position)
22-1/4" x 17-3/4" x 9-5/8" 18-7/8" x 15-5/8" x 9-5/8" 22-1/4" x 17-3/4" x 9-5/8" 18-7/8" x 15-5/8" x 9-5/8"
(564 x 448.6 x 243 mm) (477 x 394.6 x 243 mm) (564 x 448.6 x 243 mm) (477 x 394.6 x 243 mm)
Weight Excluding stand 19.1 lbs. (8.7 kg) 16.3 lbs. (7.4 kg) 19.1 lbs. (8.7 kg) 16.3 lbs. (7.4 kg)
Including stand 25.5 lbs. (11.6 kg) 22.7 lbs. (10.3 kg) 25.5 lbs. (11.6 kg) 22.7 lbs. (10.3 kg)
Provided Accessories AC power cord, stand, power cord holder
Input/Output Terminals
Video
Video 1 Composite video signal input/output: 1 line, BNC x 2, 1 V (p-p), 75 ohms
(IN and OUT are connected with a bridge connection (auto termination)
Video 2
DVI-D (HDCP) DVI-D signal input (compatible with HDCP): DVI connector x 1 (compatible with DDC2B)
COMPO./RGB
Analog component signal/analog RGB signal input/output: 1 line, BNC x 6
(G/Y, B/Pb/B-Y, R/Pr/R-Y)
Video signal: G/Y: 1 V (p-p), 75 ohms (sync signal included), B/Pb/B-Y, R/Pr/R-Y: 0.7 V (p-p),
75 ohms (IN and OUT are connected with a bridge connection (auto termination)
EXT. SYNC (CS)
Composite sync signal input/output: 1 line, BNC x 2, 0.3 V (p-p) to 4 V (p-p), 75 ohms (bipolar tri-signal, negative pole binary
signals, BB) (video signals excluded) (IN and OUT are connected with a bridge connection (auto termination)
HD/SD SDI (IN 1) Digital signal input (compatible with EMBEDDED AUDIO):
Auto detection, 1 line, BNC x 1
––
HD/SD SDI (IN 2)
HD/SD SDI (SWITCHED OUT)
Digital signal output (compatible with EMBEDDED AUDIO):
1 line (switched out), BNC x 1
––
Audio AUDIO ASSIGN (IN 1)
Analog audio signal input: 1 line, RCA x 2, 500 mV (rms), high impedance
AUDIO ASSIGN (IN 1)
AUDIO ASSIGN (MONITOR OUT) Analog audio signal output: 1 line, RCA x 2, 500 mV (rms)
External Control MAKE/TRIGGER RJ-45 x 1 (8-pin)
RS-485 RJ-45 x 2 (IN/OUT) (8-pin)
RS-232C D-sub (9-pin) x 1
DT-V24L1D/DT-V24L1 DT-V20L1D/DT-V20L1
1 22-1/4" (564) 18-7/8" (477)
2
High position 17-3/4" (448.6) 15-5/8" (394.6)
Low position 16-3/8" (413.6) 14-1/4" (359.6)
3 16-1/8" (408) 14" (354)
4 11-7/8" (300)
5 6-3/8" (160)
6 4-ø5/16" (4-ø8)
7 5-3/4" (145.7)
8 7/8" (20)
9 10-1/4" (260)
DT-V24L1D/DT-V24L1 DT-V20L1D/DT-V20L1
0 4" (99) 4" (99)
! 2-1/8" (51.9) 2-1/8" (52.7)
@ 1/16" (1.5)
# 2-1/8" (51)
$ 9-5/8" (243)
% 3-15/16" (100)
^ M4, 7/16" (10)
& 3-15/16" (100)
* 4-5/8" (117)
Unit: inches (mm)
