(No.MB004)1-9
3.1.2 Removing the bottom case (A)
(See Fig.3)
• Prior to performing the following procedures, remove the rear
cover.
(1) From the bottom side of the main body, remove five screws
C and screw D attaching the bottom case (A).
(2) Remove the bottom case (A) in the direction of the arrow
while lifting the rear section of the bottom case (A).
3.1.3 Removing the bottom case (B)
(See Fig.3)
(1) From the bottom side of the main body, remove the two
screws E attaching the bottom case (B).
(2) Release the claw b of the bottom case (B) and remove the
bottom case in the direction of the arrow.
Note :
When turning the main body upside down to remove the bot-
tom case (A) and the bottom case (B), place a cushion be-
neath the main body so as not to scratch the top case
assembly, volume control knob or other parts.

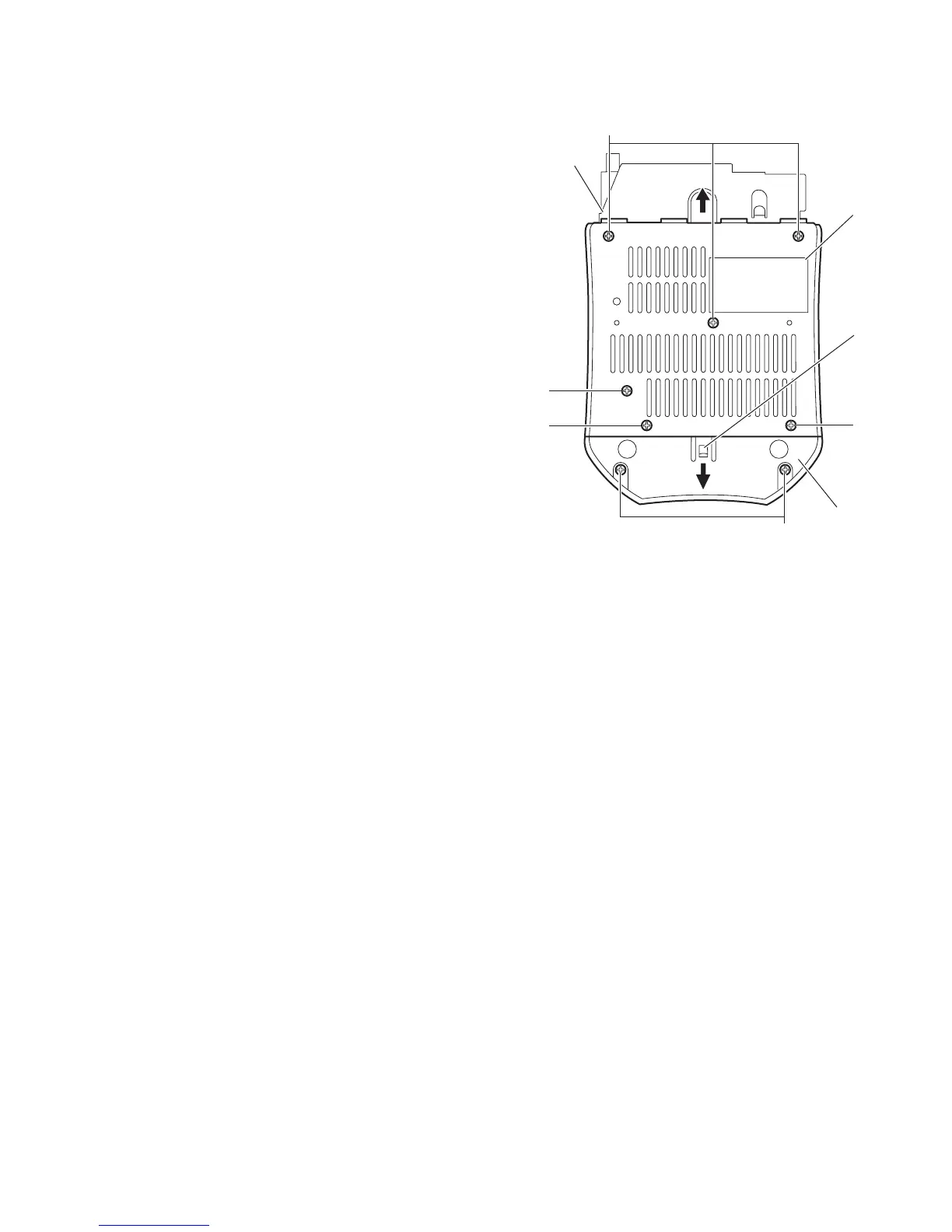

Fig.3
Bottom
case(B)
C
C
C
E
Claw b
D
Bottom
case (A)
Bottom
chassis
To Next Page
