EN 65

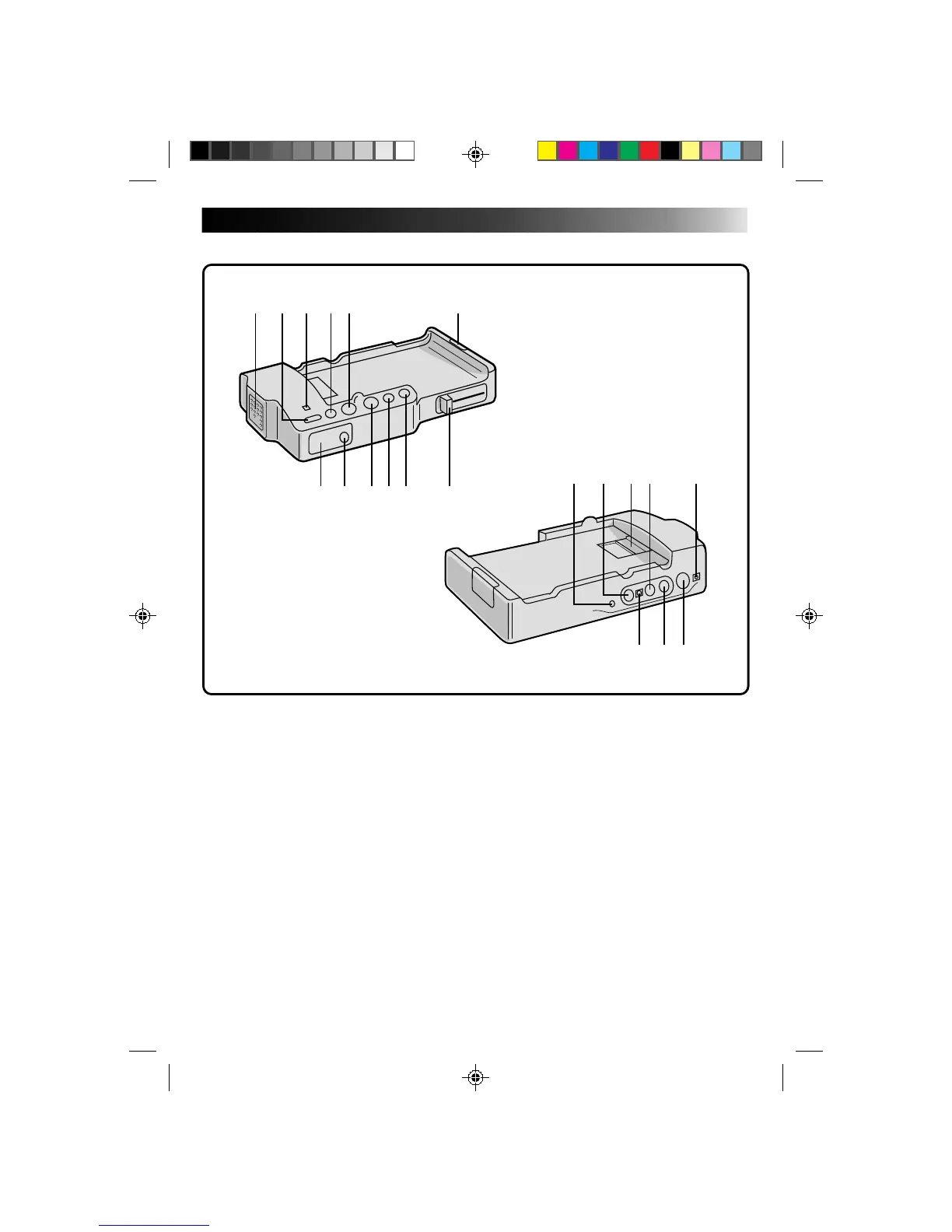

Docking Station
@ Remote Control Sensor ....................... Z pg. 48
# JLIP Jack (Joint Level Interface Protocol)
In the future, it will be used to connect the
camcorder to a device such as a personal
computer.
$ Video Output Jack .............................. Z pg. 43
% Multi Jack ........................................... Z pg. 42
^ Audio Output Jack [L] ......................... Z pg. 43
& DC Input Jack ..................................... Z pg. 43
* S-Video Output Jack ........................... Z pg. 43
( Audio Output Jack [R] ........................ Z pg. 43
) DC Output Jack
For future use.
1 Fan
Comes on automatically when camcorder is
attached; serves to cool the unit down. Take care
not to interfere with the blades.
2 EDIT Button ........................................Z pg. 54
3 CHARGE Indicator.............................. Z pg. 42
4 PAUSE Button .....................................Z pg. 48
5 PLAY Button ........................................ Z pg. 48
6 RELEASE Button .................................. Z pg. 42
7 Lock Lever ..........................................Z pg. 42
8 Fast-Forward (FF) Button ................ Z pg. 2, 54
9 Rewind (REW) Button ......................... Z pg. 54
0 STOP Button .......................................Z pg. 50
! EDIT Jack ............................................Z pg. 52
12345 6
@! 098 7
#$%^ &
)(*
To Next Page
