1-9

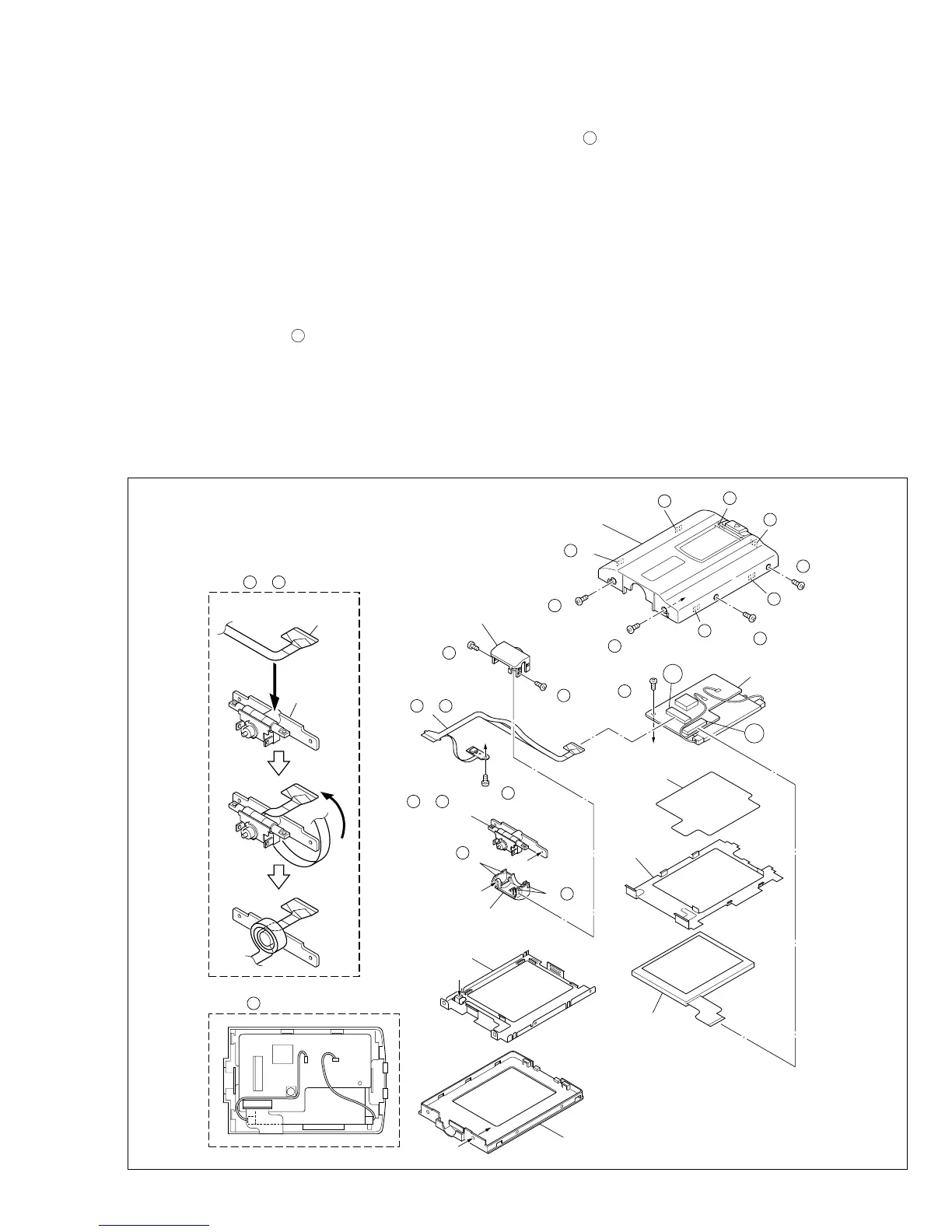

Fig. 1-4-1
1.4
$
MONITOR ASSEMBLY
Note:
The shape of the monitor assembly varies by the size
of the LCD screen.
For the 2.5”-type LCD, refer to Fig. 1-4-1.
1.4.1 Disassembly/assembly of monitor assembly
(for 2.5”-type LCD)
Note:
Be careful not to soil or scratch the monitor screen
through the disassembly/assembly work.
1. Remove the four screws 1 to 4 in numerical order. While
disengaging the six hooks (L$a to L$f) in alphabetical
order, remove the monitor cover assembly.
2. Unlock the connector a and then disconnect the FPC
while lifting the hinge assembly upwards to remove it to-
gether with the FPC.
Note
$
a:
For disconnecting the FPC, unlock the connector
first and then lift the hinge assembly upwards.
Accordingly, the FPC is disconnected together
with the hinge assembly.
Note
$
b:
Treat the wires carefully.
3. Remove the screw (5), unplug the FPC from the connec-
tor b , and then remove the LCD BL board assembly,
DIF sheet and bracket (FRM2) in that order.
4. Remove the LCD module.
1.4.2 Disassembly/assembly of hinge assembly
(for 2.5”-type LCD)
1. Remove the three screws (6 to 8), and then remove the
hinge covers (1) and (2) by disengaging a total of four
hooks (L$g, L$h) at the two sides.
2. Separate the SW board assembly and the FPC from the
hinge assembly.
Note
$
c:
When connecting the FPC, arrange the FPC wire
by winding it around the shaft (hinge pin) of the
hinge assembly by two and a half turns while pay-
ing heed to the orientation of the hinge assembly
and FPC.
Note
$
d:
When disassembling/assembling the hinge assem-
bly, pay careful attention to every part not to dam-
age anything.
c
c
a
a
b
b
d
d
MONITOR CASE
BRACKET
(FRM2)
LCD MODULE
LCD BL PWB
HINGE COVER(1)
HINGE ASSY
HINGE COVER(2)
MONITOR COVER
ASSY
a
b
HINGE
FPC
DIF SHEET
BRACKET
(FRM1)
1
(S a)
14
3
(S b)
14
4
(S b)
14
8
(S c)
14
6
(S d)
14
7
(S d)
14
(L c)
14
(L f)
14
(L e)
14
(L d)
14
(L a)
14
(L b)
14
(L g)
14
(L h)
14
NOTE b
14
NOTE c / d
14 14
MONI. FPC ASSY
NOTE c / d
14 14
NOTE c / d
14 14
∗
∗
∗
∗
∗
5
(S c)
14
∗∗
2
(S a)
14
∗∗
∗∗∗
∗∗∗
∗
: 0.069 N
•
m (0.7 kgf
•
cm)
∗∗∗
: 0.147N
•
m (1.5 kgf
•
cm)
∗∗
: 0.098 N
•
m (1.0 kgf
•
cm)
To Next Page
