32 EN

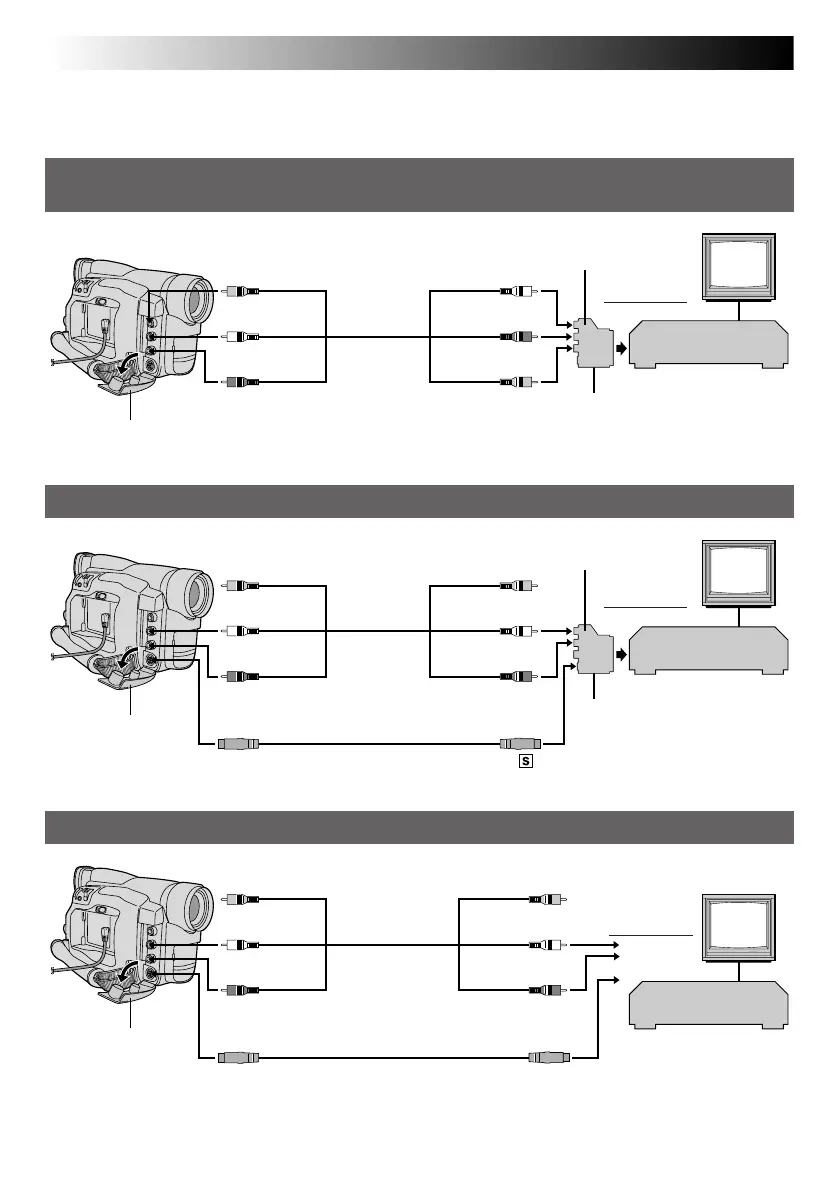

PLAYBACK Basic Connections
These are some basic types of connections. When making the connections, refer also to your VCR and TV
instruction manuals.
TV
VCR
Yellow to
Video Output
Red to Audio Output R
A/V cable (provided)
[RCA plug to RCA plug]
White to
Audio Output L
Yellow to
VIDEO IN
White to
AUDIO L IN
Red to
AUDIO R IN
Yellow:
Not connected
TV
VCR
To TV or VCR
To TV or VCR
Red to Audio
Output R
White to
Audio Output L
White to
AUDIO L IN
Red to
AUDIO R IN
A/V cable (provided)
[RCA plug to RCA plug]
S-Video cable
(provided)
To S-VIDEO IN
The connectors are
located beneath the cover.
The connectors
are located beneath
the cover.
To S-Video Output
Yellow:
Not connected
B. Connection to a TV or VCR equipped only with A/V input connectors
A. Connection to a TV or VCR equipped with an S-VIDEO IN and A/V input (RCA type) connectors
