# REF No. PART No. PART NAME, DESCRIPTION
---------------- ----------------------- -----------------------------------------------------
SECTION 5
PARTS LIST
SAFETY PRECAUTION
Parts identified by the symbol are critical for safety. Replace only with specified part numbers.
******************************
PACKING AND ACCESSORY ASSEMBLY <M1>
1 LY32567-008A PACKING CASE,B,C
LY32567-021A PACKING CASE,A
2 LY32568-001A CUSHION
3 LY30023-008A POLY BAG
4 QPA02003506 POLY BAG
! 5 LYT0930-001A INST.BOOK(EN),A,B
! LYT1017-001A INST.BOOK(EN),C
! LYT0930-002A INST.BOOK(FR),A,B
! LYT1017-002A INST.BOOK(FR),C
! LYT0930-003A INST.BOOK(SP),A,B
! LYT1017-003A INST.BOOK(SP),C
! 6 LYT0931-001A INST.BOOK(SOFT.EN),C
! LYT0931-003A INST.BOOK(SOFT.FR),C
! LYT0931-005A INST.BOOK(SOFT.SP),C
LYT0912-005A INST.BOOK(SOFT.SP),A,B
LYT0912-001A INST.BOOK(SOFT.EN),A,B
LYT0912-003A INST.BOOK(SOFT.FR),A,B
7 LYT0934-001A SHEET(AGREMENT),A,B
8 YU10350 Q.CARD(JCA)
9 BT-51005-5 WARRANTY INF.
15 QPA01703005 POLY BAG
16 QAM0211-001 CABLE ASSY,AUDIO/VIDEO CABLE
17 QQR0918-002 CORE FILTER
18 PEAC0428-150 CABLE ASSY,EDITING CABLE,B,C
19 QQR0491-002 CORE FILTER,B,C
20 QAM0324-001 USB CABLE
21 QQR0491-002 CORE FILTER
! 24 LY20848-001B AC ADAPTER,AP-V12U
25 QQR0917-002 CORE FILTER
! 30 LY32566-001A BATTERY PACK ASSY,BN-V408U-B
31 LY20186-001A SHOULDER STRAP
32 LY20750-001A REMOTE CONTROL UNIT,RM-V717U,B,C
LY42129-001A REMOTE CONTROL UNIT,RM-V715U,A
33 – BATTERY,AAA(R03),X2
34 LY32210-023A CD ROM ASSY,A,B
LY32210-026A CD ROM ASSY,C
35 LY32210-009A CD ROM ASSY
36 LY43322-002A CAP(M)ASSY
37 QAM0404-002 MEMORY CARD,8MB(MMC),A,B
QAM0405-002 MEMORY CARD,16MB(MMC),C
38 BT-51028-1 REGIST.CARD

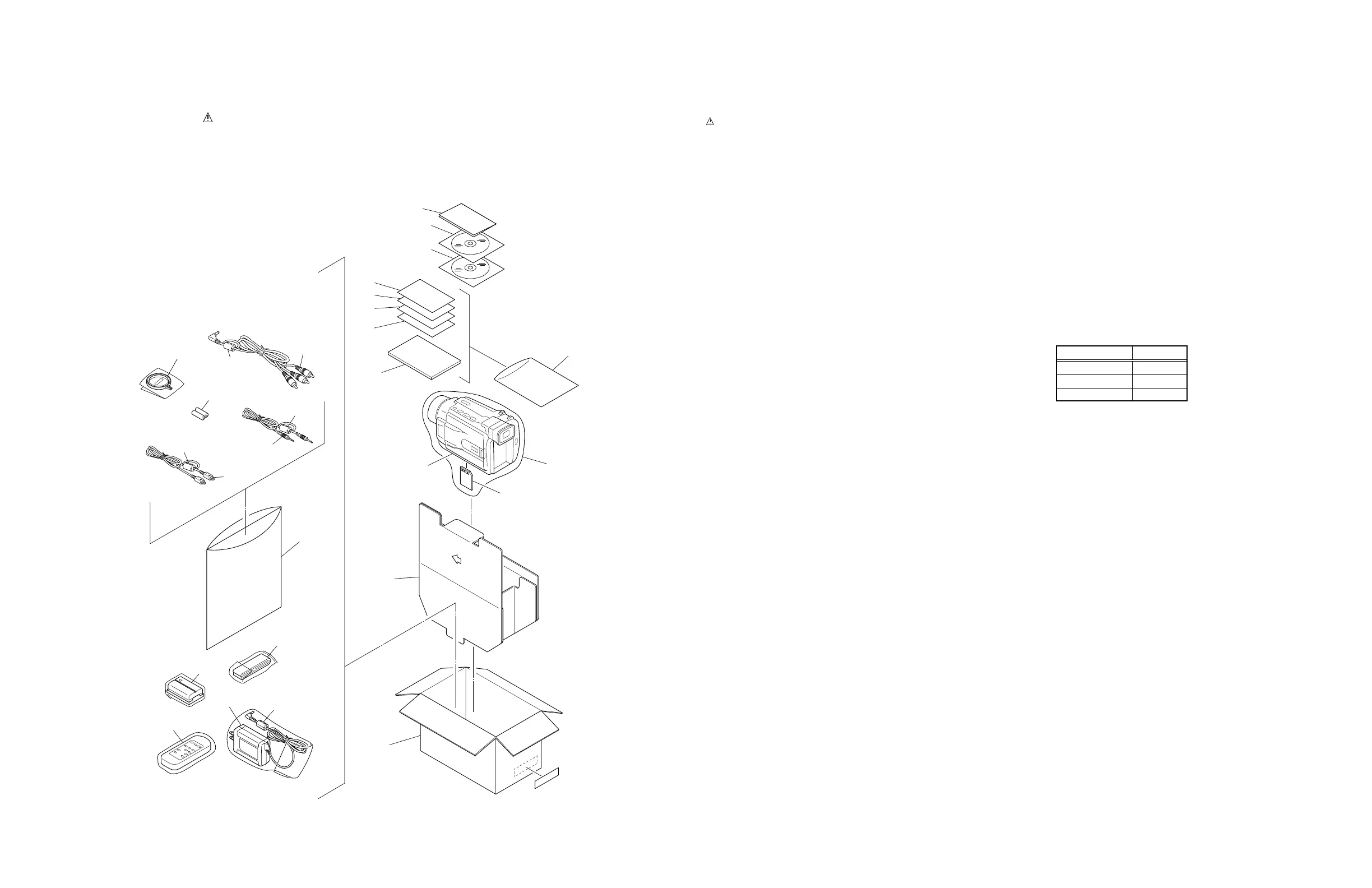

5.1 PACKING AND ACCESSORY ASSEMBLY <M1>
The instruction manual to be provided with this product will differ according to the destination.
5-1 5-2
1
LABEL
(SERIAL)
7
8
9
6
4
15
3
37
5
35
FINAL ASSY
<M2>
2
31
34
33
18
30
32
19
21
20
25
16
17
24
36
38
MODEL MARK
GR-DVL725U A
GR-DVL820U B
GR-DVL920U C
• INSTRUCTIONS
EN ....... ENGLISH
FR ....... FRENCH
SP ....... SPANISH
