22 EN

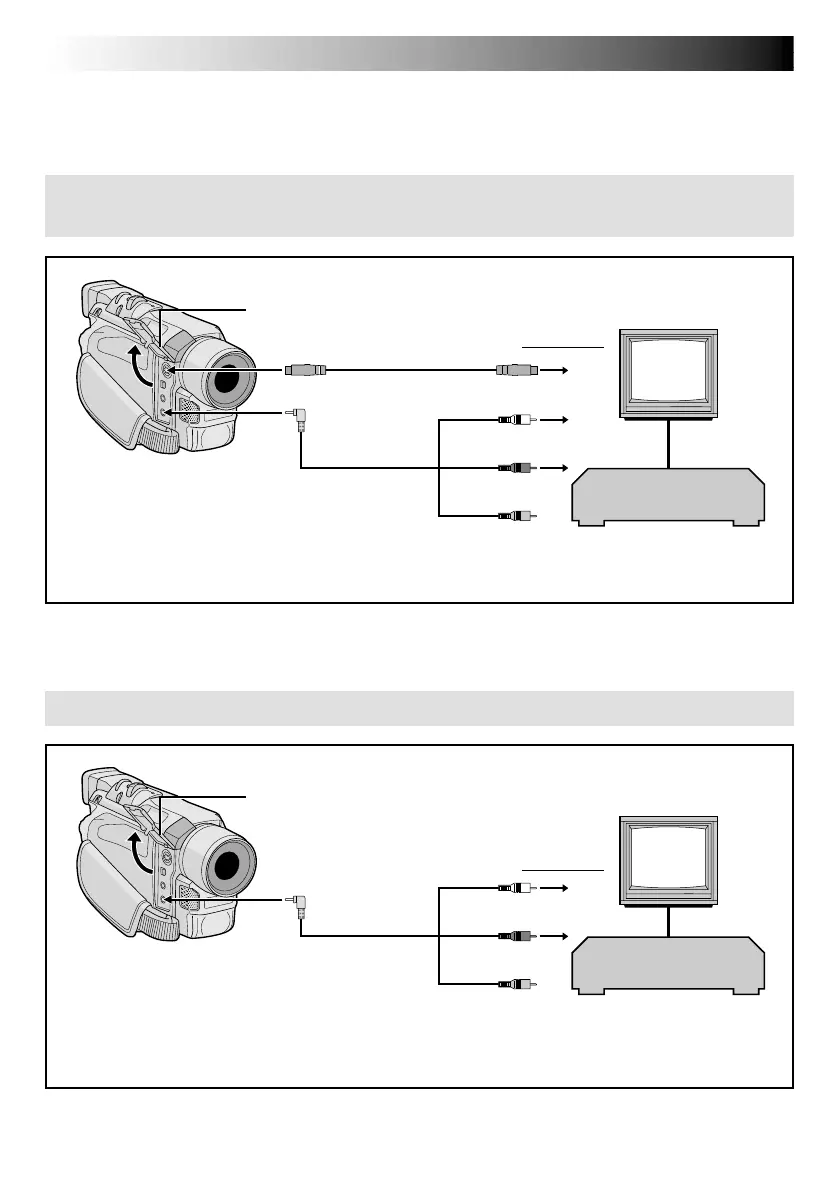

Connections
These are some basic types of connections. When making the connections, refer also to your VCR and TV
instruction manuals.
To S
To AV
Audio/Video cable
(provided)
Connector cover*
White to
AUDIO L IN**
Red to
AUDIO R IN**
To S-VIDEO IN
To TV or VCR
S-Video cable
(optional)
TV
VCR
Audio/Video cable
(provided)
To AV
Red to
AUDIO R IN**
TV
VCR
To TV or VCR
White to
AUDIO L IN**
* When connecting the cables, open this cover.
** The Audio cable is not required for watching still images only.
Connector cover*
Yellow:
Not connected
Yellow to
VIDEO IN
A.Connection to a TV or VCR equipped with an S-VIDEO IN and A/V input
connectors
B. Connection to a TV or VCR equipped only with A/V input connectors
* When connecting the cables, open this cover.
** The Audio cable is not required for watching still images only.
VIDEO PLAYBACK
(cont.)
NOTE:
In order to maintain optimum performance of
the camcorder, provided cables may be
equipped with one or more core filter. If a cable
has only one core filter, the end that is closest to
the filter should be connected to the camcorder.
NOTE:
In order to maintain optimum performance of
the camcorder, provided cables may be
equipped with one or more core filter. If a cable
has only one core filter, the end that is closest to
the filter should be connected to the camcorder.
