EN 57
3
SUPPLY POWER
The Docking Station must be powered by the
AC adapter whether the battery is in the
camcorder or not.
•The Docking Station cannot function using
the camcorder’s battery.
NOTES:
●
When using the provided DC cord, make sure
you connect the end of the cable with the core
filter to the Docking Station. The core filter
improves performance of equipment.
●
Never touch the Multi connector on the
camcorder located beneath the cover, or on the
Docking Station, with your hand. If the pins are
damaged, the connectors will become
unusable due to contact failure.
CONTINUED ON NEXT PAGE

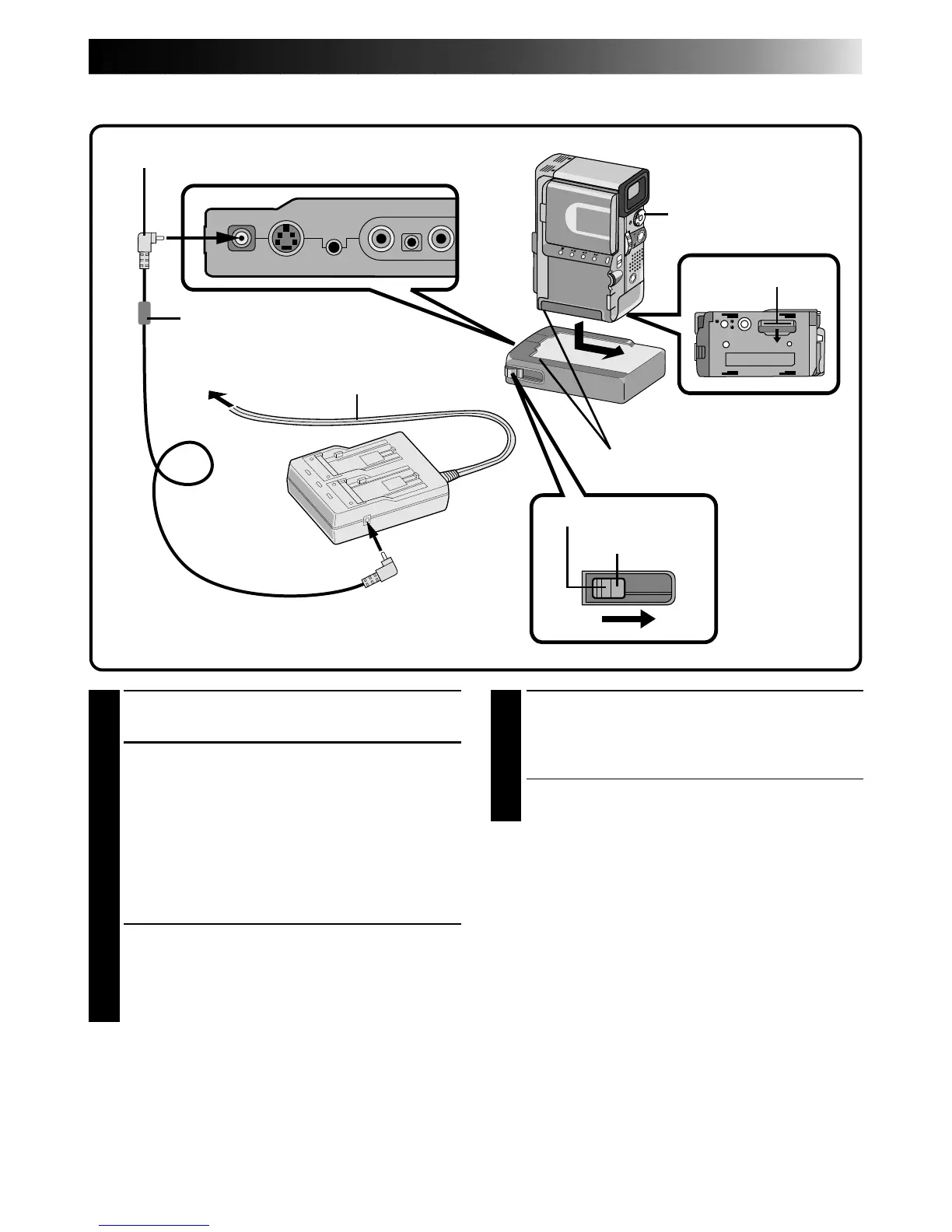

VCR/TV Connection (using Docking Station)
Core filter
Power cord
To DC
output jack
AC Power
Adapter/Charger
1
CONFIRM POWER-OFF STATUS
Make sure the camcorder’s power is off.
2
ATTACH AND LOCKS
First open the Multi connector cover (MULTI)
on the bottom of the camcorder. Align the
mark on the camcorder with the one on the
Docking Station and slide the camcorder in the
direction of the arrow. Slide the lock lever on
the Docking Station in the direction of the
arrow until it clicks. The camcorder and the
Docking Station are now securely attached.
•When removing the camcorder, press the
Release button and slide the lock lever in the
opposite direction of the arrow and detach
the camcorder in the opposite direction of
the arrow.
To DC input jack
To AC outlet
Power Dial
Lock lever
Release button
DC cord
Mark
Multi connector
To Next Page
