EN9
1
2
To battery
pack mount
To DC OUT
terminal
To AC outlet
AC Power
Adapter/Charger
AA-V50A or
AA-V50SH
DC cord
ATTENTION:
Before detaching the power source,
make sure that the camcorder’s power
is turned off. Failure to do so can result
in a camcorder malfunction.
INFORMATION:
VU-V856KIT is a set composed of the BN-V856U battery
pack and AA-V80EG AC Power Adapter/Charger.
Also read thoroughly the VU-V856KIT's instruction
manuals.
It is impossible to charge the BN-V856U battery pack
using the provided AC Power Adapter/Charger. Use the
optional AA-V80EG AC Power Adapter/Charger.
USING AC POWER
Use the AC Power Adapter/Charger (connect as shown in
the illustration).
NOTES:
●
The provided AC Power Adapter/Charger features
automatic voltage selection in the AC range from 110 V
to 240 V.
●
For other notes,
Z
pg. 8.

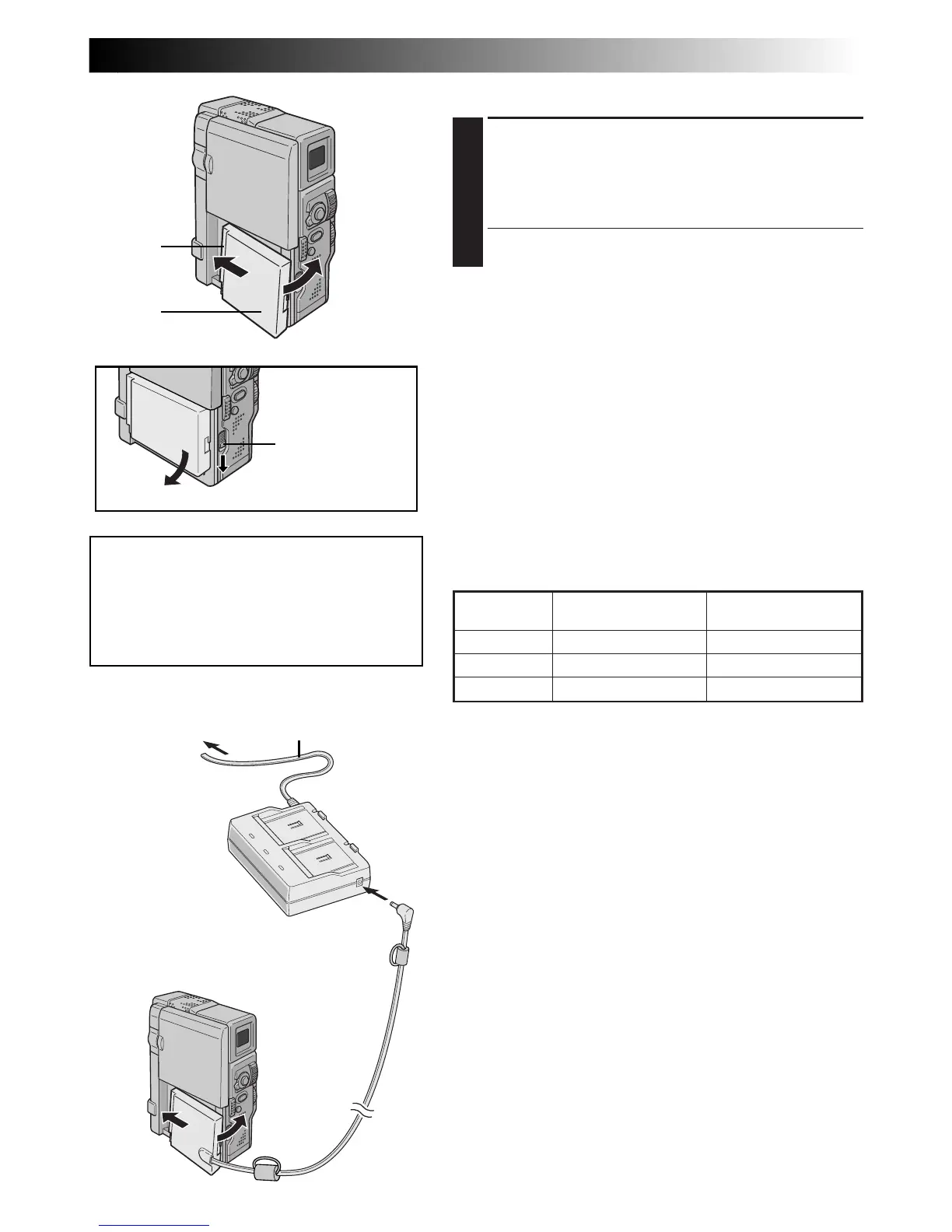

USING THE BATTERY PACK
1
ATTACH BATTERY PACK
Insert the terminal end 1 of the battery pack into the
battery pack mount, then firmly push the end 2 of
the battery pack in the direction of the arrow until it
locks into place as shown in the illustration.
•
If the battery pack is attached in the wrong position,
a malfunction may occur.
To Detach The Battery Pack . . .
.... while sliding down BATT. RELEASE, detach it.
NOTES:
●
Continuous shooting is possible when the temperature is
approx. 20˚C.
●
However, continuous shooting capability is reduced
significantly under the following conditions:
•
The temperature is below 10˚C.
•
Zoom or Record-Standby mode is engaged repeatedly.
•
The LCD monitor is used repeatedly.
Before extended use, it is recommended that you
prepare enough battery packs to cover 3 times the
planned shooting time.
Power cord
Approximate recording time
Battery pack
LCD monitor on/ LCD monitor off/
Viewfinder off Viewfinder on
BN-V507U 55 min. 65 min.
BN-V514U 115 min. 130 min.
BN-V856U 7 hrs. 30 min. 8 hrs. 30 min.
BATT. RELEASE
Switch
To Next Page
