PLAYBACK Basic Connections And Tape Dubbing

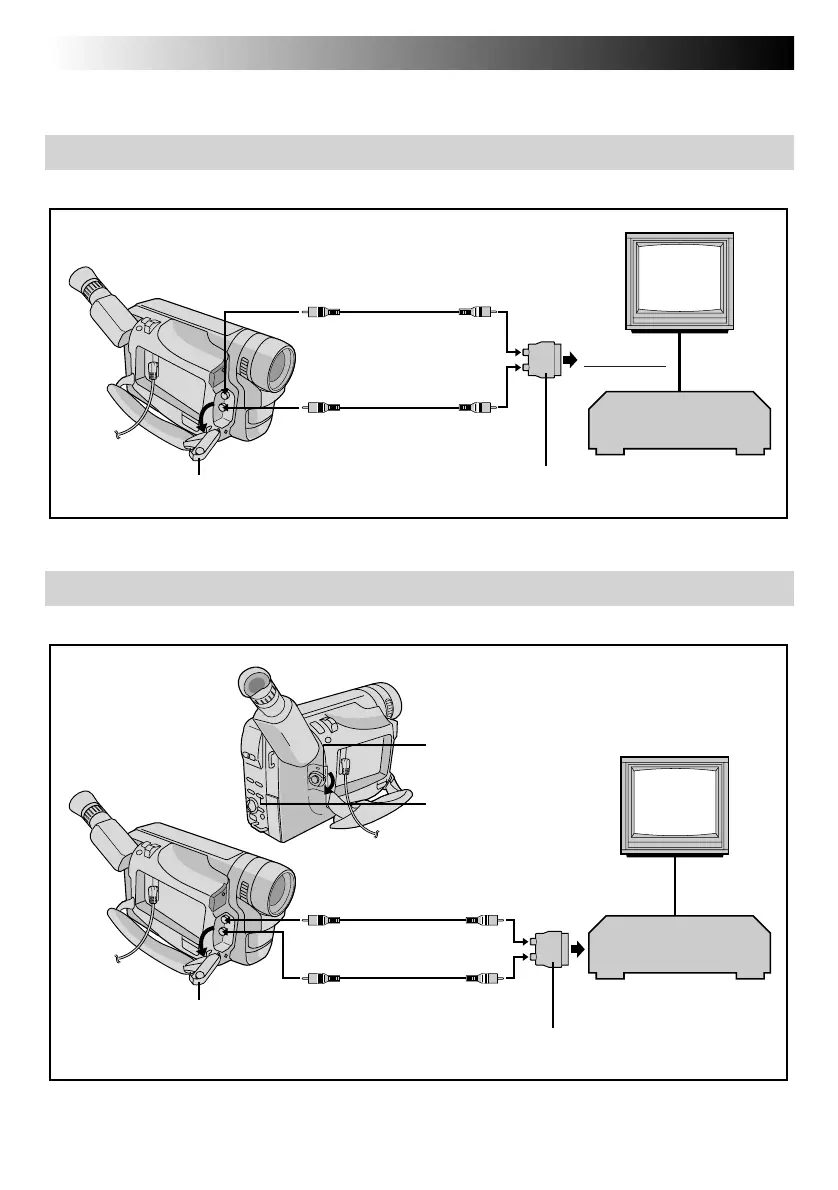

These are some basic types of connections. When making connections, refer also to your VCR and TV
instruction manuals.
A. Connection to a TV or VCR equipped with an S-VIDEO
Use optional Video and Audio cables.
Basic Connections
Video cable (optional)
If your TV/VCR has the SCART connector,
use the provided cable adapter.
Audio cable (optional)
To Video
Output
To Audio
Output
TV
VCR
Connector cover*
To TV or VCR
To AUDIO and
VIDEO IN connectors
A. Connection to a TV or VCR equipped with an S-VIDEO
Use optional Video and Audio cables.
Connection For Tape Dubbing
* When connecting the cables, open this cover.
Power Switch
PLAY/PAUSE
(
4 /6) Button
Connector cover*
Audio cable (optional)
To Video
Output
Video cable (optional)
VCR (Recording deck)
TV
To Audio
Output
To AUDIO and
VIDEO IN connectors
If your TV/VCR has the SCART connector,
use the provided cable adapter.
